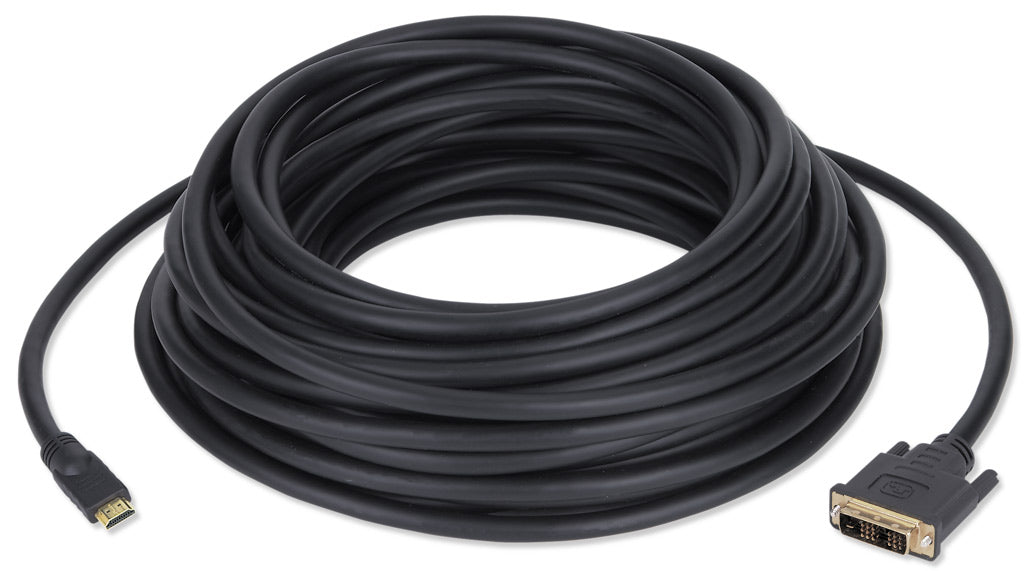

Extron HDMI DVI-D/50 (part number 26-614-06) — a 50 ft (15.2 m) HDMI male to single link DVI-D male cable, the longest length Extron offers in this series.

Fifty feet is the ceiling for the HDMI DVI-D Series, and the construction reflects it. Conductors and drain wire are 24 AWG tinned copper, the jacket measures 0.30 in across, and the minimum bend radius is 4.20 in — a figure worth confirming against the conduit before ordering. Both plug shells are larger than on the short lengths: 2.25 in for HDMI and 2.08 in for DVI-D, which matters when the termination point is a recessed panel. The cable still holds 4.95 Gbps and 1920x1200 at 60 Hz.

Key Capabilities

• Longest length in the HDMI DVI-D Series at 50 ft (15.2 m).
• 24 AWG tinned copper conductors and drain wire construction.
• Data rate to 4.95 Gbps; maximum resolution 1920x1200 at 60 Hz.
• Aluminium/Mylar foil and tinned copper braid shielding under PVC.
• 0.30 in (7.6 mm) outer diameter; 4.20 in (107 mm) minimum bend radius.
• Gold-plated contacts on both connectors.
• Limited Lifetime Performance warranty from Extron.

Where It Is Used

Reserved for the longest direct copper runs a single link DVI signal will tolerate: large lecture theatres, sanctuaries, operating suites and command centres where an HDMI source at one end of the room drives a DVI display at the other without an intervening extender.

Specifications at a Glance

• Length: 50 ft (15.2 m)
• Connector type: 1 male DVI-D single link to 1 male HDMI single link
• Pair impedance: 100 ohms plus or minus 10 ohms; voltage 30 V
• Skew: intrapair 151 ps or less per 5 m; interpair 2.42 ns or less per 5 m
• Regulatory: cable UL Listed as type CM, CSA FT-1, UL CL2

Also referenced as Extron HDMIDVID50, HDMI-DVI-D-50, part number 2661406.
