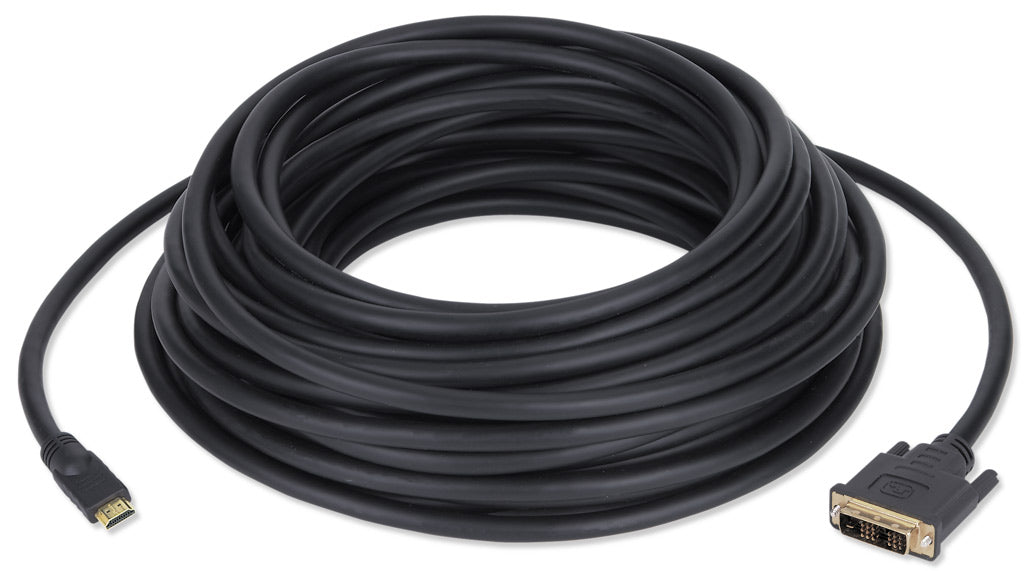

Extron HDMI DVI-D/35 (part number 26-614-05) — a 35 ft (10.6 m) HDMI male to single link DVI-D male cable in the series' 24 AWG long-run build.

At 35 feet the run usually goes into a wall or above a ceiling, so the cable has to survive a pull and then sit undisturbed for years. Extron's answer is thicker copper: 24 AWG conductors and drain wire, aluminium/Mylar foil with an overall tinned copper braid, and a PVC jacket 0.30 in across. The larger 4.20 in bend radius is a pathway planning number worth checking before the conduit is chosen. Electrically the cable still carries 4.95 Gbps and 1920x1200 at 60 Hz on 100 ohm pairs.

Key Capabilities

• Single link HDMI male to DVI-D male, DVI 1.0, gold-plated contacts.
• 24 AWG tinned copper conductors and drain wire.
• Supports up to 4.95 Gbps and 1920x1200 at 60 Hz.
• 0.30 in (7.6 mm) outer diameter and 4.20 in (107 mm) bend radius.
• Intrapair skew 151 ps or less per 5 m; interpair 2.42 ns or less per 5 m.
• UL Listed as type CM, CSA FT-1, UL CL2.
• Limited Lifetime Performance warranty.

Where It Is Used

Used for in-wall and above-ceiling routes in lecture halls, auditoriums, houses of worship and hospital procedure rooms where a DVI display sits across the room from an HDMI source and a repull would be expensive.

Specifications at a Glance

• Length: 35 ft (10.6 m)
• HDMI plug: 2.25 in L x 0.80 in W x 0.43 in thick
• DVI-D plug: 2.08 in L x 1.55 in W x 0.61 in thick
• Temperature rating: -25 degrees C minimum, 75 degrees C maximum
• Attenuation: under 10 dB per 10 m at 0.825 GHz

Also referenced as Extron HDMIDVID35, HDMI-DVI-D-35, part number 2661405.
