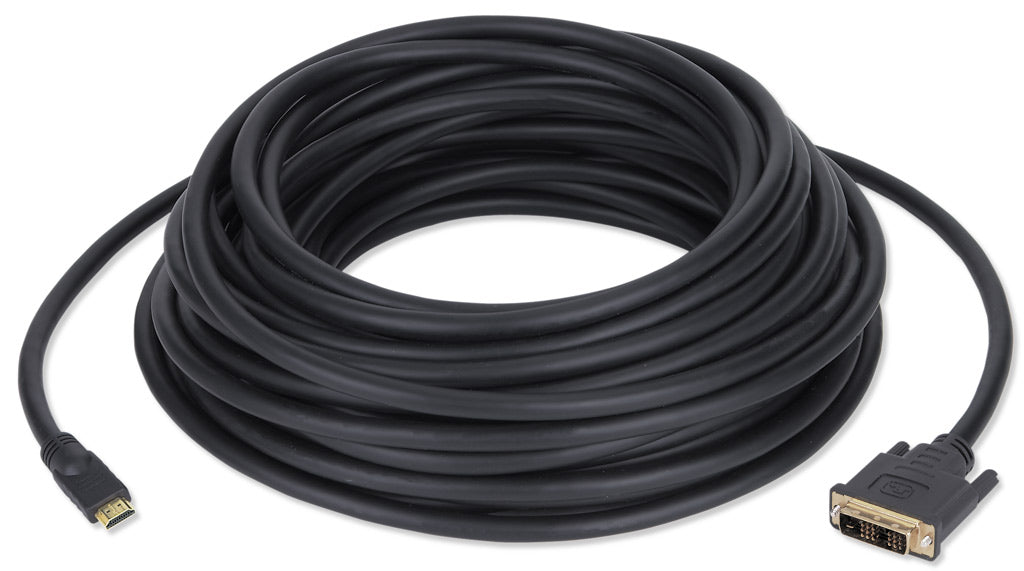

Extron HDMI DVI-D/3 (part number 26-614-01) — a 3 ft (90 cm) HDMI male to single link DVI-D male cable from the Extron HDMI DVI-D Series.

Adapters stacked on adapters are how signal problems start. This assembly puts an HDMI male plug on one end and a DVI-D single link male plug on the other, so a DVI display and an HDMI source connect with one part and no dongle. At three feet the cable uses 28 AWG tinned copper conductors with a drain wire, aluminium/Mylar foil plus a tinned copper braid, and a PVC jacket only 0.22 in across, which keeps it flexible enough to dress neatly behind a monitor. Extron rates the assembly for 4.95 Gbps and resolutions to 1920x1200 at 60 Hz.

Key Capabilities

• HDMI male to DVI-D single link male, gold-plated contacts throughout.
• Supports up to 4.95 Gbps and 1920x1200 at 60 Hz.
• 28 AWG tinned copper conductors and drain wire at this length.
• Aluminium/Mylar foil plus tinned copper braid shielding under a PVC jacket.
• 100 ohm plus or minus 10 ohm pair impedance; attenuation under 10 dB per 10 m.
• Tight 0.80 in (20 mm) bend radius on a 0.22 in outer diameter cable.
• Limited Lifetime Performance warranty from Extron.

Where It Is Used

Short HDMI to DVI links are common behind medical grade displays, broadcast reference monitors, rack-mounted recorders and desktop workstations where the source and the panel differ in connector type but sit only a metre apart.

Specifications at a Glance

• Length: 3 ft (90 cm)
• HDMI plug: 1.76 in L x 0.78 in W x 0.44 in thick, length includes plug
• DVI-D plug: 1.92 in L x 1.55 in W x 0.60 in thick, length includes plug
• Temperature rating: -25 degrees C minimum, 75 degrees C maximum
• Regulatory: cable UL Listed as type CM, CSA FT-1, UL CL2

Also referenced as Extron HDMIDVID3, HDMI-DVI-D-3, part number 2661401.
