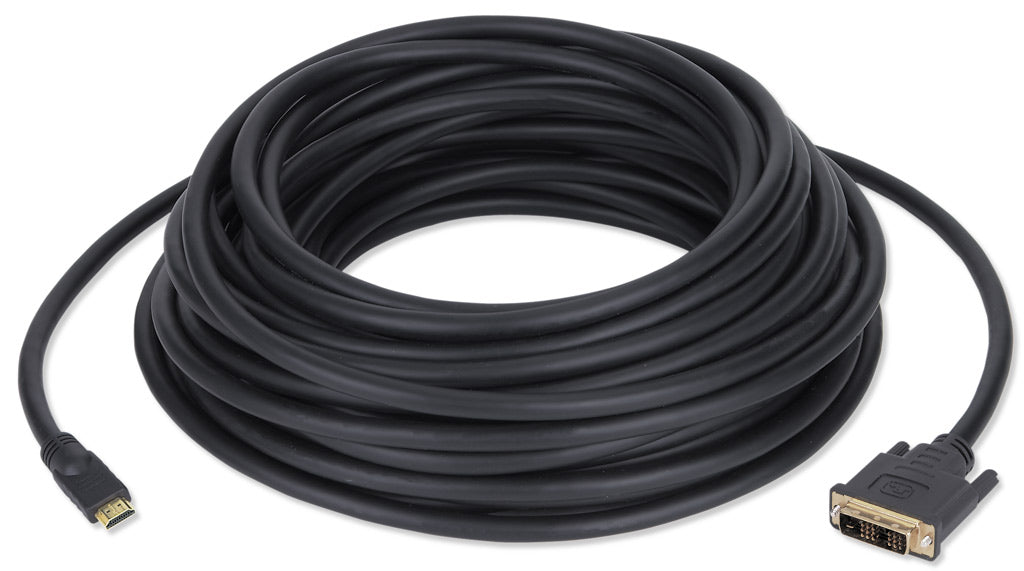

Extron HDMI DVI-D/25 (part number 26-614-04) — a 25 ft (7.6 m) HDMI male to single link DVI-D male cable built with the series' heavier long-run construction.

From 25 feet upward Extron changes the recipe. Conductors and drain wire step up from 28 AWG to 24 AWG, the jacket grows to 0.30 in across, and the minimum bend radius increases to 4.20 in. The connector shells are correspondingly larger. All of that is in service of holding 4.95 Gbps and 1920x1200 at 60 Hz over a distance where thinner cable would start losing edges. Shielding stays the same: aluminium/Mylar foil plus a tinned copper braid, under PVC.

Key Capabilities

• 24 AWG tinned copper conductors and drain wire for the longer run.
• Supports 4.95 Gbps and resolutions to 1920x1200 at 60 Hz.
• Single link HDMI male to DVI-D male with gold-plated contacts.
• 0.30 in (7.6 mm) outer diameter; 4.20 in (107 mm) bend radius.
• Attenuation under 10 dB per 10 m at 0.825 GHz.
• Rated from -25 to 75 degrees C.
• Limited Lifetime Performance warranty.

Where It Is Used

Twenty-five feet reaches a ceiling projector from a rack, a video wall from a wall-mounted player, or a lectern from an adjacent equipment closet in classrooms, boardrooms, operating theatres and broadcast facilities.

Specifications at a Glance

• Length: 25 ft (7.6 m)
• HDMI plug: 2.25 in L x 0.80 in W x 0.43 in thick, length includes plug
• DVI-D plug: 2.08 in L x 1.55 in W x 0.61 in thick, length includes plug
• Pair impedance: 100 ohms plus or minus 10 ohms; voltage 30 V
• Regulatory: cable UL Listed as type CM, CSA FT-1, UL CL2

Also referenced as Extron HDMIDVID25, HDMI-DVI-D-25, part number 2661404.
