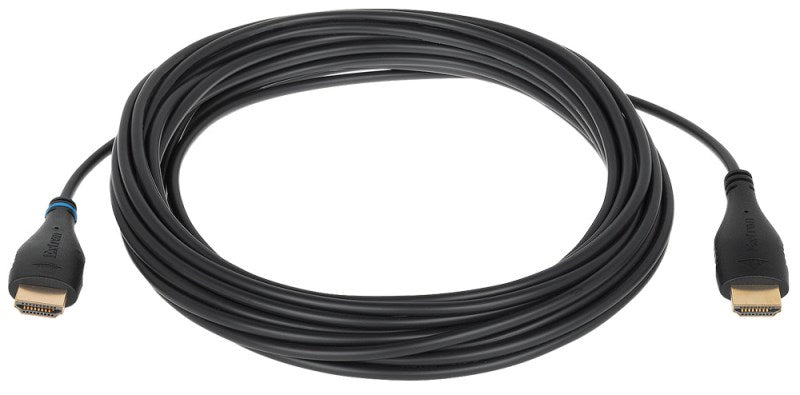

Extron HD Pro P/35 (part number 26-726-35) - a 35 ft plenum-rated HDMI cable that holds 4K/60 together on runs where ordinary copper begins to struggle.

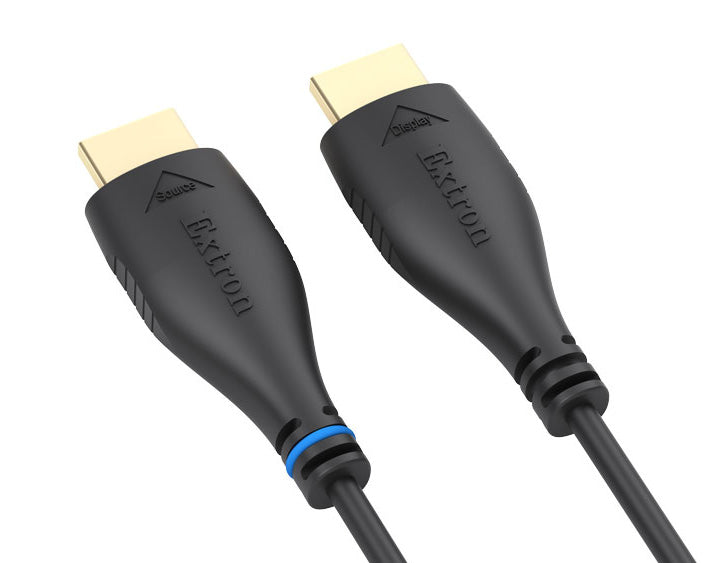

Inside the 4 mm jacket, multimode glass fiber transports the high-speed video lanes and tinned 28 AWG copper carries the control conductors. Because the optical portion ignores electromagnetic and radio-frequency noise, this 35 ft (10.6 m) length can share a pathway with lighting circuits, motor loads or network trunks and still arrive clean. The cable runs in one direction only: a blue ring at the source connector neck and molded end markings tell the installer which plug faces the player.

Key Capabilities

• Meets Premium High Speed HDMI Cable performance criteria at 4K/60 verified
• 18.0 Gbps of headroom, or 6 Gbps for each color channel
• HDMI 2.0b, HDCP 2.3 and HDR support with 8, 10 or 12-bit color depth
• Strong EMI and RFI immunity thanks to the fiber video path
• Source-powered operation removes any need for a local outlet at midspan
• Color-coded, labeled ends speed up termination during a rough-in

Where It Is Used

Thirty-five feet covers a mid-size training room, a divisible meeting space, or a lectern-to-ceiling-projector throw in a lecture hall. Integrators also use this length between a signage player closet and a lobby video wall, and in surgical or imaging suites where the source rack sits outside the sterile field.

Specifications at a Glance

• Cable length: 35 ft (10.6 m)
• Resolution: up to 4K at 60 Hz (4096x2160) and UHD at 60 Hz (3840x2160)
• Frame rates of 24, 25, 30 or 60 fps with 4:4:4, 4:2:2 or 4:2:0 chroma
• Minimum bend radius 0.79 in (20 mm) on a 0.16 in (4 mm) jacket
• Connector body 2.40 in L x 0.84 in W x 0.49 in thick; three-year warranty

Frequently asked questions about the Extron HD Pro P/35 35ft Plenum Optical HDMI Cable

Also referenced as Extron HDProP/35, HD-Pro-P-35, part number 2672635.
