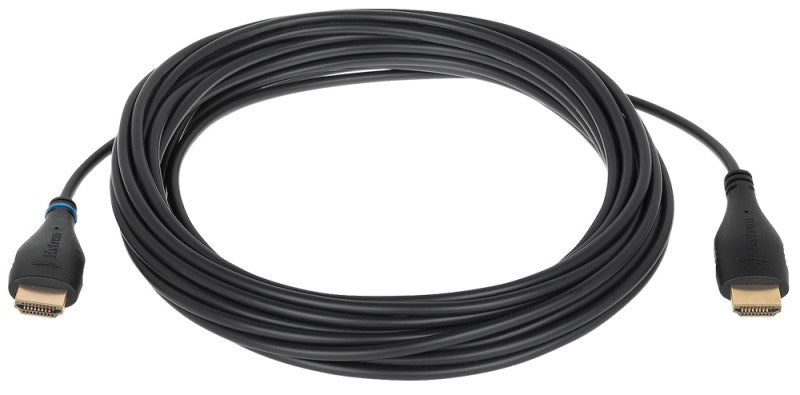

Extron HD Pro P/175 (part number 26-726-175) - a 175 ft active optical HDMI cable slim enough to route where a bulky assembly will not fit.

The whole cable measures 0.16 in (4 mm) in diameter, which matters when 175 ft (53.2 m) has to share a raceway with everything else in the building. Slimness does not cost performance here: the fiber video path carries a full 18 Gbps, so UHD and 4K sources arrive at 60 Hz with 4:4:4 chroma and up to 12-bit color. The connector shell is 2.40 in long by 0.84 in wide and 0.49 in thick, so it clears most wall-plate and floor-box openings.

Key Capabilities

• 175 ft of reach in a single assembly, no extender pair to configure
• 4096x2160 and 3840x2160 at 60 Hz, 4:4:4 chroma, 8 or 12-bit depth
• HDR, HDCP 2.3, EDID and CEC signaling handled transparently
• PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio
• Plenum CMP jacket meeting CE, UL-CMP, RoHS and WEEE requirements
• Powered by the HDMI source; no injector or wall wart in the pathway

Where It Is Used

This length covers stadium and arena installations, airport and transit signage networks, large civic chambers and performing arts venues. Integrators also reach for it when a projector booth sits at the rear of a deep auditorium and the source equipment lives in a basement rack room.

Specifications at a Glance

• Cable length: 175 ft (53.2 m)
• Cable outer diameter: 0.16 in (4 mm)

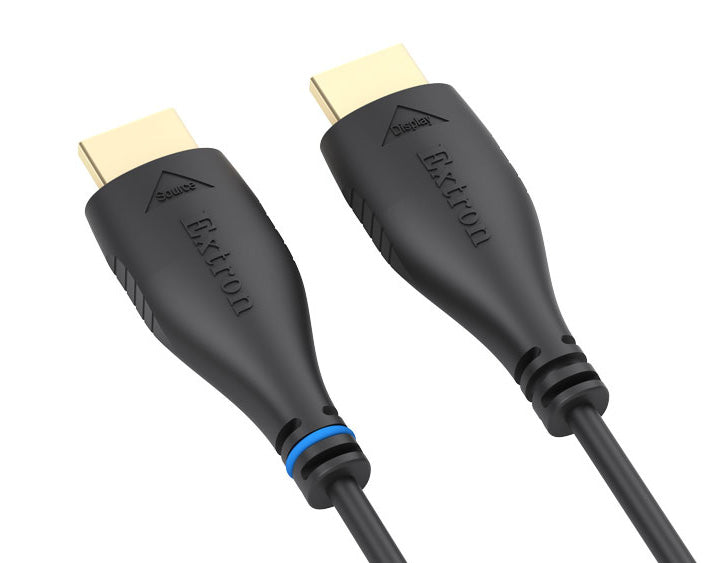

• Connector dimensions: 2.40 in L x 0.84 in W x 0.49 in thick
• Standards: up to HDMI 2.0b with HDCP 2.3
• Warranty: three years from Extron

Frequently asked questions about the Extron HD Pro P/175 175ft Plenum Optical HDMI Cable

Also referenced as Extron HDProP/175, HD-Pro-P-175, part number 26726175.
