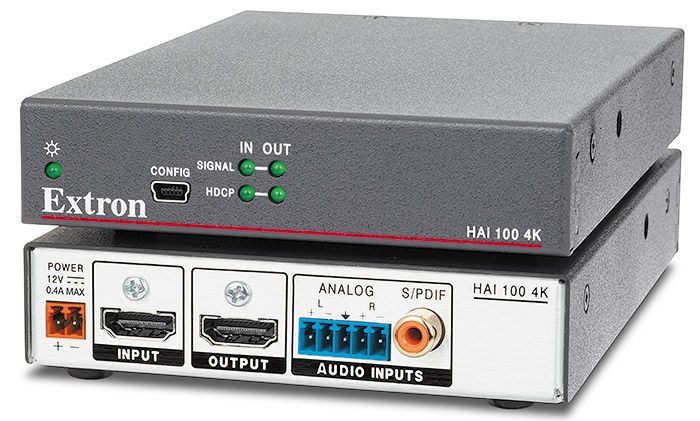

Manufacturer: Extron | Model: HAI 100 4K | Part number: 60-1364-01 (also written 60136401)

The Extron HAI 100 4K (60-1364-01) is a new HDMI audio embedder available through Ampronix that inserts analog stereo or S/PDIF audio into an HDMI stream. One HDMI input passes through with the selected audio embedded onto the HDMI output. Adjustable gain on the analog input accommodates different source levels, and EDID Minder keeps EDID communication stable. HDCP compliant at data rates up to 10.2 Gbps, compatible with video resolutions up to 4K.

Key capabilities

• Embeds analog stereo or S/PDIF digital audio into an HDMI output signal
• Adjustable analog audio input gain for flexible level matching
• HDMI input passes video through with embedded audio on the HDMI output
• EDID Minder maintains EDID communication between source and display
• HDCP compliant, supports data rates up to 10.2 Gbps, resolutions up to 4K

Where it is used

Installations where an analog or S/PDIF audio source needs to ride alongside an HDMI video signal to a display or recorder without a separate audio run.

Specifications at a glance

• Inputs: 1 HDMI + analog stereo + S/PDIF; Output: 1 HDMI with embedded audio
• Max data rate: 10.2 Gbps; up to 4K resolution
• Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions

• Is the Extron HAI 100 4K 60-1364-01 available new or refurbished? - Ampronix stocks the HAI 100 4K (60-1364-01) as a new unit through its authorized Extron distribution agreement.
• Can the HAI 100 4K accept both analog and S/PDIF audio simultaneously? - The 60-1364-01 embeds either analog stereo or S/PDIF into the HDMI output; the source type is selectable, allowing either input to be used depending on what the audio source provides.
• Does Ampronix offer support for the Extron HAI 100 4K? - Yes. Ampronix provides repair, exchange, and replacement services for the HAI 100 4K and the broader Extron audio processing line.

Ampronix is an authorized Extron distributor. Need support for your Extron HAI 100 4K? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron line.

Also referenced as Extron HAI100 4K, HAI-100-4K, part number 60136401.
