Extron HAE 100 4K HDMI Audio De-Embedder
Extron HAE 100 4K HDMI Audio De-Embedder
- • Extron HAE 100 4K HDMI audio de-embedder
- • Extracts analog stereo and S/PDIF audio from HDMI
- • HDCP compliant, up to 10.2 Gbps and 4K
- • Sales, replacement and exchange
- • Part# 60-1542-01 / 60154201
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron; Model: HAE 100 4K; Part number: 60-1542-01 (also written 60154201)

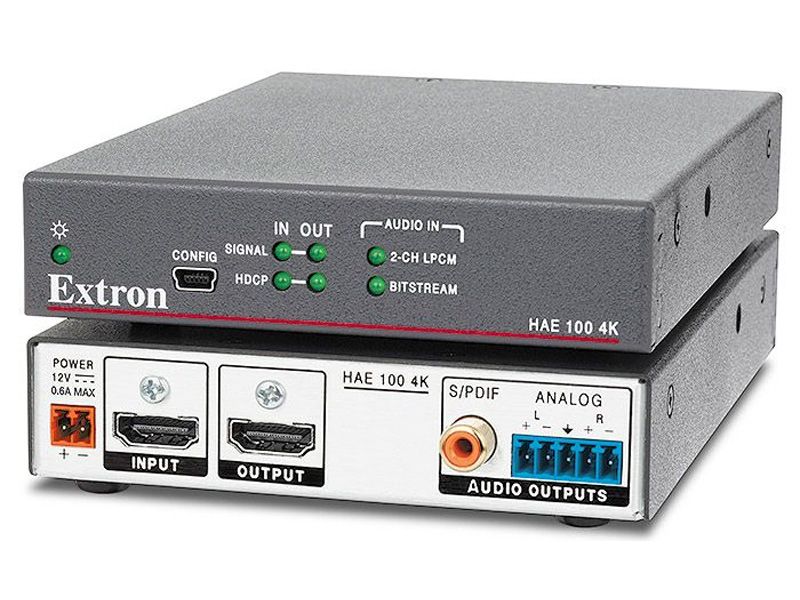

The Extron HAE 100 4K (60-1542-01) is a new HDMI audio de-embedder available through Ampronix that extracts two-channel stereo or digital multi-channel audio from an HDMI signal, including 4K sources. It provides both an analog stereo output and an S/PDIF digital output, while passing the HDMI video through with a buffered output. EDID Minder maintains continuous EDID communication so the source powers up reliably.
Key capabilities
- Extracts two-channel analog stereo and S/PDIF digital audio from HDMI
- S/PDIF output supports two-channel and digital multi-channel formats
- Buffered HDMI video output passes video unmodified to the display
- EDID Minder maintains EDID communication between source and display
- HDCP compliant, supports data rates up to 10.2 Gbps, resolutions up to 4K
Where it is used
Conference rooms, lecture halls, and production setups where HDMI-embedded audio needs to be extracted to a DSP, amplifier, or recording device without interrupting the video path.
Specifications at a glance
- Input: 1 HDMI; Output: 1 HDMI buffered + analog stereo + S/PDIF
- Max data rate: 10.2 Gbps; up to 4K resolution
- Warranty: 3-year product, 7-year Everlast power supply
Frequently asked questions about the Extron HAE 100 4K HDMI Audio De-Embedder
Is the Extron HAE 100 4K 60-1542-01 available new or refurbished?
Ampronix stocks the HAE 100 4K (60-1542-01) as a new unit through its authorized Extron distribution agreement.
Does the HAE 100 4K pass video through to the display unmodified?
Yes. The 60-1542-01 includes a buffered HDMI loop-through output that passes the original video signal to the display without scaling or modification, while the audio is extracted separately.
Does Ampronix offer replacement and exchange for the Extron HAE 100 4K?
Yes. Ampronix provides sales, replacement and exchange for the HAE 100 4K and the broader Extron audio processing line.
Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron HAE 100 4K? Ampronix provides sales, replacement and exchange for this product and the broader Extron line.
Also referenced as Extron HAE100 4K, HAE-100-4K, part number 60154201.
Related: Extron products, Video Solutions.
