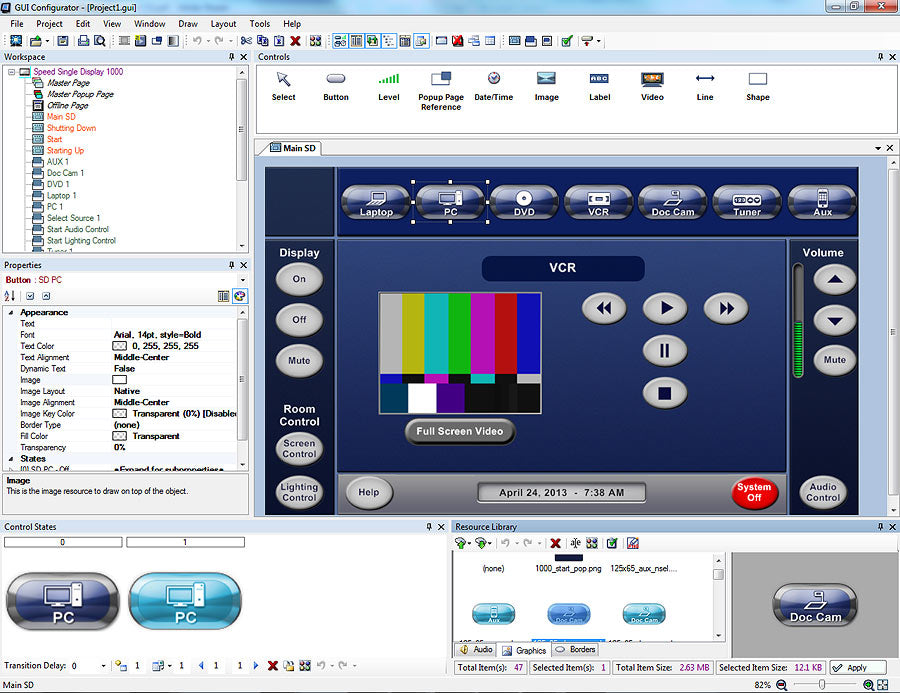

Extron GUI Configurator (part number 79-535-01) — free design software for Extron TouchLink touchpanel user interfaces.

Building a touchpanel GUI from a blank canvas usually requires graphic design skill an AV integrator may not have on staff. GUI Configurator solves that by starting most projects from a ready-made, fully customizable template rather than a blank screen, with input source selection, display control, and environmental settings already laid out for common room types. Integrators who do want a custom layout can still build one from scratch inside the same tool.

Key Capabilities

• Designs and maintains Extron TouchLink touchpanel user interfaces
• Includes ready-to-use, fully customizable design templates matched to common AV applications
• Supports building a layout from scratch without graphic design experience
• Templates often pre-place input source, display control, and environmental controls
• Each template ships with complete, detailed application documentation

Where It Is Used

Used by integrators programming TouchLink touchpanel interfaces for classrooms, boardrooms, and other AV rooms where a working GUI needs to be produced quickly from a proven template.

Specifications at a Glance

• Target hardware: Extron TouchLink touchpanels
• Design method: Templates or from-scratch layout
• Documentation: Included per template
• Price: Free

Also referenced as ExtronGUIConfigurator, Extron-GUI-Configurator, part number 7953501.
