Manufacturer: Extron | Model: FOX T USB Extender Plus MM | Part number: 60-1474-11 (also written 60147411)

The Extron FOX T USB Extender Plus MM (60-1474-11) is a new multimode fiber transmitter available through Ampronix for unrestricted USB extension. It connects to the USB host and forwards the full range of USB signals over multimode fiber at distances up to 2 km on OM3/OM4, with no device class restriction. Pairs with the FOX R USB Extender Plus MM (60-1474-21). Singlemode version: 60-1474-12.

Key capabilities

• No device class restriction: full USB peripheral range supported
• Multimode fiber transmitter, 850 nm, up to 2 km on OM3/OM4 laser-optimized fiber
• Peripheral emulation for reliable host boot without a locally attached keyboard

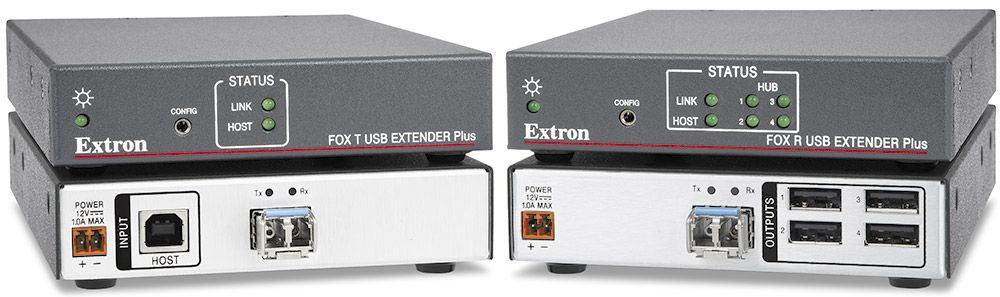

• Pairs with FOX R USB Extender Plus MM (60-1474-21)
• Quarter-rack metal enclosure, convection cooled

Where it is used

Lecture halls, boardrooms, and campus AV systems where the full range of USB devices needs to reach a rack-mounted host over multimode fiber.

Specifications at a glance

• Fiber: 2 LC connectors, multimode, 850 nm, up to 2 km on OM3/OM4
• Host connector: USB Type B female
• Power: external 12 VDC supply or PoE
• Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack

Frequently asked questions

• Is the Extron FOX T USB Extender Plus MM 60-1474-11 available new or refurbished? - Ampronix stocks the FOX T USB Extender Plus MM (60-1474-11) as a new unit through its authorized Extron distribution agreement.
• What receiver does the FOX T USB Extender Plus MM pair with? - The 60-1474-11 pairs with the FOX R USB Extender Plus MM (60-1474-21) at the peripheral end for multimode fiber unrestricted USB installations.
• Does Ampronix offer support for the Extron FOX T USB Extender Plus MM? - Yes. Ampronix provides repair, exchange, and replacement services for the FOX T USB Extender Plus MM and the broader Extron FOX USB extender line.

Ampronix is an authorized Extron distributor. Need support for your Extron FOX T USB Extender Plus MM? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron FOX line.

Also referenced as Extron FOXTUSBExtenderPlusMM, FOX-T-USB-Extender-Plus-MM, part number 60147411.
