Manufacturer: Extron | Model: FOX T USB Extender Plus HID SM | Part number: 60-1526-12 (also written 60152612)

The Extron FOX T USB Extender Plus HID SM (60-1526-12) is a new singlemode fiber transmitter available through Ampronix for HID-restricted USB extension. It connects to the USB host, forwards HID-class signals only over singlemode fiber at distances up to 30 km, blocking all non-HID devices at the source. Pairs with the FOX R USB Extender Plus HID SM (60-1526-22). Multimode version: 60-1526-11.

Key capabilities

• HID device class filtering at the transmitter: blocks non-HID devices from the link
• Singlemode fiber transmitter, 1310 nm, extends to 30 km
• Peripheral emulation for reliable host boot without a locally attached keyboard

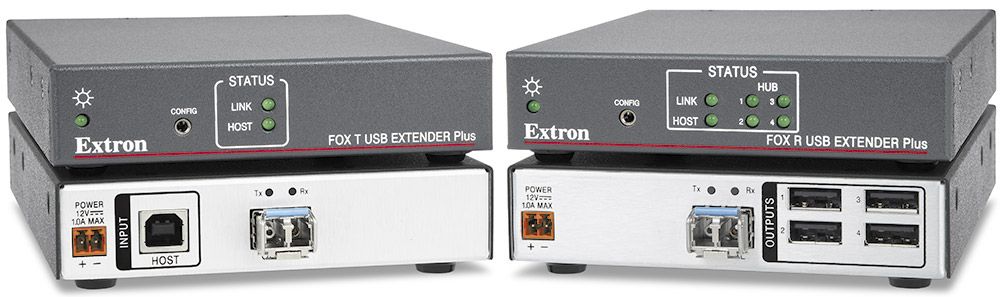

• Pairs with FOX R USB Extender Plus HID SM (60-1526-22)
• Quarter-rack metal enclosure, convection cooled

Where it is used

Government, financial, and healthcare environments requiring HID-only USB across long-distance singlemode fiber runs between buildings.

Specifications at a glance

• Fiber: 2 LC connectors, singlemode, 1310 nm, up to 30 km
• Host connector: USB Type B female
• Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack

Frequently asked questions

• Is the Extron FOX T USB Extender Plus HID SM 60-1526-12 available new or refurbished? - Ampronix stocks the FOX T USB Extender Plus HID SM (60-1526-12) as a new unit through its authorized Extron distribution agreement.
• What receiver pairs with the singlemode HID transmitter 60-1526-12? - The 60-1526-12 pairs with the FOX R USB Extender Plus HID SM (60-1526-22) at the peripheral end for singlemode fiber HID-restricted USB installations.
• Does Ampronix offer support for the Extron FOX T USB Extender Plus HID SM? - Yes. Ampronix provides repair, exchange, and replacement services for the FOX T USB Extender Plus HID SM and the broader Extron FOX USB extender line.

Ampronix is an authorized Extron distributor. Need support for your Extron FOX T USB Extender Plus HID SM? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron FOX line.

Also referenced as Extron FOXTUSBExtenderPlusHIDSM, FOX-T-USB-Extender-Plus-HID-SM, part number 60152612.
