Manufacturer: Extron | Model: FOX R USB Extender Plus SM | Part number: 60-1474-22 (also written 60147422)

The Extron FOX R USB Extender Plus SM (60-1474-22) is a new singlemode fiber receiver available through Ampronix for unrestricted USB extension at distances up to 30 km. It receives signals from the matching FOX T USB Extender Plus SM transmitter with no device class restriction. Multimode version: 60-1474-21.

Key capabilities

• No device class filtering: full USB peripheral range supported
• Singlemode fiber, 1310 nm, up to 30 km
• Built-in 4-port USB 2.0 hub, 500 mA shared

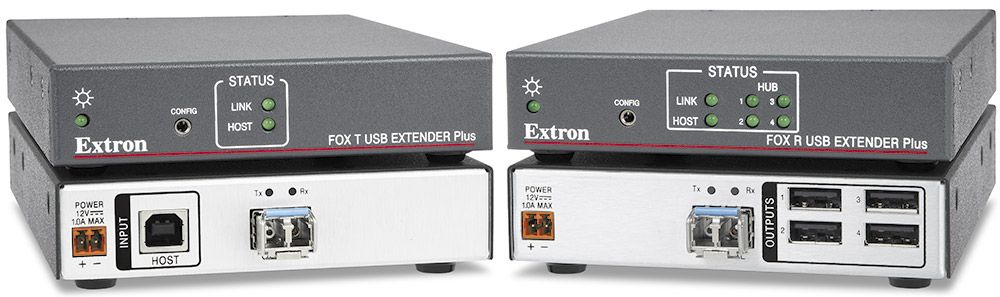

• Pairs with FOX T USB Extender Plus SM (60-1474-12)
• Quarter-rack metal enclosure, convection cooled

Where it is used

Multi-building campuses and long-haul installations where unrestricted USB devices need to reach a host PC across singlemode fiber runs exceeding multimode capability.

Specifications at a glance

• Fiber: 2 LC connectors, singlemode, 1310 nm, up to 30 km
• USB ports: 4 x USB 2.0 Type A female, 500 mA shared
• Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack

Frequently asked questions

• Is the Extron FOX R USB Extender Plus SM 60-1474-22 available new or refurbished? - Ampronix stocks the FOX R USB Extender Plus SM (60-1474-22) as a new unit through its authorized Extron distribution agreement.
• What is the difference between the unrestricted SM and the HID SM receiver? - The FOX R USB Extender Plus SM (60-1474-22) has no device class restriction; the FOX R USB Extender Plus HID SM (60-1526-22) limits the link to keyboards, mice, and smart card readers only.
• Does Ampronix offer support for the Extron FOX R USB Extender Plus SM? - Yes. Ampronix provides repair, exchange, and replacement services for the FOX R USB Extender Plus SM and the broader Extron FOX USB extender line.

Ampronix is an authorized Extron distributor. Need support for your Extron FOX R USB Extender Plus SM? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron FOX line.

Also referenced as Extron FOXRUSBExtenderPlusSM, FOX-R-USB-Extender-Plus-SM, part number 60147422.
