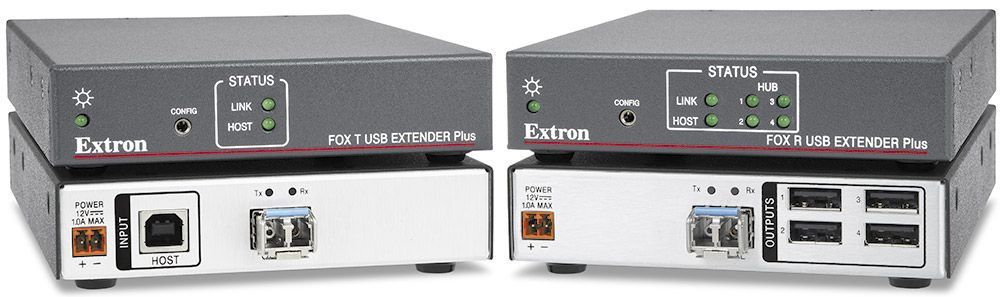

Manufacturer: Extron | Model: FOX R USB Extender Plus MM | Part number: 60-1474-21 (also written 60147421)

The Extron FOX R USB Extender Plus MM (60-1474-21) is a new multimode fiber receiver available through Ampronix for unrestricted USB extension. It receives USB signals from the matching transmitter over multimode fiber at up to 2 km on OM3/OM4 and routes them to connected peripherals through a built-in four-port hub with no device class restriction. Singlemode version: 60-1474-22.

Key capabilities

• No device class filtering: full USB peripheral range supported
• Multimode fiber, 850 nm, up to 2 km on OM3/OM4 laser-optimized fiber
• Built-in 4-port USB 2.0 hub, 500 mA shared
• Pairs with FOX T USB Extender Plus MM (60-1474-11)
• Quarter-rack metal enclosure, convection cooled

Where it is used

Lecture halls, boardrooms, and equipment rooms where the full range of USB peripherals needs to reach a host PC across a multimode fiber run on campus.

Specifications at a glance

• Fiber: 2 LC connectors, multimode, 850 nm, up to 2 km on OM3/OM4
• USB ports: 4 x USB 2.0 Type A female, 500 mA shared
• Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack

Frequently asked questions

• Is the Extron FOX R USB Extender Plus MM 60-1474-21 available new or refurbished? - Ampronix stocks the FOX R USB Extender Plus MM (60-1474-21) as a new unit through its authorized Extron distribution agreement.
• What USB devices are supported by the unrestricted FOX R USB Extender Plus MM? - The 60-1474-21 has no device class restriction, supporting keyboards, mice, cameras, mass storage, headsets, and other USB 2.0 peripherals across the fiber link.
• Does Ampronix offer support for the Extron FOX R USB Extender Plus MM? - Yes. Ampronix provides repair, exchange, and replacement services for the FOX R USB Extender Plus MM and the broader Extron FOX USB extender line.

Ampronix is an authorized Extron distributor. Need support for your Extron FOX R USB Extender Plus MM? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron FOX line.

Also referenced as Extron FOXRUSBExtenderPlusMM, FOX-R-USB-Extender-Plus-MM, part number 60147421.
