Manufacturer: Extron | Model: FOX II T DP 4K MM | Part number: 60-1462-11 (also written 60146211)

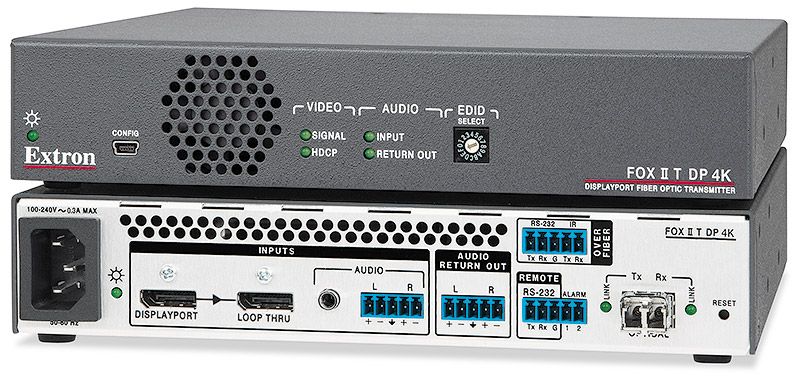

The Extron FOX II T DP 4K MM (60-1462-11) is a new multimode fiber transmitter available through Ampronix that sends DisplayPort video at up to 4096x2160, multi-channel audio, RS-232, and IR control to a compatible receiver over multimode fiber. Pairs with the FOX II R DP 4K MM (60-1462-21) receiver. Singlemode version: 60-1462-12.

Key capabilities

• DisplayPort 4K transmitter: up to 4096x2160 over multimode fiber
• Carries DisplayPort, multi-channel audio, RS-232, and IR on fiber
• EDID Minder and Key Minder for EDID and HDCP management
• Audio embedding, adjustable gain/attenuation, internal test pattern
• Singlemode version: FOX II T DP 4K SM (60-1462-12)

Where it is used

Lecture theaters and event venues where a DisplayPort 4K source needs to reach a remote display or FOX Matrix switcher over multimode fiber.

Specifications at a glance

• Max resolution: 4096x2160
• Fiber: multimode
• Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions

• Is the Extron FOX II T DP 4K MM 60-1462-11 available new or refurbished? - Ampronix stocks the FOX II T DP 4K MM (60-1462-11) as a new unit through its authorized Extron distribution agreement.
• What receiver does the FOX II T DP 4K MM pair with? - The 60-1462-11 pairs with the FOX II R DP 4K MM (60-1462-21) at the display end; for singlemode fiber runs, use the FOX II T DP 4K SM (60-1462-12) with the FOX II R DP 4K SM (60-1462-22).
• Does Ampronix offer support for the Extron FOX II T DP 4K MM? - Yes. Ampronix provides repair, exchange, and replacement services for the FOX II T DP 4K MM and the broader Extron FOX fiber extender line.

Ampronix is an authorized Extron distributor. Need support for your Extron FOX II T DP 4K MM? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron FOX line.

Also referenced as Extron FOXIITdp4KMM, FOX-II-T-DP-4K-MM, part number 60146211.
