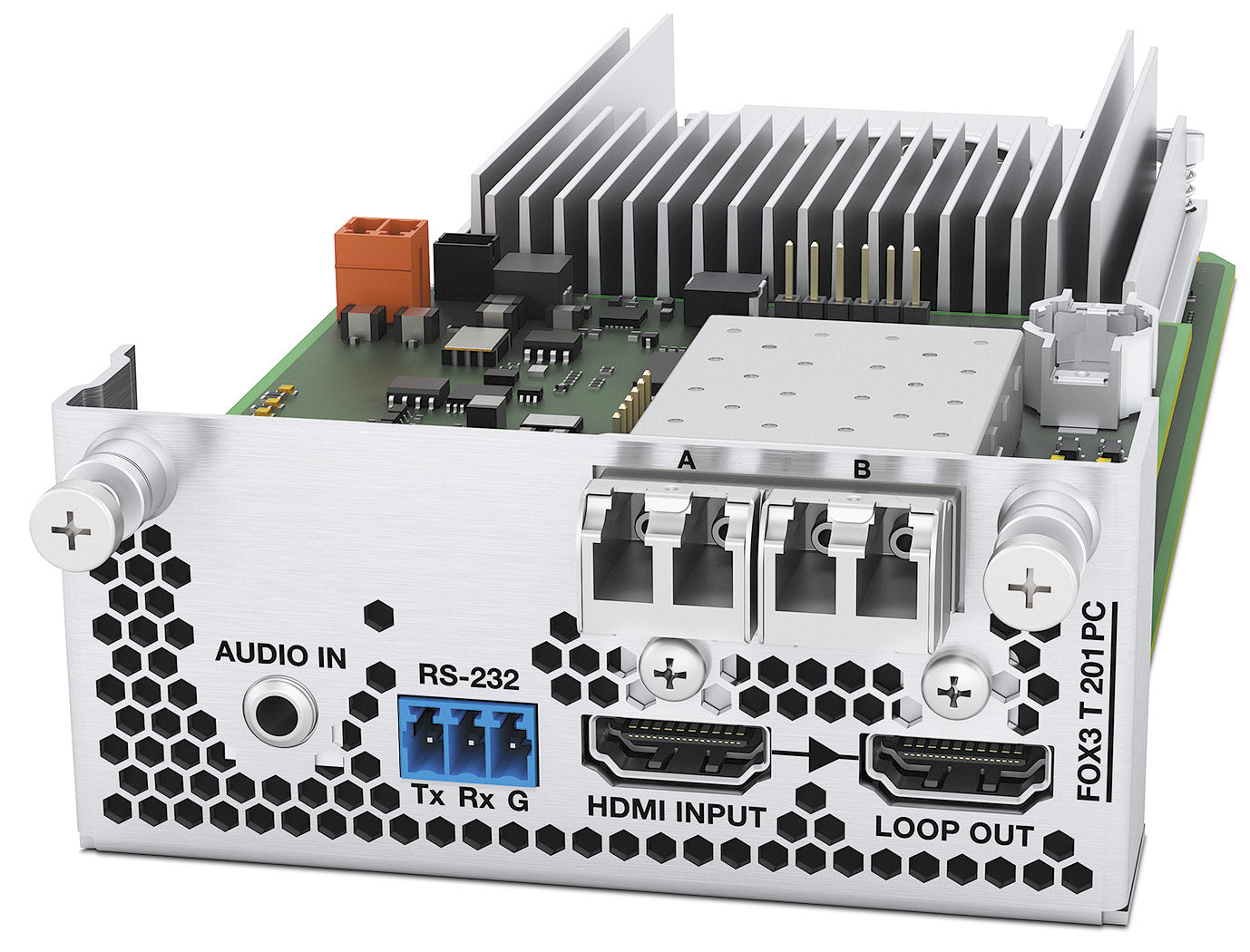

Extron FOX3 T 201 PC SM (part number 70-1224-12) — a single-slot, hot-swappable HDMI fiber transmitter module for the PowerCage 411 enclosure, running mathematically lossless mode over long runs.

This module slides into a PowerCage 411 chassis alongside up to three others, sharing redundant power, forced-air cooling, and Ethernet control. It accepts an HDMI input plus a discrete analog audio input, embeds them, and sends the combined signal out over one singlemode fiber at up to 4096x2160 at 60 Hz, 4:4:4 color. Riding on 1310 nm glass, reach extends to 20 km, well beyond what a multimode module can cover.

Key Capabilities

Lossless 4096x2160 at 60 Hz, 4:4:4 HDMI/DVI transmission over one fiber
Singlemode fiber reach to 20 km (12.4 miles) over LC connectors
Hot-swappable single-slot module, up to 4 per PowerCage 411
Discrete analog audio input alongside embedded HDMI audio
RS-232 pass-through over fiber for downstream device control
Draws power, cooling, and Ethernet control from the shared enclosure

Where It Is Used

Fits campus-scale racks needing several long-reach fiber transmitters in one 1U space — large venues, government facilities, and enterprise matrix deployments where field-swappable modules cut downtime.

Specifications at a Glance

Video: HDMI 2.0/HDCP 2.3 and DVI 1.0/HDCP 1.4, up to 4096x2160 at 60 Hz, 4:4:4
Fiber: singlemode, 20 km max reach, 1-3 LC connectors, 1310 nm
Module: 1.6"H x 3.5"W x 8.0"D single PowerCage 411 slot, 0.9 lb
Power: 17.8 W, supplied by the PowerCage 411 enclosure

Also referenced as Extron FOX3T201PCSM, FOX3-T-201-PC-SM, part number 70122412.

Specifications

Part Number: 70-1224-12

Manufacturer: Extron

Model: FOX3 T 201 PC SM

Condition: New

Video Input: 1 HDMI, female Type A

Video Loop Out: 1 HDMI, female Type A

Max. Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Max. Pixel Clock: 594 MHz

Max. Resolution: 4096x2160 at 60 Hz, 4:4:4 chroma, up to 12-bit color (lossless over 1 fiber)

Standards: DVI 1.0, HDCP 1.4, HDMI 2.0, HDCP 2.3

Power for Active Cables: 1.1 W

Audio Input: 1 digital (2-CH PCM de-embedded from HDMI) or 1 analog stereo, unbalanced

Audio Input Connectors: 1 HDMI (shared with video), 1 3.5 mm mini stereo jack

Audio Input Impedance: >10k ohms, DC coupled

Audio Input Nominal Level: -10 dBV (316 mVrms)

Audio Input Maximum Level: +7 dBV unbalanced

Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

S/N Ratio: >90 dB at maximum input (7 dBV), unweighted

THD + Noise: <0.03% at 20 Hz to 20 kHz, maximum output

Fiber Connectors: 1, 2, or 3 LC (1 or 2 SFP modules)

Operating Distance (Singlemode): 20 km (12.4 miles)

Nominal Peak Wavelength: 1310 nm (singlemode)

Fiber Data Rate: 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)

Transmission Power (Singlemode): -5.2 dBm, minimum

Receiver Sensitivity (Singlemode): -12.6 dBm, maximum

Optical Loss Budget (Singlemode): +7.4 dB, maximum

RS-232 Pass-Through: 3.5 mm captive screw, 3-pole, 9600 to 115,200 baud

Program Control: Extron Product Configuration Software, Extron SIS

Power Supply: Internal, powered by the PowerCage 411 enclosure

Power Consumption: 17.8 watts

Thermal Dissipation: 59.8 BTU/hr

Ambient Temperature/Humidity: Storage -40 to +158°F (-40 to +70°C), 10-90% noncondensing; Operating +32 to +104°F (0 to +40°C), 10-90% noncondensing

Cooling: Fans, front to back within the PowerCage 411 enclosure

Module Dimensions: 1.6" H x 3.5" W x 8.0" D, single PowerCage 411 slot (depth excludes connectors)

Product Weight: 0.9 lbs (0.4 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, FSA Class 1, ICES, UL, VCCI; complies with RoHS and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
