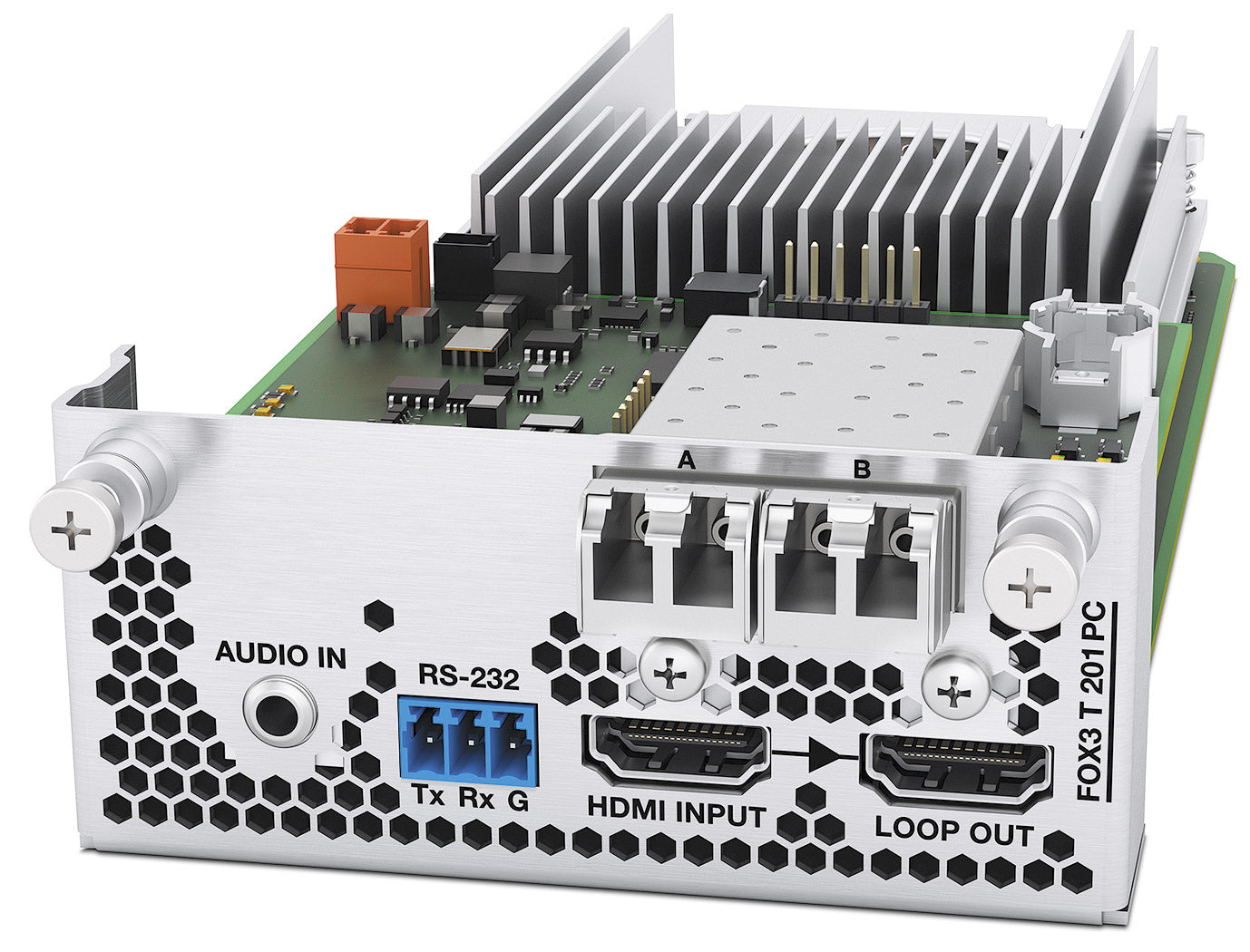

Extron FOX3 T 201 PC MM 70-1224-11

Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter 70-1224-11

Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter 70-1224-11

Manufacturer: Extron

Type: Fiber Optics

Extron FOX3 T 201 PC MM PowerCage Fiber Transmitter

  • • Extron FOX3 T 201 PC MM HDMI Transmitter Module
  • • Lossless 4K/60 HDMI over one fiber, up to 500 m
  • • Hot-swappable, up to 4 per PowerCage 411
  • • Sales, replacement and exchange
  • • Part# 70-1224-11 / 70122411

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOX3T201PCMM-70122411

Details

Extron FOX3 T 201 PC MM (part number 70-1224-11) - a single-slot, hot-swappable HDMI fiber transmitter module for the PowerCage 411 enclosure, running mathematically lossless mode.

Rather than standing alone with its own power supply, this module slides into a PowerCage 411 chassis alongside up to three others, sharing redundant power, forced-air cooling, and Ethernet control across the whole cage. It accepts an HDMI input plus a discrete analog audio input, embeds them, and sends the combined signal out over one multimode fiber at up to 4096x2160 at 60 Hz, 4:4:4 color. An HDMI loop-out and hot-swap capability keep field maintenance simple.

Key Capabilities

  • Lossless 4096x2160 at 60 Hz, 4:4:4 HDMI/DVI transmission over one fiber
  • Multimode reach to 500 m (1640 ft) on OM4 laser-optimized cable
  • Hot-swappable single-slot module, up to 4 per PowerCage 411
  • Discrete analog audio input alongside embedded HDMI audio
  • RS-232 pass-through over fiber for downstream device control
  • Draws power, cooling, and Ethernet control from the shared enclosure

Where It Is Used

Built for multi-source racks where several fiber transmitters need to live in one 1U space - command centers, broadcast racks, and large matrix deployments where field-swappable modules cut downtime.

Specifications at a Glance

  • Video: HDMI 2.0/HDCP 2.3 and DVI 1.0/HDCP 1.4, up to 4096x2160 at 60 Hz, 4:4:4
  • Fiber: multimode, 500 m max reach, 1-3 LC connectors, 850 nm
  • Module: 1.6"H x 3.5"W x 8.0"D single PowerCage 411 slot, 0.9 lb
  • Power: 17.8 W, supplied by the PowerCage 411 enclosure

Frequently asked questions about the Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter

Does Ampronix sell the Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter?

Yes. Ampronix is an authorized Extron distributor and sells the Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter (70-1224-11). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter?

Yes. Ampronix provides sales, replacement and exchange for the Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter. Call Ampronix for a quote.

Is the Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter listed under other names?

Yes. The Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter is also referenced as Extron FOX3T201PCMM, FOX3-T-201-PC-MM, part number 70122411.

What are the key features of the Extron FOX3 T 201 PC MM Fiber Optic HDMI Transmitter?

Key points: Lossless 4096x2160 at 60 Hz, 4:4:4 HDMI/DVI transmission over one fiber; Multimode reach to 500 m (1640 ft) on OM4 laser-optimized cable; Hot-swappable single-slot module, up to 4 per PowerCage 411; Discrete analog audio input alongside embedded HDMI audio. Call Ampronix to confirm details for your application.

Also referenced as Extron FOX3T201PCMM, FOX3-T-201-PC-MM, part number 70122411.

Related: Extron products, Video Solutions.
