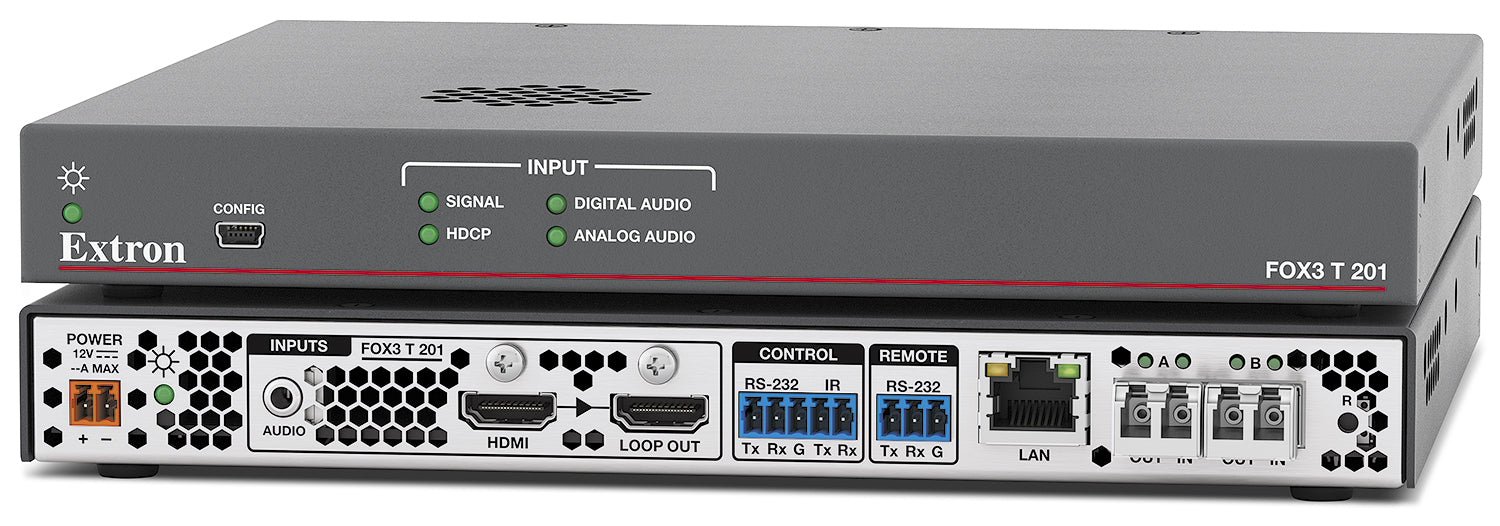

Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter
- • Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter
- • Lossless 4K/60 HDMI over one fiber, up to 500 m
- • Stereo audio input, RS-232 and IR insertion
- • Sales, replacement and exchange
- • Part# 60-1600-11 / 60160011
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron FOX3 T 201 MM (part number 60-1600-11) - a multimode fiber transmitter for HDMI video, stereo audio, and RS-232/IR control, running in mathematically lossless mode.
Built as the source-side half of a FOX3 T/SR 201 point-to-point link, this half-rack transmitter accepts an HDMI input plus a discrete stereo audio input, embeds them together, and sends the combined signal out over one multimode fiber at up to 4096x2160 at 60 Hz, 4:4:4 color. EDID and HDCP handling are managed automatically so the source powers up cleanly every time, and an HDMI loop-out lets the same signal drive a local monitor for setup or confidence viewing.
Key Capabilities
- Lossless 4096x2160 at 60 Hz, 4:4:4 HDMI 2.0/HDCP 2.3 transmission over one fiber
- Multimode reach to 500 m (1640 ft) on OM4 laser-optimized cable
- Discrete stereo audio input with adjustable gain, -18 dB to +24 dB
- RS-232 and IR insertion plus HDMI loop-out for local monitoring
- Front-panel USB configuration port and rear RJ-45 for Ethernet monitoring
- Compact half-rack enclosure runs on an external 24 W supply
Where It Is Used
Fits point-to-point HDMI extension for boardrooms, classrooms, and control rooms where a source needs to reach a FOX3 SR 201 receiver well beyond copper HDMI's practical distance, with a low-profile enclosure that tucks discreetly near the source.
Specifications at a Glance
- Video: HDMI 2.0/HDCP 2.3, up to 4096x2160 at 60 Hz, 4:4:4, 18 Gbps
- Fiber: multimode, 500 m max reach, 1-3 LC connectors, 850 nm
- Enclosure: half-rack metal, 1.0"H x 8.75"W x 8.0"D, 1.85 lbs
- Power: external 24 W supply, 20.0 W device draw
Frequently asked questions about the Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter
Does Ampronix sell the Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter?
Yes. Ampronix is an authorized Extron distributor and sells the Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter (60-1600-11). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter?
Yes. Ampronix provides sales, replacement and exchange for the Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter. Call Ampronix for a quote.
Is the Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter listed under other names?
Yes. The Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter is also referenced as Extron FOX3T201MM, FOX3-T-201-MM, part number 60160011.
What are the key features of the Extron FOX3 T 201 MM Fiber Optic HDMI Transmitter?
Key points: Lossless 4096x2160 at 60 Hz, 4:4:4 HDMI 2.0/HDCP 2.3 transmission over one fiber; Multimode reach to 500 m (1640 ft) on OM4 laser-optimized cable; Discrete stereo audio input with adjustable gain, -18 dB to +24 dB; RS-232 and IR insertion plus HDMI loop-out for local monitoring. Call Ampronix to confirm details for your application.
Also referenced as Extron FOX3T201MM, FOX3-T-201-MM, part number 60160011.
Related: Extron products, Video Solutions.
Specifications
Specifications

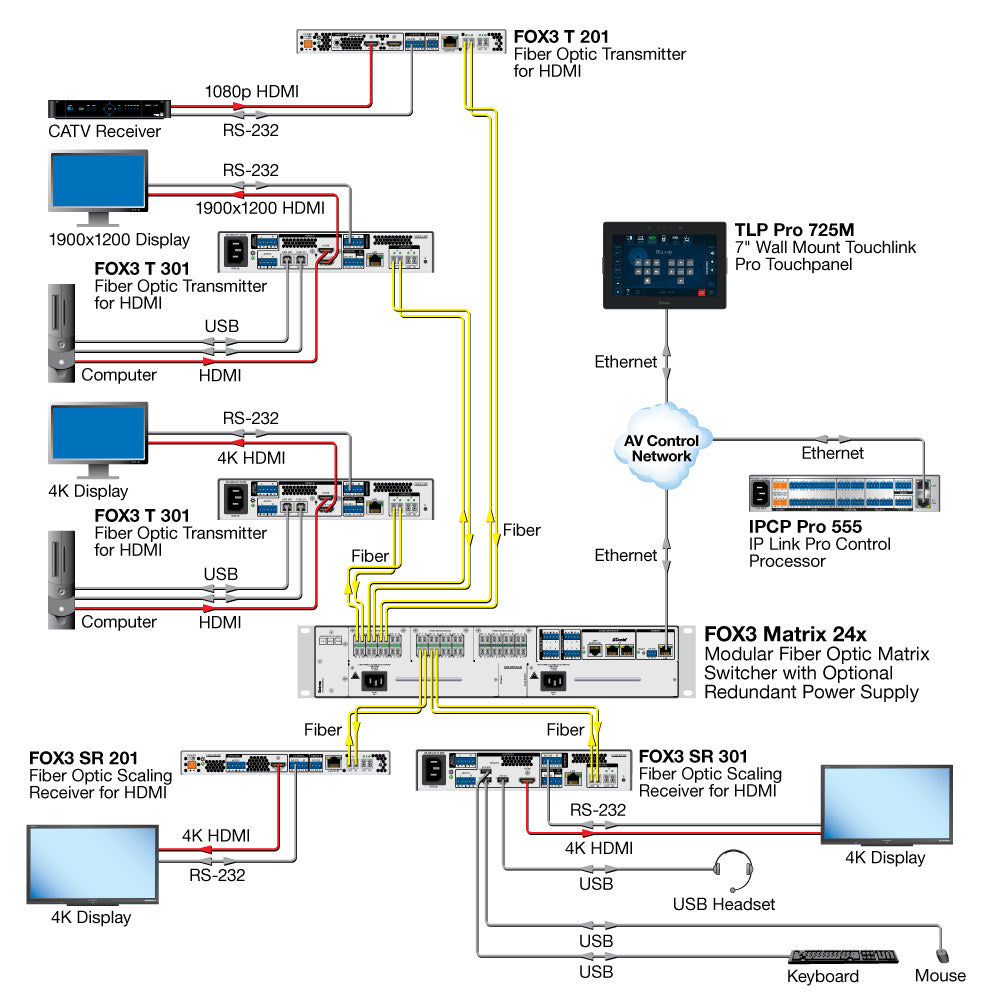

Diagram
