Extron FOX3 Matrix 40x no FPC 60-1576-02

Details

Extron FOX3 Matrix 40x no FPC (part number 60-1576-02) — a modular fiber optic matrix switcher scalable to 8x8 up to 40x40, distributing 4K/60 4:4:4 video, audio, USB, and control over fiber. Extron lists this frame as retired; Ampronix offers it while stock lasts.

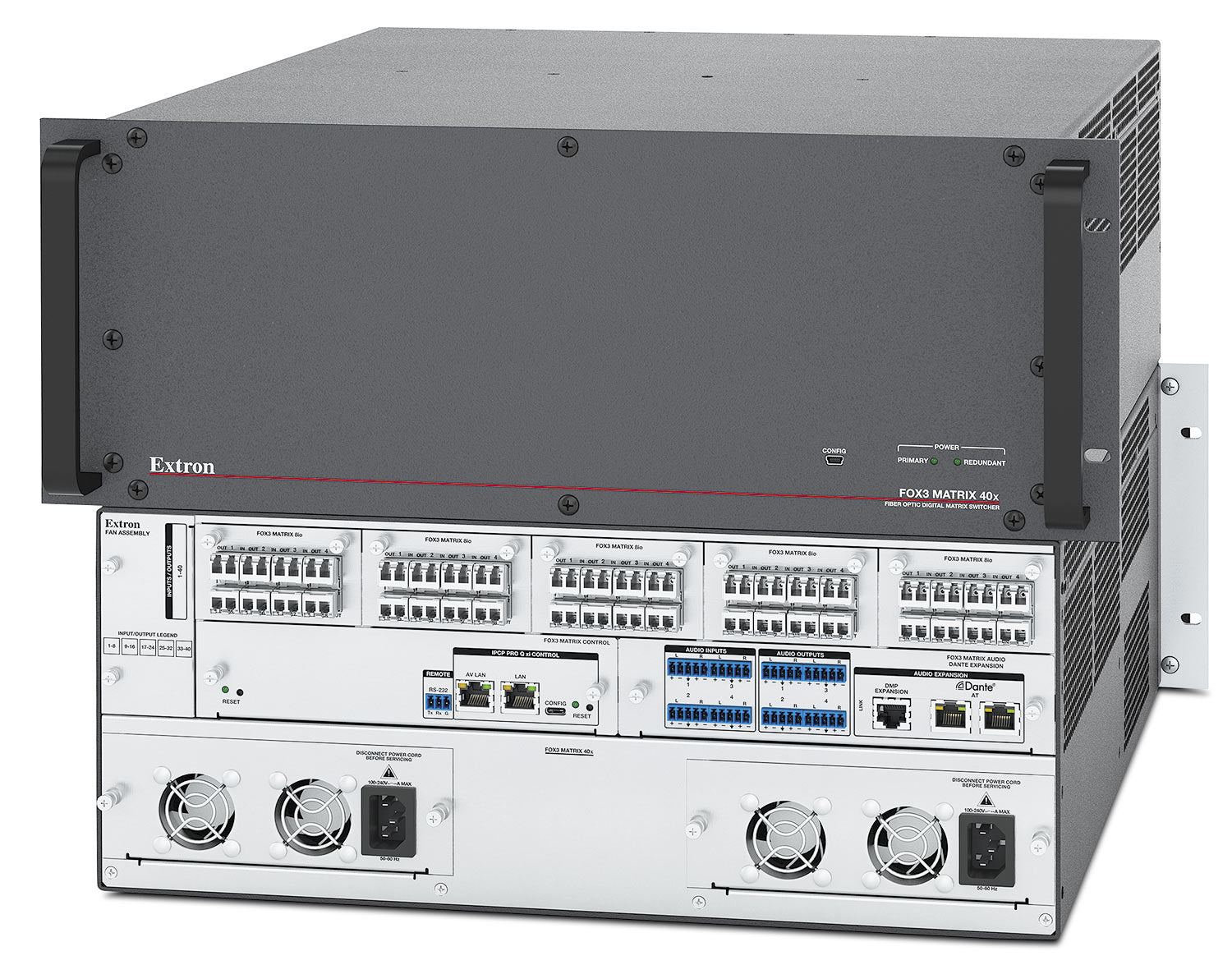

Built from individual 8-in by 8-out I/O boards, the FOX3 Matrix 40x no FPC routes uncompressed or mathematically lossless 4K/60 signals between any combination of Extron FOX3 transmitters and receivers, while embedding stereo audio, RS-232, USB, and 3D sync onto the same fiber link. This no-FPC variant ships with the standard FOX3 Matrix control card rather than the IPCP Pro card, controlled over Ethernet, RS-232, or the front panel USB configuration port. Redundant hot-swappable power supplies are standard. Power connects through an IEC 60320 C14, 100-240 VAC, 50-60 Hz inlet, and the frame cools with a right-to-left fan assembly rated for continuous operation.

Key Capabilities

Modular I/O boards scale the matrix up to 8x8 up to 40x40, mixing multimode and singlemode as needed
Routes 4K/60 4:4:4 video, audio, USB 2.0, USB HID, RS-232, and 3D sync per fiber link
Dante/AES-67 audio transport plus local analog audio inputs and outputs
Hot-swappable I/O boards, fans, and power supplies for field service without downtime
Ethernet, RS-232, and front panel USB control with Extron SIS and PCS software

Where It Is Used

Mid-size AV backbones, control rooms, and higher-education facilities specify the no-FPC 40x for compact fiber matrix switching, driving the frame from a separate Extron control system over Ethernet or RS-232.

Specifications at a Glance

I/O size: 8x8 up to 40x40
Enclosure: 7.0" H x 17.0" W x 20.0" D (4U, full rack wide), 45 lbs (20 kg) fully loaded
Power: IEC 60320 C14, 100-240 VAC, 50-60 Hz
Warranty: 3 years parts and labor

Also referenced as Extron FOX3Matrix40xnoFPC, FOX3-Matrix-40x-no-FPC, part number 60157602.

Specifications

Part Number: 60-1576-02

Manufacturer: Extron

Model: FOX3 Matrix 40x no FPC

Condition: New

Max Resolution: 4096 x 2160 at 60 Hz (mathematically lossless over one fiber, or uncompressed over two fibers)

Chroma Sampling: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, or 12 bits per color

Frame Rate: 24, 25, 30, 50, or 60 fps

Video Signal Type: HDMI 2.0, HDCP 2.3

Max Video Data Rate: 18.0 Gbps

Optical Number/Type: 8 singlemode or 8 multimode SFPs per board

Optical Connectors: 16 LC connectors per I/O board

Signal Type: 8 to 40 fiber optic signals

Routing: 8x8 up to 40x40 unidirectional, or 4x4 up to 20x20 bidirectional

Operating Distance, Singlemode: 20 km (12.4 miles) with singlemode (SM) cables

Operating Distance, Multimode: 500 m (1640 feet) with 50 micron OM4 4700 MHz laser-optimized multimode cables

Nominal Peak Wavelength: 850 nm (multimode), 1310 nm (singlemode)

Transmission Power, Singlemode: -5.2 dBm, minimum

Transmission Power, Multimode: -2.8 dBm, minimum

Receiver Sensitivity, Singlemode: -12.6 dBm, maximum

Receiver Sensitivity, Multimode: -11.1 dBm, maximum

Optical Loss Budget, Singlemode: +7.4 dB, maximum

Optical Loss Budget, Multimode: +8.3 dB, maximum

Maximum Channel Data Rate: 10 Gbps

Audio I/O Board: 4 analog stereo inputs / 4 analog stereo outputs, balanced/unbalanced, 8 3.5 mm captive screw connectors

Audio Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB

Audio THD + Noise: <0.1% at 20 Hz to 20 kHz, nominal level

Audio S/N: >90 dB at maximum output, unweighted

Audio Crosstalk: <=-80 dB at 1 kHz, fully loaded

Audio Bit Depth / Sampling Rate: 16, 20, 24 bit / 48 kHz

Dante Audio Transport: 2 RJ-45 ports, up to 32 stereo channels in and 32 stereo channels out, 24-bit uncompressed at 48 kHz

EXP Port: 1 RJ-45, 8 stereo channels Rx / 8 stereo channels Tx, uncompressed 24-bit 48 kHz, shielded CAT6 up to 10 m

USB Configuration Port: 1 front panel mini USB B, Ethernet over USB

Serial Control Port: 1 RS-232, 3.5 mm captive screw, rear panel, 300-115200 baud (default 9600)

Ethernet Control: 1 RJ-45, 10/100/1000Base-T, default IP 192.168.254.254

Program Control: Extron Product Configuration Software (PCS), Extron SIS

Power Supply: Internal, IEC 60320 C14 inlet, 100-240 VAC, 50-60 Hz, redundant supply standard

Power Consumption: Enclosure without boards: 66 W; each multimode board: 20.1 W; each singlemode board: 23.1 W; fully loaded 5 MM boards: 157 W; fully loaded 5 SM boards: 174 W

Thermal Dissipation, Full Load: Multimode: 535 BTU/hr; Singlemode: 594 BTU/hr

Enclosure Dimensions: 7.0" H x 17.0" W x 20.0" D (4U, full rack wide)

Product Weight, Fully Loaded: 45 lbs (20 kg)

Product Status: Retired by Extron (per current Extron part table)

Ambient Temperature/Humidity: Storage: -40 to 158 F (-40 to 70 C); Operating: +32 to 122 F (0 to 50 C), 10-90% noncondensing

Cooling: Fan, right to left as viewed from front panel

Rack Mount: Yes

Enclosure Type: Metal

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with RoHS, WEEE

Product Warranty: 3 years parts and labor

Diagram

Resources

Brochure | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | Cleaning Instruction Card

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | Control Systems Network Ports, Protocols, and Licenses

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Matrix Security Configuration Setup Guide

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Matrix Series Modules Installation Guide

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Matrix Series Setup Guide

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Matrix Series User Guide

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Matrix System Map Setup Guide

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | IPCP Pro Q xi and xi Series Setup Guide

Manual | FOX3 Matrix 40x no FPC 60-1576-02 | IPCP Pro Q xi and xi Series User Guide

Specifications | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Matrix 40x

Panel Drawing | FOX3 Matrix 40x no FPC 60-1576-02 | FOX3 Matrix 40x
