Extron FOX3 Matrix 320x no FPC 60-1578-02

Details

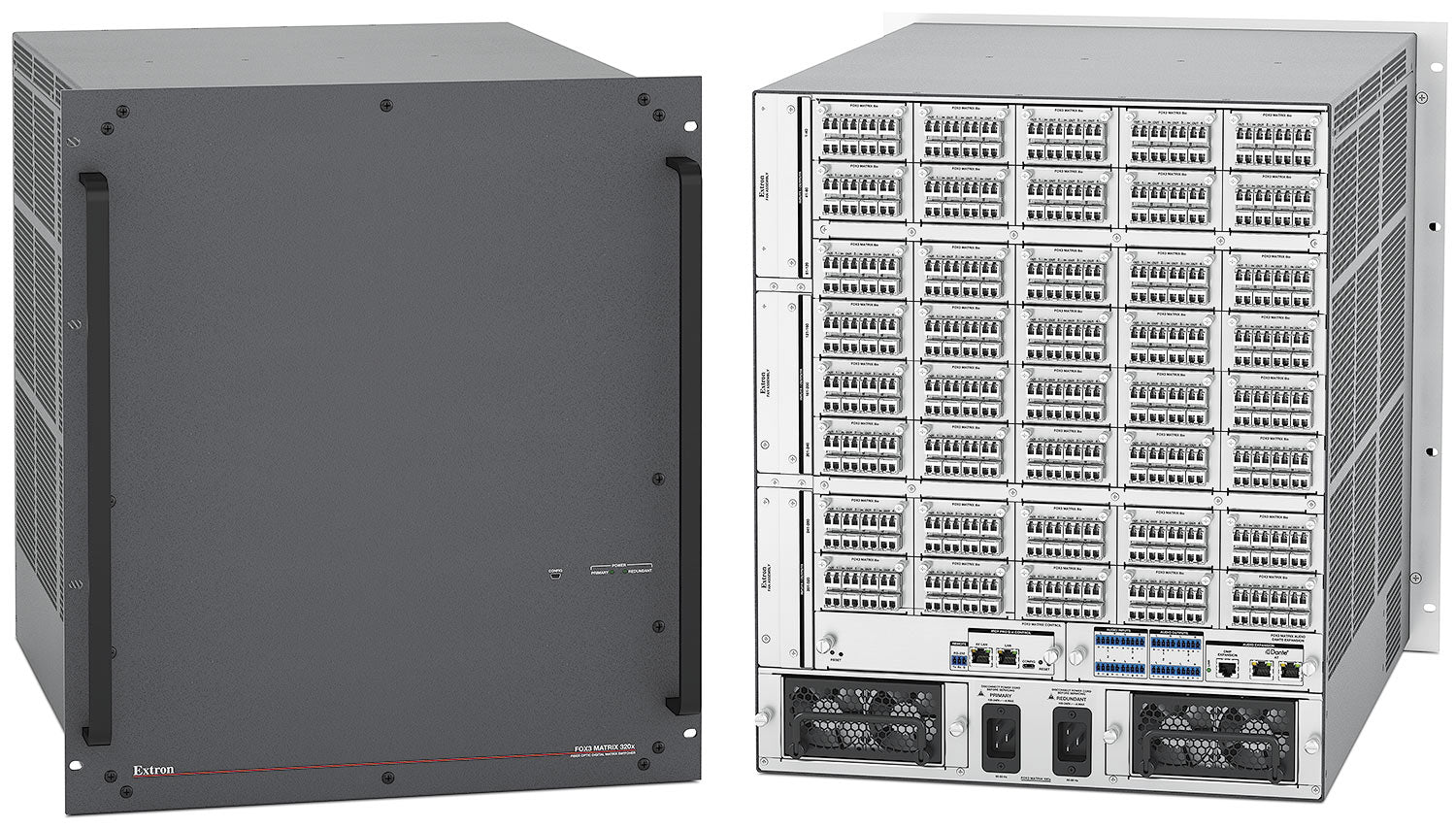

Extron FOX3 Matrix 320x no FPC (part number 60-1578-02) — the 12U modular fiber optic matrix frame supplied without the front panel controller. Extron lists this part as retired.

Mechanically and optically this is the same 320x chassis as the IPCP Pro version: 40 slots, each taking a FOX3 I/O 88 board with eight LC fiber ports, giving a switcher that grows from 8x8 to 320x320. What it does not carry is the integrated IPCP Pro Q xi control processor fitted to the IPCP Pro models. Control comes instead from the front panel USB configuration port, the rear RS-232 port and the Ethernet port, or remotely through an FPC 6000 Front Panel Controller.

Key Capabilities

Routes 4K at 60 Hz with 4:4:4 chroma over HDMI 2.0 and HDCP 2.3, 18.0 Gbps maximum video data rate
8x8 to 320x320 unidirectional, or 4x4 to 160x160 bidirectional when ports are linked
Mixes multimode and singlemode I/O boards in one frame, hot-swappable in the field
RS-232 insertion from the Ethernet port reaches any FOX3 endpoint without extra cabling
Priority Switching across six security levels and Secure Partitioning into up to six sub-switchers
Redundant power supply fitted as standard on an IEC 60320 C20 inlet

Where It Is Used

Large fiber plants in government, military and medical facilities, entertainment venues, campuses and utility control rooms. Because the frame is retired, it is usually bought now as a spare or an expansion for an installed FOX3 system rather than as the basis of a new design.

Specifications at a Glance

Optical: 8 SFPs and 16 LC connectors per I/O board, 10 Gbps maximum channel data rate
Distance: 20 km singlemode, 500 m on 50 µm OM4 multimode
Power: 178 W with no boards fitted, 1001 W with 40 multimode boards
Enclosure: 21.0" H x 17.0" W x 20.0" D, 12U, 126 lbs (57 kg) fully loaded
Warranty: 3 years parts and labor

Also referenced as Extron FOX3Matrix320xnoFPC, FOX3-Matrix-320x-no-FPC, part number 60157802.

Specifications

Part Number: 60-1578-02

Manufacturer: Extron

Model: FOX3 Matrix 320x no FPC

Condition: New

Device Type: Modular fiber optic matrix switcher frame, no front panel controller (Extron lists this part as retired)

Maximum Resolution and Refresh Rate: 4096 x 2160 at 60 Hz

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2

Color Bit Depth: 8, 10, or 12 bits per color

Signal Type: HDMI 2.0, HDCP 2.3

Maximum Video Data Rate: 18.0 Gbps

HDMI Protocol Exceptions: CEC signaling is not supported; Ethernet signal transport is not supported (HDMI pin 14 not connected); Audio Return Channel is not supported

Laser Safety: Contains Class 1 laser; meets IEC 60825-1, FDA 21 CFR 1040.10 and FDA 21 CFR 1040.11

Optical Ports Per Board: 8 singlemode or 8 multimode SFPs per board

Optical Connectors: 16 LC connectors per I/O board

Optical Signal Capacity: 8 to 320 fiber optic signals

Routing: 8 x 8 up to 320 x 320 unidirectional matrix, or 4 x 4 up to 160 x 160 bidirectional matrix

Operating Distance, Singlemode: 20 km (12.4 miles) with singlemode (SM) cables

Operating Distance, Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables; OM1, OM2 and OM3 fiber work at reduced distances

Nominal Peak Wavelength: 850 nm for multimode (MM), 1310 nm for singlemode (SM)

Transmission Power: Singlemode: -5.2 dBm, minimum. Multimode: -2.8 dBm, minimum

Receiver Sensitivity: Singlemode: -12.6 dBm, maximum. Multimode: -11.1 dBm, maximum

Optical Loss Budget: Singlemode: +7.4 dB, maximum. Multimode: +8.3 dB, maximum

Maximum Channel Data Rate: 10 Gbps

Audio I/O Board: 4 analog stereo inputs and 4 analog stereo outputs, balanced/unbalanced

Audio Connectors: (8) 3.5 mm captive screw connector, 5 pole

Audio Source Formats: 2 channel LPCM

Audio Input Impedance: ≥10 k ohms unbalanced, ≥20 k ohms balanced

Audio Nominal Level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced

Audio Gain Range: Adjustable, -18 dB to +24 dB, 1 dB steps

Audio Gain: Unbalanced output: -6 dB; balanced output: 0 dB (default)

Frequency Response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level

S/N: >90 dB at maximum output (unweighted)

CMRR: 65 dB @ 20 Hz to 20 kHz

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced (analog only)

Gain Error: ±0.5 dB channel to channel

Volume Control Range: -100 dB to 0 dB (0-100 in 1 dB steps)

Audio Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Stereo Channel Separation: >80 dB @ 1 kHz

Audio Bit Depth: 16, 20, 24

Audio Sampling Rate: 48 kHz

Dante AT Ports: 2 RJ-45 to Dante interface; Dante/AES-67, software selectable

Dante Channels: Up to 32 stereo channels in, up to 32 stereo channels out

Dante Audio Format: 24 bit uncompressed at 48 kHz sampling rate

Dante Latency: Deterministic: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms

EXP Port: 1 RJ-45, proprietary transmission; 8 stereo channels Rx and 8 stereo channels Tx; uncompressed 24-bit, 48 kHz

EXP Cable: Shielded CAT6 up to 10 meters

USB Configuration Port: 1 front panel mini USB B, female; Ethernet over USB

USB Host Ports: 1-port USB HID and 1-port USB 2.0; 0 connectors (virtual USB)

USB 2.0 Built-In Hubs: Maximum 1, minimum 1

USB HID Built-In Hubs: Maximum 0, minimum 0

Serial Control Port: 1 RS-232, 3.5 mm captive screw connector, 3-pole, female, rear panel

Baud Rate and Protocol: 300 to 115200 baud (default: 9600), 8 data bits, 1 stop bit, no parity

Serial Control Pin Configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND

Ethernet Port: 1 RJ-45 connector, female

Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect

Ethernet Protocols: ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP

Ethernet Default Settings: IP address 192.168.254.254; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; link speed and duplex autodetected

Web Server: Up to 200 simultaneous sessions; 7.0 MB non-volatile memory

Configuration Software: Product Configuration Software (PCS)

Utilities: Toolbelt, embedded web page

Program Control: Extron Product Configuration Software; Extron Simple Instruction Set (SIS)

Power Supply: Internal (IEC 60320 C20 inlet). North America: 120 VAC, 50-60 Hz, 20 A or 240 VAC, 50-60 Hz, 15 A. Other regions: 100-120 VAC, 50-60 Hz, minimum 15 A or 200-240 VAC, 50-60 Hz, minimum 7 A. A redundant power supply is standard

Power Consumption: Enclosure without boards: 178 watts. Fully loaded with 40 MM boards: 1001 watts. Fully loaded with 40 SM boards: 1165 watts. Each MM board: 20.1 watts. Each SM board: 23.1 watts

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Fan, right to left (as viewed from front panel)

Thermal Dissipation, Full Load: MM: 3416 BTU/hr. SM: 3977 BTU/hr

Rack Mount: Yes

Enclosure Type: Metal

Enclosure Dimensions: 21.0" H x 17.0" W x 20.0" D (12U high, full rack wide) (53.3 cm H x 43.2 cm W x 50.8 cm D); depth excludes connectors and handles, width excludes rack ears

Product Weight (Fully Loaded): 126 lbs (57 kg)

Regulatory Compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI; complies with the appropriate requirements of RoHS, WEEE

Product Warranty: 3 years parts and labor
