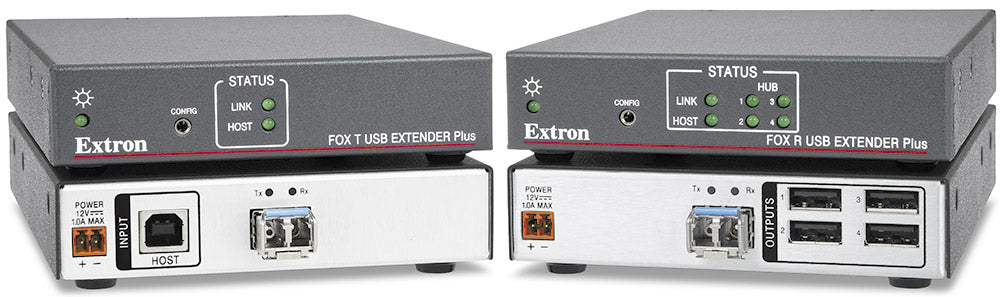

Extron FOX T USB Extender Plus HID MM 60-1526-11

Extron FOX T USB Extender Plus HID MM Fiber USB Transmitter 60-1526-11

Extron FOX T USB Extender Plus HID MM Fiber USB Transmitter 60-1526-11

Manufacturer: Extron

Type: Fiber Optics

Extron FOX T USB Extender Plus HID MM Fiber Optic USB Transmitter

  • • Host-side transmitter of the Extron FOX USB Extender Plus multimode fiber pair
  • • Single female USB type B port connects directly to the host computer
  • • Peripheral emulation keeps host-to-device communication uninterrupted
  • • HID device class filtering restricts the link to approved device types
  • • 850 nm multimode optics, 600 Mbps data rate, 7 dB maximum loss budget
  • • Reaches 2 km (6541 ft) over 50 um OM3/OM4 laser-optimized fiber
  • • Low 3.2 W device draw and 10.7 BTU/hr dissipation in multimode use
  • • Quarter-rack metal enclosure, 1 lb (0.5 kg), 3-year Extron warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOXTUSBEXTENDERPLUSHDMM-60152611

Details

Extron FOX T USB Extender Plus HID MM (part number 60-1526-11) — the host-side multimode fiber transmitter in Extron's secure USB extension pair.

This unit connects to the computer, not the peripherals. A single female USB type B socket takes the upstream connection from the host, and the transmitter converts that bus onto a duplex LC multimode link running at 600 Mbps. Peripheral emulation holds the host-to-device conversation together so the session survives even when the far end changes state. Because this is an HID build, the extension is deliberately narrowed to a restricted set of device classes.

Key Capabilities

  • One female USB type B host port; the four downstream ports live on the receiver.
  • Peripheral emulation maintains uninterrupted host-to-device communication.
  • 850 nm multimode transceivers with a 7 dB maximum optical loss budget.
  • Reaches 2 km (6541 feet) over 50 µm OM3/OM4 laser-optimized fiber.
  • Device class filtering restricts the link to HID types and smart card readers.
  • Draws only 3.2 watts at the device, dissipating 10.7 BTU/hr in multimode use.

Where It Is Used

Secure operations centres, government and defence facilities, courthouses, financial trading floors, broadcast equipment rooms and medical imaging installations. It belongs in the rack alongside the host machine, wherever that machine has been consolidated away from the operator and the USB attach surface must remain controlled.

Specifications at a Glance

  • Host port: 1 female USB type B, USB 2.0/1.1/1.0 compatible
  • Fiber link: 2 LC connectors, multimode, 850 nm, 600 Mbps
  • Reach: 300 m on OM1, 1 km on OM2, 2 km on OM3/OM4
  • Power: external supply, 12 VDC at 1.5 A, 18 watts
  • Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, 1 lb (0.5 kg)

Also referenced as Extron FOXTUSBExtenderPlusHIDMM, FOX-T-USB-Extender-Plus-HID-MM, part number 60152611.
