Extron FOX R USB Extender Plus SM Fiber Optic USB Receiver
- • Receive end of the Extron FOX USB Extender Plus singlemode fiber pair
- • Carries USB peripherals up to 30 km (18.64 miles) over singlemode fiber
- • 1310 nm optics with a 13 dB maximum optical loss budget
- • No device class filtering - supports the broad USB peripheral range
- • Four female USB 2.0 type A ports sharing 500 mA of downstream power
- • 600 Mbps optical data rate, -18 dBm typical receiver sensitivity
- • Quarter-rack metal enclosure, 1 lb (0.5 kg), convection cooled
- • Covered by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

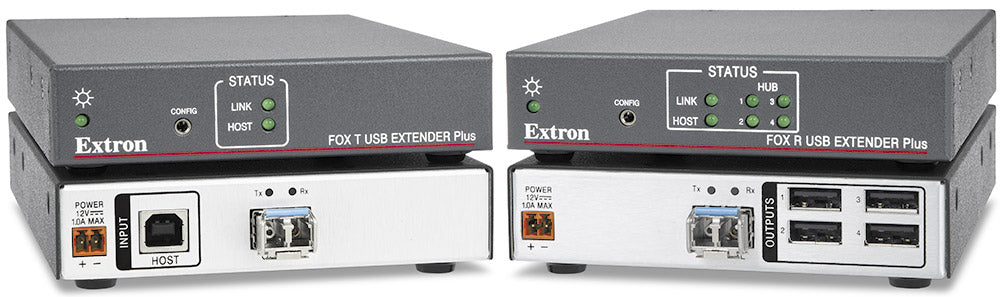

Extron FOX R USB Extender Plus SM (part number 60-1474-22) — singlemode fiber receiver for USB peripheral extension measured in kilometres rather than metres.
Sitting at the user end of a FOX USB Extender Plus pair, this receiver terminates the optical link and rebuilds the host's USB bus locally. Its 1310 nm singlemode transceivers push the usable span out to 30 km, which lets a single workstation serve peripherals in an entirely separate building. This is the unrestricted model: no device class filter is applied, so whiteboards, storage drives, cameras, audio devices, keyboards and pointing devices all connect normally.
Key Capabilities
- Singlemode 1310 nm optics carrying USB as far as 30 km (18.64 miles).
- Generous 13 dB maximum optical loss budget for long or heavily spliced runs.
- Four-port USB 2.0 hub built in, sharing 500 mA of downstream power.
- No device class restriction, unlike the HID variants in the same family.
- 600 Mbps link rate with -18 dBm typical receiver sensitivity on duplex LC.
- Quarter-rack metal chassis, convection cooled, no vents or moving parts.
Where It Is Used
Distributed campuses, transport and utility operations centres, large healthcare estates linking imaging modalities to remote reading positions, broadcast plants, and any site where the fiber path between the equipment room and the operator exceeds multimode's practical limit but USB peripherals must still work transparently.
Specifications at a Glance
- Fiber link: 2 LC connectors, singlemode, 1310 nm, 600 Mbps
- Reach: 30 km (18.64 miles) on singlemode cable
- USB ports: 4 female USB 2.0 type A, 500 mA shared
- Power: external supply, 12 VDC at 1.5 A, 18 watts
- Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, 1 lb (0.5 kg)
Also referenced as Extron FOXRUSBExtenderPlusSM, FOX-R-USB-Extender-Plus-SM, part number 60147422.
Specifications
Specifications

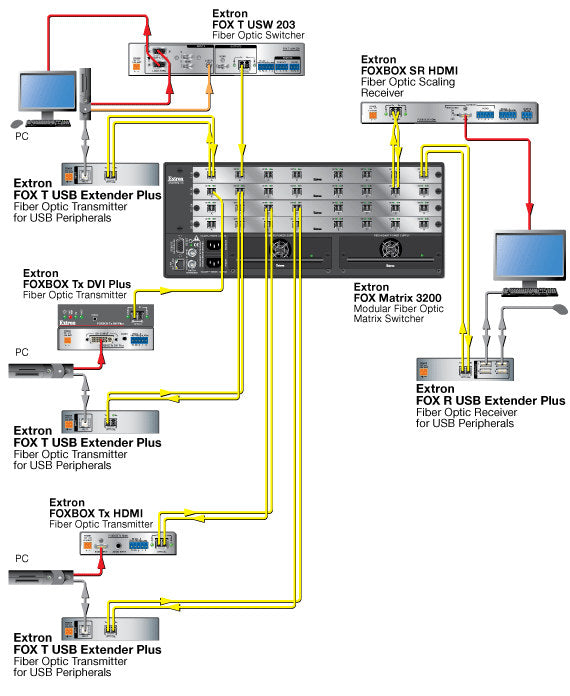

Diagram
