Extron FOX R USB Extender Plus MM Fiber Optic USB Receiver
- • Receive end of the Extron FOX USB Extender Plus multimode fiber pair
- • No device class filtering - supports the broad USB peripheral range
- • Four female USB 2.0 type A ports sharing 500 mA of downstream power
- • 850 nm multimode optics, 600 Mbps data rate, 7 dB maximum loss budget
- • Reaches 2 km (6541 ft) over 50 um OM3/OM4 laser-optimized fiber
- • Duplex LC fiber connectors for precise, repeatable core alignment
- • Quarter-rack metal enclosure, 1 lb (0.5 kg), convection cooled
- • Covered by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

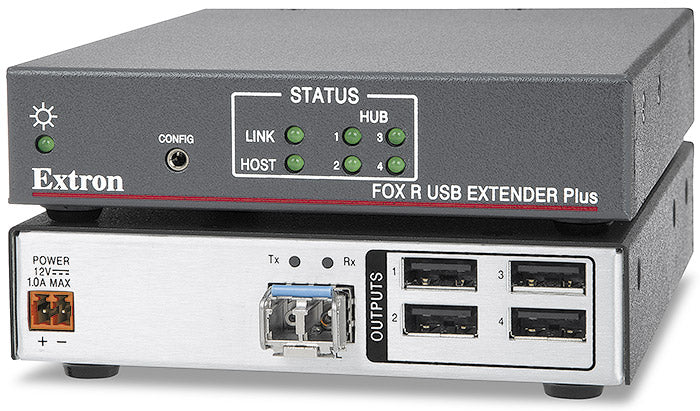

Extron FOX R USB Extender Plus MM (part number 60-1474-21) — multimode fiber receiver that puts a full four-port USB hub at the far end of an optical run.

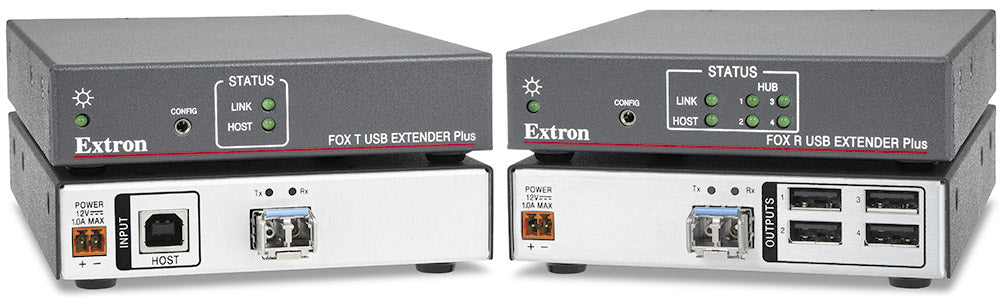

This is the standard, unrestricted receiver in the FOX USB Extender Plus family. Unlike the HID variants, it does not apply device class filtering, so the whole spread of USB peripherals an AV system might need — interactive whiteboards, mass storage, webcams, headsets, speakers, keyboards and mice — can be attached at the user position. Paired with a FOX T MM transmitter, it recreates the host's USB bus over a duplex LC multimode link running at 600 Mbps.
Key Capabilities
- Accepts the broad USB peripheral range, with no device class restriction applied.
- Integrated four-port USB 2.0 hub supplying 500 mA shared across the group.
- 850 nm multimode optics, 7 dB maximum loss budget, -12 dBm typical sensitivity.
- Extends to 2 km (6541 feet) on 50 µm OM3/OM4 laser-optimized fiber.
- Supports bulk, control, interrupt and isochronous USB transfers alike.
- Fanless quarter-rack metal chassis, convection cooled, 1 lb (0.5 kg).
Where It Is Used
Lecture theatres and divisible classrooms with interactive displays, boardrooms, houses of worship, control rooms, broadcast studios and medical imaging environments. It fits any installation where the equipment rack has been consolidated away from the room and USB peripherals still need to behave as though locally attached.
Specifications at a Glance
- Fiber link: 2 LC connectors, multimode, 850 nm, 600 Mbps
- Reach: 300 m on OM1, 1 km on OM2, 2 km on OM3/OM4
- USB ports: 4 female USB 2.0 type A, 500 mA shared
- Power: external supply, 12 VDC at 1.5 A, 18 watts
- Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, quarter rack width
Also referenced as Extron FOXRUSBExtenderPlusMM, FOX-R-USB-Extender-Plus-MM, part number 60147421.
