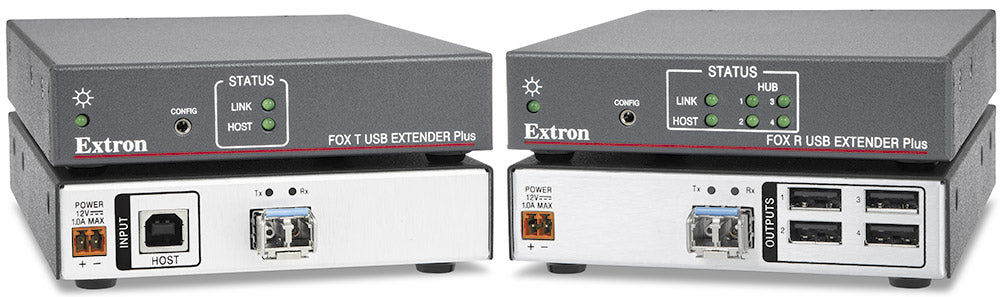

Extron FOX R USB Extender Plus HID SM 60-1526-22

Extron FOX R USB Extender Plus HID SM Fiber Optic USB Receiver 60-1526-22

Extron FOX R USB Extender Plus HID SM Fiber Optic USB Receiver 60-1526-22

Manufacturer: Extron

Type: Fiber Optics

Extron FOX R USB Extender Plus HID SM Fiber Optic USB Receiver

  • • Receive end of the Extron FOX USB Extender Plus singlemode fiber pair
  • • Carries USB peripherals up to 30 km (18.64 miles) over singlemode fiber
  • • 1310 nm optics with a 13 dB maximum optical loss budget
  • • HID device class filtering keeps unauthorized USB hardware off the link
  • • Four female USB 2.0 type A ports sharing 500 mA of downstream power
  • • 600 Mbps optical data rate, -18 dBm typical receiver sensitivity
  • • Quarter-rack metal enclosure, 1 lb (0.5 kg), convection cooled
  • • Covered by a 3-year Extron parts and labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOXRUSBEXTENDERPLUSHDM-60152622

Details

Extron FOX R USB Extender Plus HID SM (part number 60-1526-22) — singlemode fiber receiver for secure USB peripheral extension across campus-scale distances.

Deployed at the user end of a FOX USB Extender Plus link, this receiver terminates the fiber run and rebuilds the USB bus locally, so a host sitting in a distant machine room behaves as though the peripherals were attached directly to it. The 1310 nm singlemode optics stretch the link out to 30 km, far beyond what any copper USB solution can manage. Being the HID build, it also enforces a restriction on what may legitimately be plugged in.

Key Capabilities

  • Singlemode operation at 1310 nm with a 13 dB maximum optical loss budget.
  • Carries USB traffic as far as 30 km (18.64 miles) over singlemode fiber.
  • Built-in four-port USB 2.0 hub delivering 500 mA shared across the ports.
  • Device class filtering confines the link to HID hardware and smart card readers.
  • 600 Mbps optical data rate with -18 dBm typical receiver sensitivity.
  • Quarter-rack metal enclosure, convection cooled, weighing just 1 lb (0.5 kg).

Where It Is Used

Multi-building campuses, utility and transport control centres, secure government sites, hospital networks linking imaging suites to remote reading rooms, and broadcast facilities that separate operator positions from equipment rooms. Anywhere the fiber run exceeds what multimode can support and the attached USB hardware must stay tightly controlled.

Specifications at a Glance

  • Fiber link: 2 LC connectors, singlemode, 1310 nm, 600 Mbps
  • Reach: 30 km (18.64 miles) on singlemode cable
  • USB ports: 4 female USB 2.0 type A, 500 mA shared
  • Power: external supply, 12 VDC at 1.5 A, 18 watts
  • Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, 1 lb (0.5 kg)

Also referenced as Extron FOXRUSBExtenderPlusHIDSM, FOX-R-USB-Extender-Plus-HID-SM, part number 60152622.
