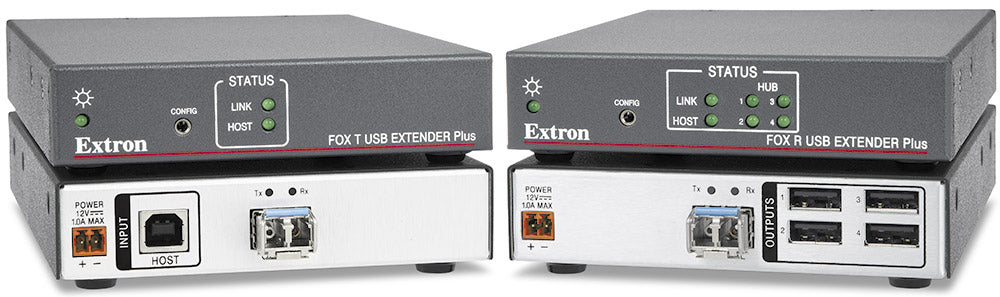

Extron FOX R USB Extender Plus HID MM 60-1526-21

Extron FOX R USB Extender Plus HID MM Fiber Optic USB Receiver 60-1526-21

Extron FOX R USB Extender Plus HID MM Fiber Optic USB Receiver 60-1526-21

Manufacturer: Extron

Type: Fiber Optics

Extron FOX R USB Extender Plus HID MM Fiber Optic USB Receiver

  • • Receive end of the Extron FOX USB Extender Plus multimode fiber pair
  • • Four female USB 2.0 type A ports sharing 500 mA of downstream power
  • • HID device class filtering keeps unauthorized USB hardware off the link
  • • 850 nm multimode optics, 600 Mbps data rate, 7 dB maximum loss budget
  • • Reaches 2 km (6541 ft) over 50 um OM3/OM4 laser-optimized fiber
  • • Duplex LC fiber connectors for precise, repeatable core alignment
  • • Quarter-rack metal enclosure, 1 lb (0.5 kg), convection cooled
  • • Covered by a 3-year Extron parts and labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-FOXRUSBEXTENDERPLUSHDMM-60152621

Details

Extron FOX R USB Extender Plus HID MM (part number 60-1526-21) — the multimode fiber receiver half of Extron's secure long-haul USB extension pair.

This unit lands at the operator end of a FOX USB Extender Plus link. Working opposite a matching FOX T HID transmitter, it presents connected peripherals to the distant host as if they were plugged straight into it. Traffic crosses a duplex LC multimode span at a 600 Mbps line rate, carrying USB 2.0, 1.1 and 1.0 hardware as well as USB 3.0 devices willing to negotiate down to 480 Mbps. Because this is the HID build, the receiver also polices which classes of device the system will accept.

Key Capabilities

  • Integrated four-port USB 2.0 hub, with 500 mA of bus power shared across the group.
  • Device class filtering keeps the link restricted to HID hardware and smart card readers.
  • 850 nm multimode optics rated for a 7 dB maximum loss budget and -12 dBm typical sensitivity.
  • Spans up to 2 km (6541 feet) when run over 50 µm OM3/OM4 laser-optimized fiber.
  • Handles every USB transfer class — bulk, control, interrupt and isochronous.
  • Fanless quarter-rack metal chassis cooled by convection, with no vent openings.

Where It Is Used

Command and control floors, secure government and courthouse installations, broadcast galleries, medical imaging reading rooms and large lecture halls. It suits any deployment where the keyboard, mouse or card reader has to sit far from the machine driving it, and where site policy will not tolerate unvetted USB hardware appearing on a workstation.

Specifications at a Glance

  • Fiber link: 2 LC connectors, multimode, 850 nm, 600 Mbps
  • Reach: 300 m on OM1, 1 km on OM2, 2 km on OM3/OM4
  • USB ports: 4 female USB 2.0 type A, 500 mA shared
  • Power: external supply, 12 VDC at 1.5 A, 18 watts
  • Enclosure: 1.0 in H x 4.3 in W x 6.0 in D, 1 lb (0.5 kg)

Also referenced as Extron FOXRUSBExtenderPlusHIDMM, FOX-R-USB-Extender-Plus-HID-MM, part number 60152621.
