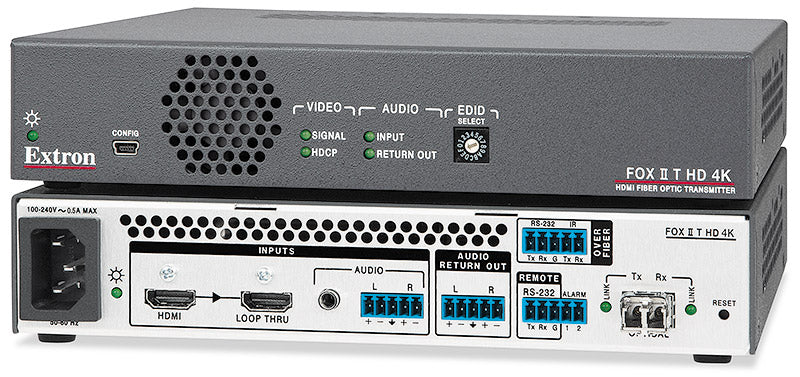

Extron FOX II T HD 4K SM Singlemode HDMI Fiber Transmitter 60-1351-12
Extron FOX II T HD 4K SM Singlemode HDMI Fiber Transmitter 60-1351-12
Extron FOX II T HD 4K SM Singlemode HDMI Fiber Optic Transmitter
- • Singlemode HDMI fiber transmitter with RS-232 and IR - Extron 60-1351-12
- • 1310 nm singlemode optics carry the link up to 30 km (18.75 miles)
- • 13 dB maximum optical loss budget for spliced long-haul fiber plant
- • Female HDMI input plus buffered HDMI loop-through for a local monitor
- • Carries resolutions to 4096x2160 at 24/30 Hz with 4:4:4 color space
- • Horizontal frequency 24 kHz to 135 kHz, vertical 40 Hz to 120 Hz
- • Half-rack metal enclosure, 1.75 in high, 2.2 lbs, 18.5 W internal supply
- • 3-year Extron warranty with 7-year Everlast power supply coverage
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron FOX II T HD 4K SM (part number 60-1351-12) — the singlemode send end of Extron's FOX II T HD 4K fiber optic extender, for HDMI runs that leave the building.
Same transmitter chassis as the multimode variant, different optics. The SM order code fits 1310 nm transceivers for singlemode plant and a stated operating distance of 30 km (18.75 miles), with a 13 dB optical loss budget and -18 dBm typical sensitivity at the far end. HDMI arrives on a female connector, a buffered loop-through keeps a local monitor fed, and video, analog or de-embedded audio, RS-232 and IR all travel out on two LC-terminated fibers. Extron lists this transmitter as compatible with its FOX II R DP 4K receiver.
Key Capabilities
- Singlemode optical link rated to 30 km (18.75 miles) at 1310 nm nominal peak wavelength
- 13 dB maximum optical loss budget — nearly double the multimode figure, for spliced long-haul plant
- One female HDMI input plus one female HDMI loop-through for a local confidence display
- Passes 640x480 through 4096x2160 at 24/30 Hz, UHD, and 1080p at up to 120 Hz
- Horizontal frequency 24 kHz to 135 kHz, vertical 40 Hz to 120 Hz, RGB / YCbCr / xvYCC formats
- Bidirectional RS-232 and IR over the fiber, plus a balanced audio return output on captive screw
Where It Is Used
Singlemode HDMI transmitters belong wherever the source and the screen sit in different buildings: airport and transit operations, utility and refinery control rooms, multi-building healthcare campuses, stadium and arena installations, and secure government facilities that need distance plus complete electrical isolation on the AV path.
Specifications at a Glance
- Optical: 2 fiber, 2 LC connectors, 1310 nm singlemode, 4.25 Gbps optical data rate
- Video: DVI 1.0 / HDMI 1.4a / HDCP 1.4 / CEA-861E, up to 8.91 Gbps, 300 MHz pixel clock
- Power: internal supply, 100-240 VAC 50-60 Hz, 18.5 watts, 62.1 BTU/hr
- Enclosure: metal half rack, 1.75 in H x 8.7 in W x 8.5 in D, 2.2 lbs (1.0 kg)
- Warranty: 3 years parts and labor; Everlast power supply 7 years
Also referenced as Extron FOXIITHD4KSM, FOX-II-T-HD-4K-SM, part number 60135112.
