Extron FOX II R DP 4K SM Singlemode DisplayPort Fiber Receiver 60-1462-22
Extron FOX II R DP 4K SM Singlemode DisplayPort Fiber Receiver 60-1462-22
Extron FOX II R DP 4K SM Singlemode DisplayPort Fiber Optic Receiver
- • Singlemode fiber receiver for DisplayPort, audio, RS-232 and IR - Extron 60-1462-22
- • 1310 nm singlemode optics carry the link up to 30 km (18.75 miles)
- • 13 dB maximum optical loss budget, -18 dBm typical receiver sensitivity
- • Handles resolutions to 4096x2160 at 30 Hz with 4:4:4 chroma sampling
- • One female DisplayPort output plus balanced and unbalanced analog audio outs
- • Balanced audio return input sends a stereo or mono feed back up the fiber link
- • Half-rack metal enclosure, 1.65 in high, 2.1 lbs, internal 100-240 VAC supply
- • 3-year Extron warranty with 7-year Everlast power supply coverage
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

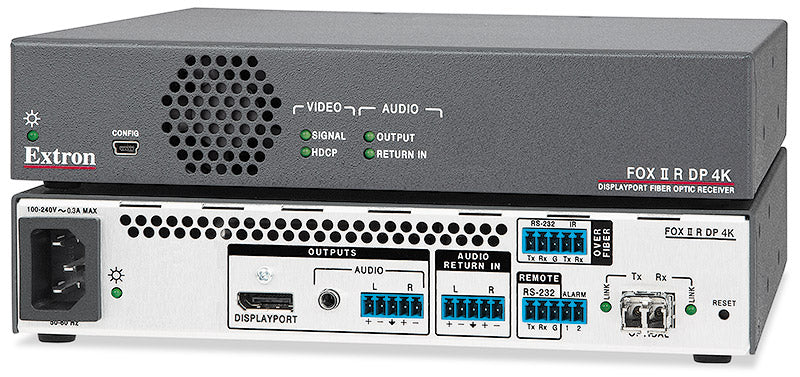

Extron FOX II R DP 4K SM (part number 60-1462-22) — the singlemode receive end of Extron's FOX II DP 4K fiber optic extender, built for DisplayPort runs measured in kilometres rather than metres.

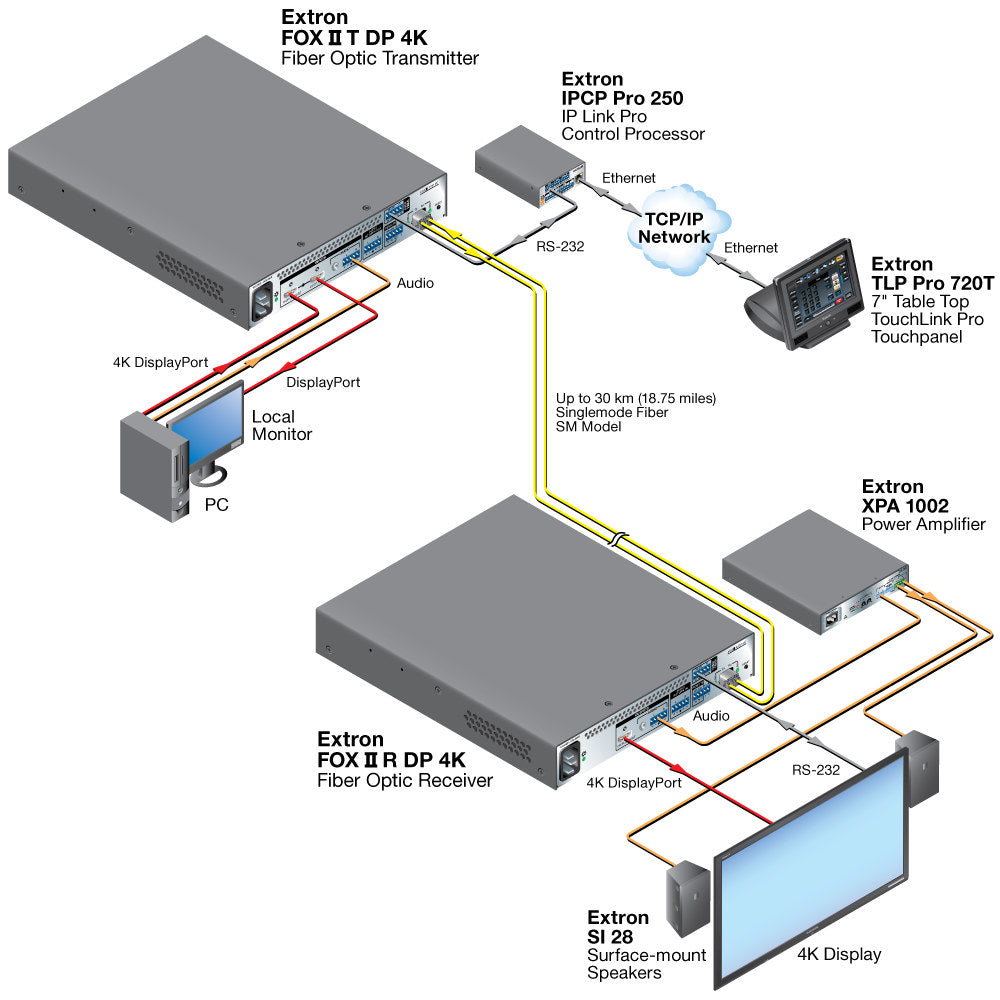

This is the long-haul order code. Where the MM build tops out inside a single building, the SM version drives 1310 nm optics across singlemode fiber for a stated reach of 30 km (18.75 miles), backed by a 13 dB optical loss budget and receiver sensitivity down to -18 dBm typical. At the far end it rebuilds a DisplayPort signal with embedded digital audio, two buffered analog audio outputs, and bidirectional RS-232 and IR, all from a pair of LC-terminated fibers. EDID emulation keeps source and display negotiating cleanly across the span.
Key Capabilities
- Singlemode optical link rated to 30 km (18.75 miles) at a 1310 nm nominal peak wavelength
- 13 dB maximum optical loss budget with -18 dBm typical receiver sensitivity, giving real margin on spliced plant
- One female DisplayPort output carrying video plus embedded digital audio
- Supports 640x480 through 4096x2160 at 30 Hz, UHD, and 1080p at up to 120 Hz
- Analog audio on a 3.5 mm stereo jack and a 5-pole captive screw connector, with gain adjustable from -18 dB to +13 dB
- RS-232 control at 9600 baud plus an independent pass-through channel from 9600 to 115,200 baud
Where It Is Used
Singlemode fiber receivers earn their keep between buildings and across campuses: airport and transit operations centres, utility and process control rooms, multi-building medical campuses feeding imaging displays from a central equipment room, broadcast facilities, and government sites where a 30 km span and galvanic isolation are both requirements rather than nice-to-haves.
Specifications at a Glance
- Optical: 2 fiber, 2 LC connectors, 1310 nm singlemode, 4.25 Gbps optical data rate
- Video: DisplayPort 1.1a / HDMI 1.4 / HDCP 1.3, up to 9.85 Gbps, 300 MHz pixel clock
- Power: internal supply, 100-240 VAC 50-60 Hz, 16.5 watts, 55.0 BTU/hr
- Enclosure: metal half rack, 1.65 in H x 8.7 in W x 8.5 in D, 2.1 lbs (1.0 kg)
- Warranty: 3 years parts and labor; Everlast power supply 7 years
Also referenced as Extron FOXIIRDP4KSM, FOX-II-R-DP-4K-SM, part number 60146222.
