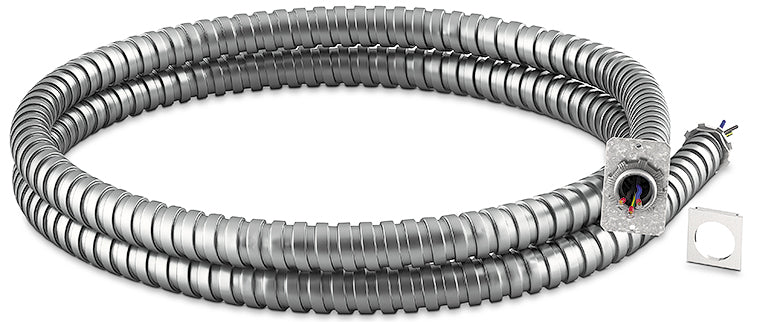

Extron Flexible Conduit Adapter Kit (part number 70-229-01) — the version Extron cut for HSA 200 and HSA 222 enclosures.

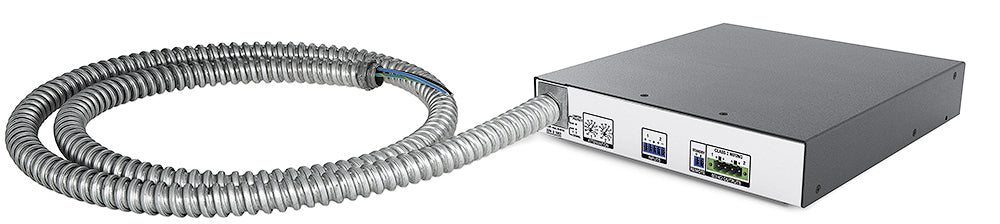

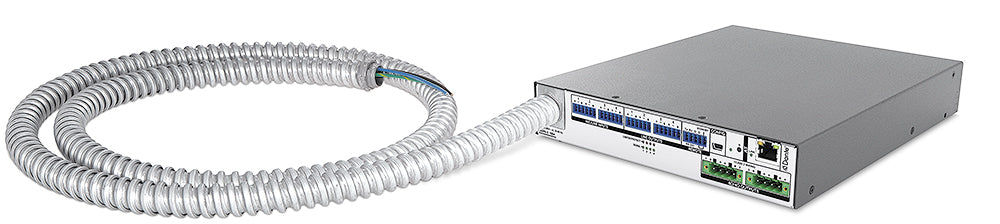

Where code calls for permanent wiring, an HSA 200 or 222 cannot stay on a removable cord. This kit removes that problem in one part: lift out the IEC inlet, mount the supplied conduit adapter plate in the same opening, and the electrician has a proper conduit landing plus conductors to terminate at a distribution box. The plate is drilled for these two enclosures, so nothing has to be cut or modified in the field. UL 2043 heat and smoke release conformance means the finished assembly can sit inside airflow spaces that inspectors treat as plenum.

Key Capabilities

• Extron designates this version for HSA 200 and HSA 222 enclosures.

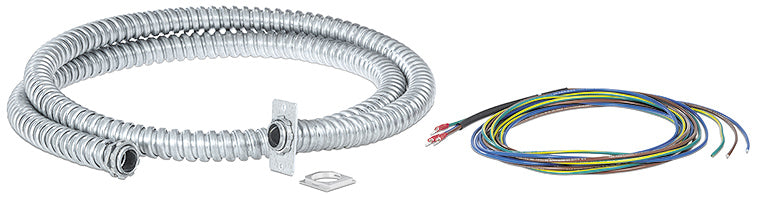

• Plate opening takes 1/2 inch flexible conduit or 3/8 inch liquid tight conduit.
• 6 feet of 1/2 inch flexible conduit is packed with the kit.
• 7 feet of unterminated three-wire cable is supplied for on-site termination.
• Mounting hardware is included with the plate.
• Conforms with UL 2043 heat and smoke release for plenum spaces.

Where It Is Used

Training rooms, classrooms and meeting spaces built around an HSA 200 or HSA 222 architectural connectivity enclosure, plus healthcare and public-sector projects where the electrical permit rules out a cord-connected device.

Specifications at a Glance

• Extron version designation: For HSA 200/222
• Accepts 1/2 inch flexible conduit or 3/8 inch liquid tight conduit
• 6 ft of 1/2 inch flexible conduit supplied
• 7 ft of unterminated, three-wire cable supplied
• Conforms with UL 2043 heat and smoke release

Also referenced as Extron FlexibleConduitAdapterKit, Flexible-Conduit-Adapter-Kit, part number 7022901. Extron lists this part as Retired.
