Extron Flexible Conduit Adapter Kit (part number 70-228-01) — the HSA 822 version of Extron's IEC-to-conduit conversion plate.

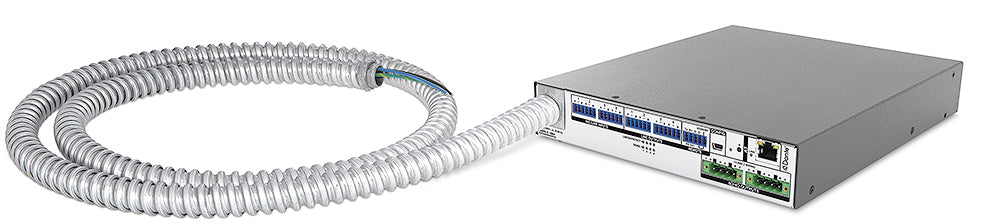

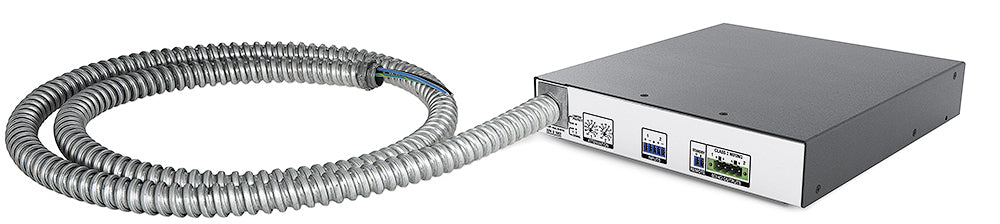

An HSA 822 that has to feed from a permanent branch circuit cannot keep its removable power cord. Extron's answer is this plate, cut to the 822's rear opening: pull the IEC inlet, fit the adapter, and the electrician has a threaded landing for conduit and a set of conductors to terminate at a distribution box. Nothing about the enclosure's mounting footprint changes. The kit conforms with UL 2043 for heat and smoke release, which is what clears it for the enclosed airflow spaces inspectors treat as plenum.

Key Capabilities

• Extron designates this version for the HSA 822 specifically.

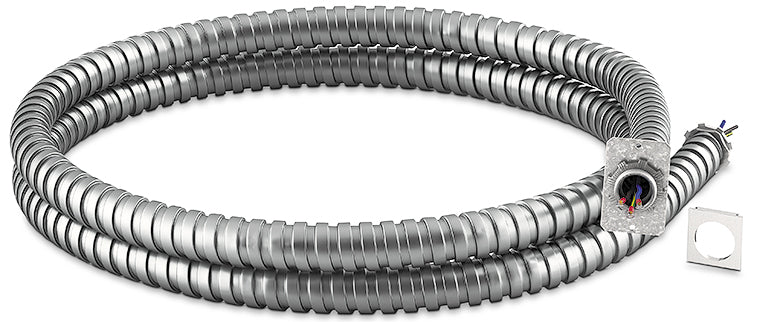

• Opening accepts 1/2 inch flexible conduit, or 3/8 inch liquid tight conduit.

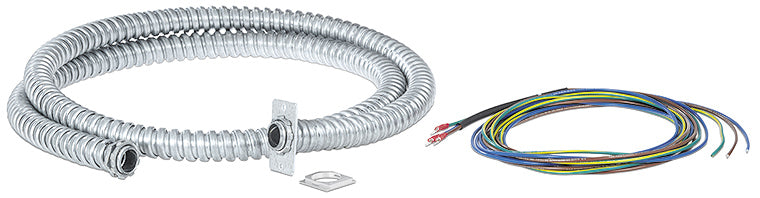

• 6 feet of 1/2 inch flexible conduit ships with the kit.
• 7 feet of unterminated three-wire cable is included for termination on site.
• All mounting hardware needed for the swap is in the box.
• UL 2043 conformance covers heat and smoke release in plenum airspace.

Where It Is Used

Boardroom and huddle-room tables built around an HSA 822 architectural connectivity enclosure, lecture halls, hospital conference spaces, and municipal buildings where the electrical inspector requires fixed wiring rather than a cord to a receptacle.

Specifications at a Glance

• Extron version designation: For HSA 822
• Accepts 1/2 inch flexible conduit or 3/8 inch liquid tight conduit
• 6 ft of 1/2 inch flexible conduit supplied
• 7 ft of unterminated, three-wire cable supplied
• Conforms with UL 2043 heat and smoke release

Also referenced as Extron FlexibleConduitAdapterKit, Flexible-Conduit-Adapter-Kit, part number 7022801. Extron lists this part as Retired.
