Extron Flex55 112 (part number 70-1342-23) - double-size single-opening Flex55 mounting kit, for modules that need one continuous face rather than separate gangs.

The Flex55 112 is the odd one out in the Flex55 100 Series, and deliberately so. Instead of splitting its 151.5 mm width into two gangs, it leaves the opening whole, which is what a one-piece double-size device such as the Flex55 AC+USB 130 US power module requires. Fit something else and the same opening will hold up to four half-size modules, or a mix of up to two full-size modules. Mounting is flexible too: a Flex55 enclosure, a two-gang EU junction box, or straight onto a wall or furniture panel with the supplied wood screws.

Key Capabilities

• One double-size opening for single-piece Flex55 modules

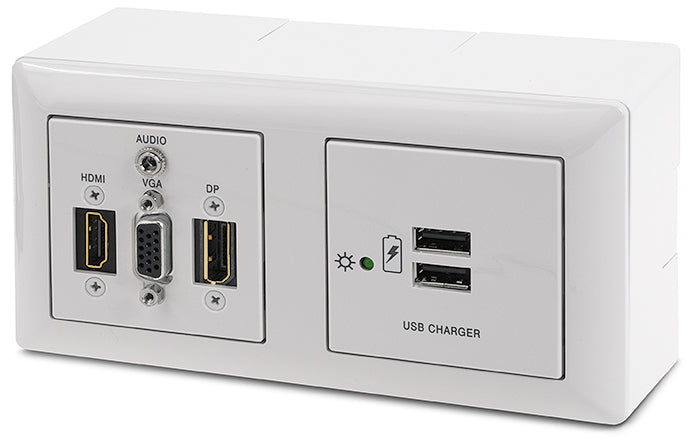

• Also takes up to four half-size or two full-size modules
• Frame measuring 3.17 in H x 5.96 in W x 0.40 in D (80.5 x 151.5 x 10.1 mm)

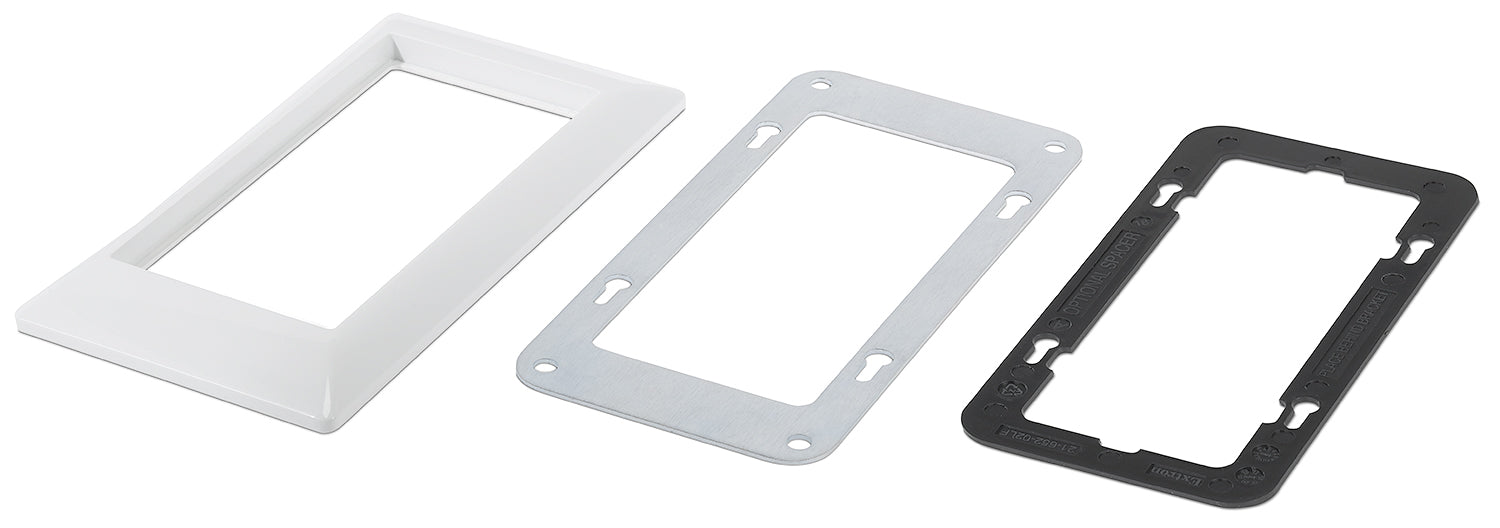

• Metal mounting bracket with high impact plastic trim frame
• Direct wall or furniture mounting when no junction box is present
• 0.2 lbs (0.1 kg); CE, RoHS and WEEE compliant

Where It Is Used

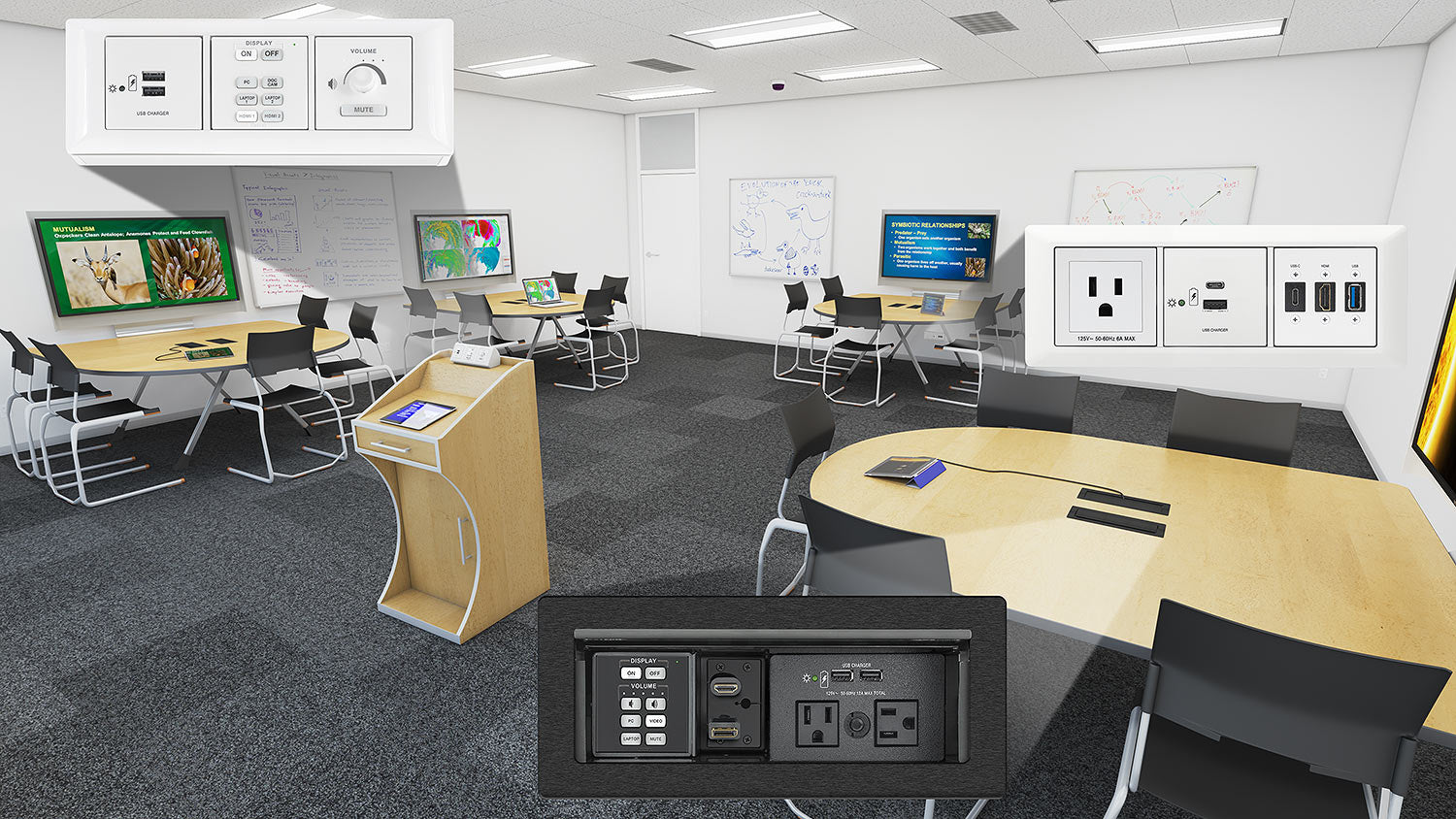

Conference tables, lecterns, credenzas and wall positions where an AC and USB power module has to sit flush in a single opening, including furniture installations that have no enclosure or junction box behind the surface.

Specifications at a Glance

• Configuration: one double-size opening
• Materials: metal bracket, high impact plastic frame
• Frame depth: 0.40 in (10.1 mm)
• Regulatory: CE; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron Flex55112, Flex55-112, part number 70134223.
