Extron Flex55 112 (part number 70-1342-22) — a double-size single-opening mounting kit in the Flex55 100 Series, built for one-piece modules that will not fit a standard gang.

Most Flex55 kits divide their face into gangs. The Flex55 112 does the opposite: it presents one continuous double-width opening, which is what a one-piece module such as the Flex55 AC+USB 130 US power module needs. That same opening will alternatively take up to four half-size modules, or a mix of up to two full-size modules, so the kit stays useful even when the double-size device is not fitted. It mounts to a Flex55 enclosure such as an SMB 212, to a two-gang EU junction box, or directly to a wall or piece of furniture where no junction box exists at all.

Key Capabilities

• Single double-size opening for one-piece Flex55 modules

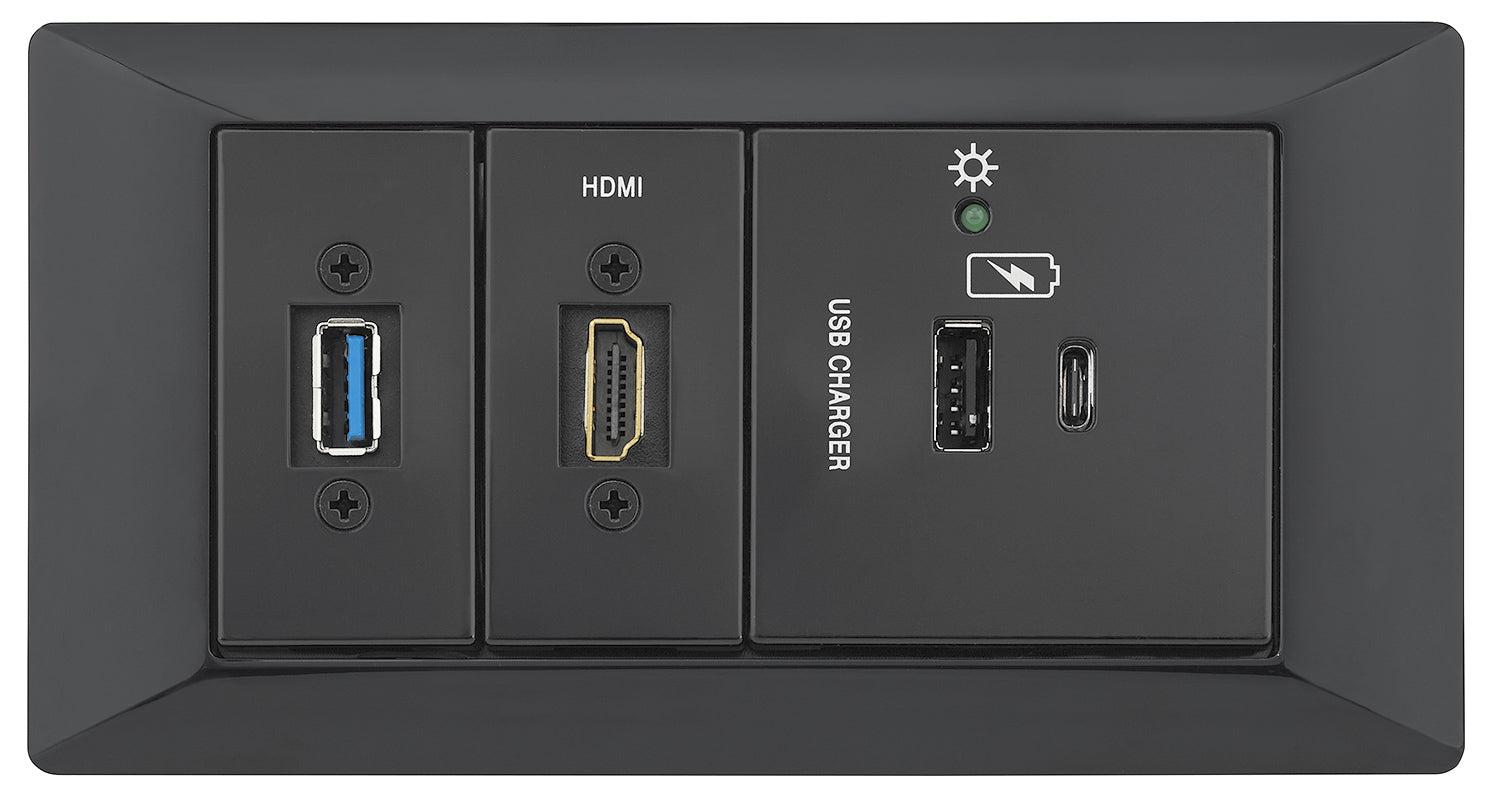

• Alternatively accepts up to four half-size or two full-size modules
• Frame measuring 3.17 in H x 5.96 in W x 0.40 in D (80.5 x 151.5 x 10.1 mm)

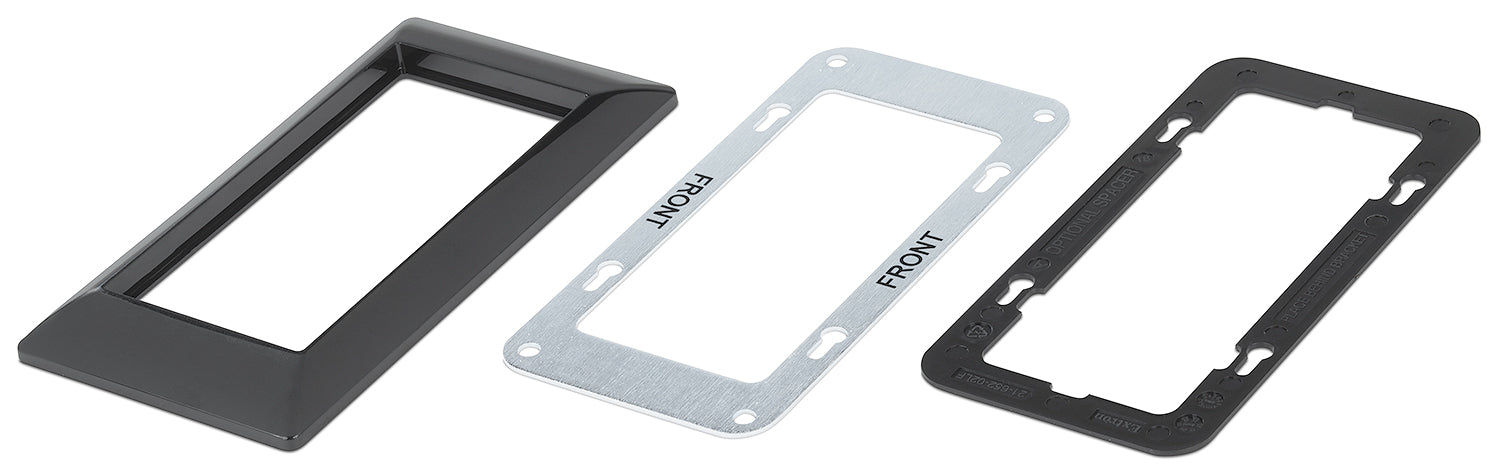

• Metal mounting bracket with high impact plastic trim frame
• Mounts to Flex55 enclosures, two-gang EU junction boxes, walls or furniture
• 0.2 lbs (0.1 kg) with wafer and wood screws supplied

Where It Is Used

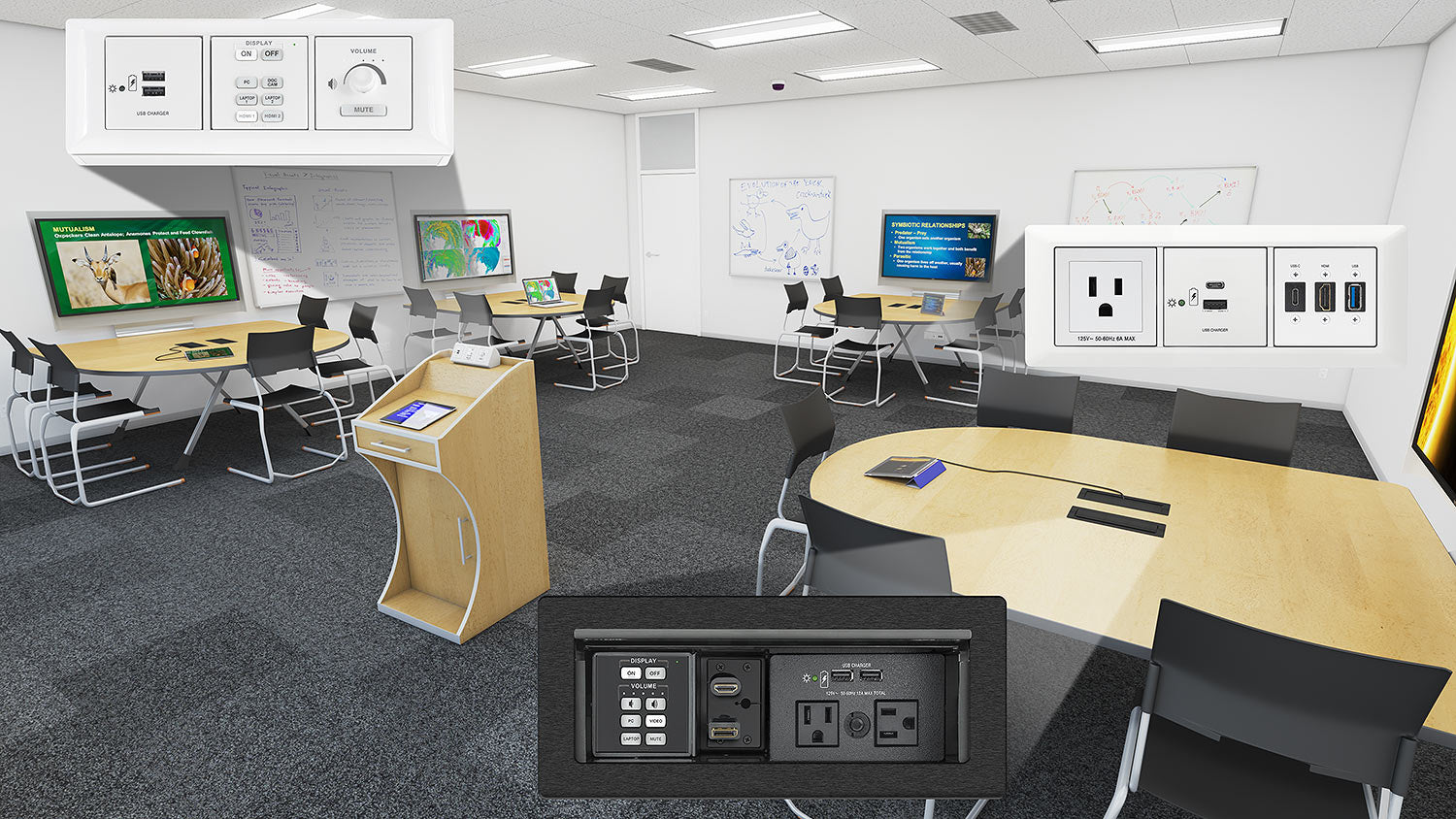

Meeting room tables, lecterns, teaching walls and huddle spaces where a Flex55 AC and USB power module has to be presented as a single unbroken face, including furniture positions with no junction box behind them.

Specifications at a Glance

• Configuration: one double-size opening
• Materials: metal bracket, high impact plastic frame
• Product weight: 0.2 lbs (0.1 kg)
• Regulatory: CE; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron Flex55112, Flex55-112, part number 70134222.
