Extron Flex55 104 Four-Gang Flex55 Mounting Kit
- • Extron Flex55 104 Four-Gang Mounting Kit White
- • Each opening takes one full or two half-size modules
- • Frame 80.5 x 293.5 x 10.1 mm, 0.4 lbs
- • Sales, replacement and exchange
- • Part# 70-1155-43 / 70115543
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

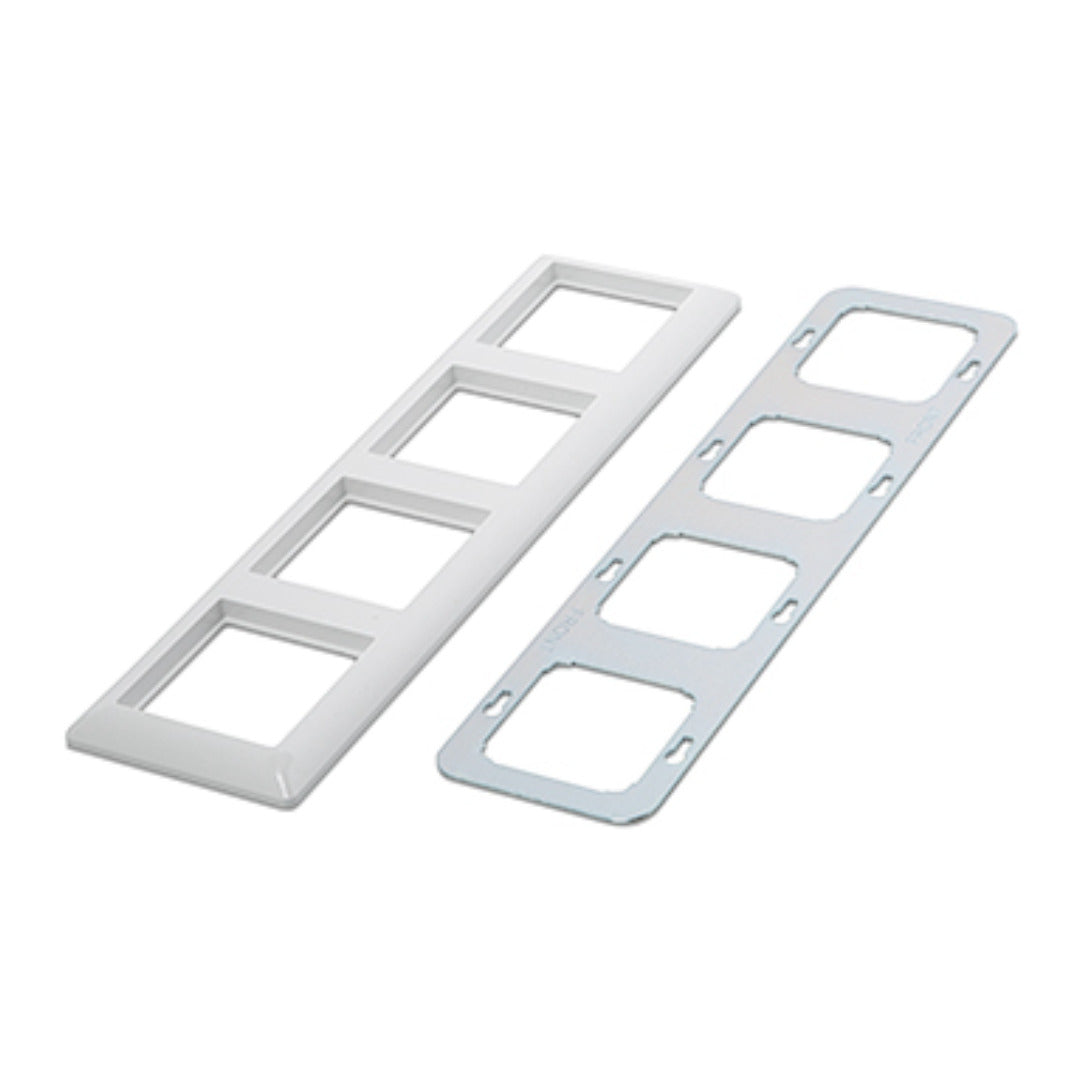

Extron Flex55 104 (part number 70-1155-43) - four-opening white mounting kit, the widest frame Extron offers in the Flex55 100 Series.
This is the frame for a wall position that has to do everything. Its four openings each take a full-size Flex55 or EU module, or a pair of half-size modules, which means up to eight half-size connector functions in one 293.5 mm plate. Behind the trim frame sits a metal mounting bracket that fastens to a Flex55 enclosure or a select EU junction box, and every screw needed for the job ships with the kit.
Key Capabilities
- Four openings, each holding one full-size or two half-size modules
- Frame measuring 3.17 in H x 11.56 in W x 0.40 in D (80.5 x 293.5 x 10.1 mm)
- Metal mounting bracket with high impact plastic trim frame
- Compatible with Flex55 enclosures and select EU junction boxes
- 0.4 lbs (0.2 kg) with mounting hardware supplied
- White finish, Extron part number 70-1155-43
Where It Is Used

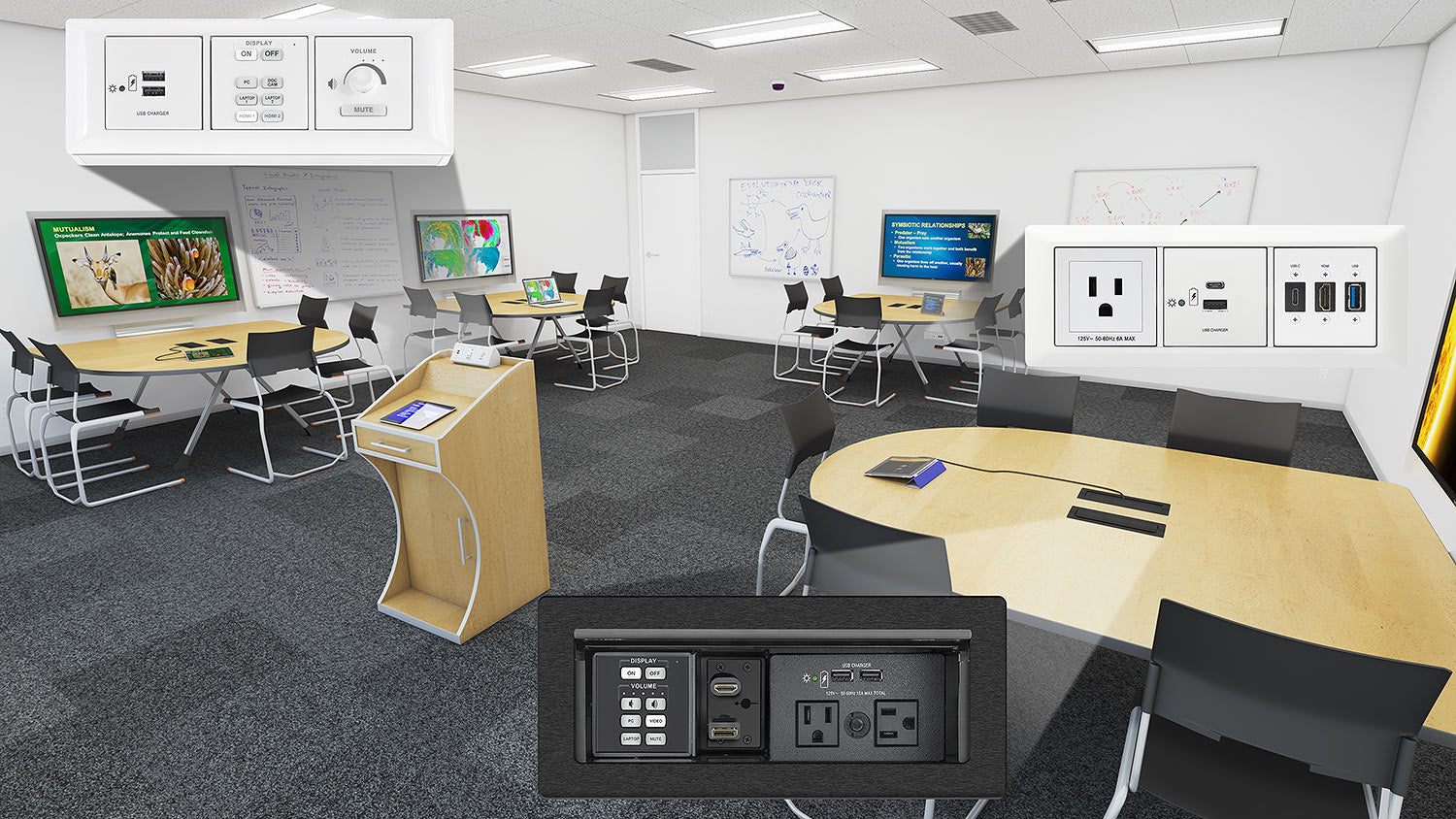

Light-finished European lecture halls, divisible conference spaces, clinical suites and hotel function rooms where a wide white frame consolidates the room's AV connectivity into one wall location.
Specifications at a Glance
- Configuration: four openings, four gangs
- Materials: metal bracket, high impact plastic frame
- Frame depth: 0.40 in (10.1 mm)
- Regulatory: CE; RoHS and WEEE
- Warranty: 3 years parts and labor
Also referenced as Extron Flex55104, Flex55-104, part number 70115543.
Frequently asked questions about the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, White
Does Ampronix sell the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, White (70-1155-43). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, White?
Yes. Ampronix provides sales, replacement and exchange for the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, White. Call Ampronix for a quote.
What are the key features of the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, White?
Key points: Four openings, each holding one full-size or two half-size modules; Frame measuring 3.17 in H x 11.56 in W x 0.40 in D (80.5 x 293.5 x 10.1 mm); Metal mounting bracket with high impact plastic trim frame; Compatible with Flex55 enclosures and select EU junction boxes. Call Ampronix to confirm details for your application.
