Extron Flex55 104 Four-Gang Flex55 Mounting Kit
- • Extron Flex55 104 Four-Gang Mounting Kit Black
- • Each opening takes one full or two half-size modules
- • Frame 80.5 x 293.5 x 10.1 mm, 0.4 lbs
- • Sales, replacement and exchange
- • Part# 70-1155-42 / 70115542
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

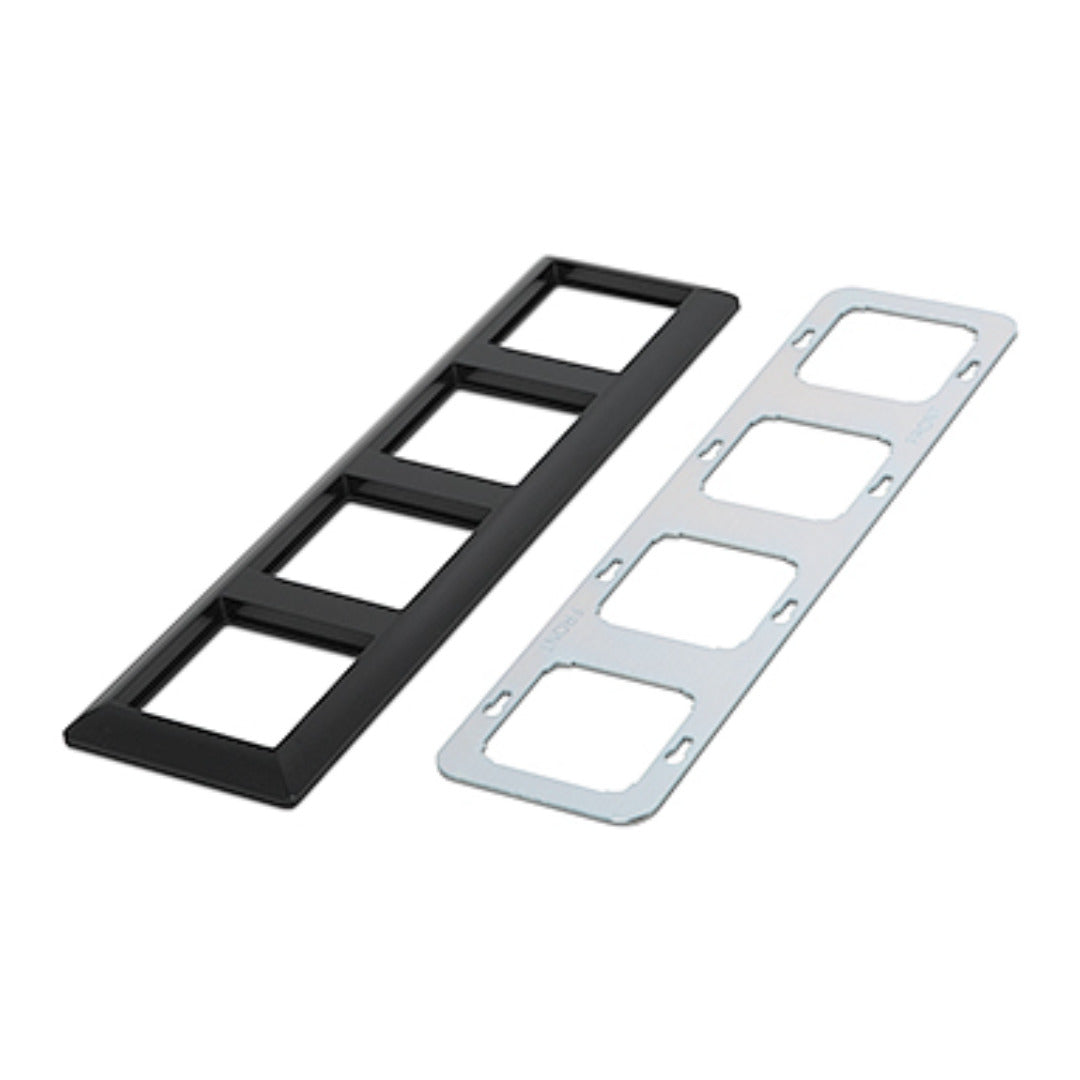

Extron Flex55 104 (part number 70-1155-42) - the four-opening black mounting kit and the largest frame in Extron's Flex55 100 Series.
Four openings is as wide as the Flex55 100 range goes, and it exists for wall positions that consolidate an entire room's connectivity. Each opening accepts one full-size Flex55 or EU module or two half-size modules, so a single frame can carry up to eight half-size functions across 293.5 mm of plate. The kit is a metal mounting bracket plus a high impact plastic trim frame, fastening to a Flex55 enclosure or a select EU junction box with the supplied hardware.
Key Capabilities
- Four openings, each holding one full-size or two half-size modules
- Frame measuring 3.17 in H x 11.56 in W x 0.40 in D (80.5 x 293.5 x 10.1 mm)
- Metal mounting bracket with high impact plastic trim frame
- Fits Flex55 enclosures and select EU junction boxes
- 0.4 lbs (0.2 kg) with all mounting hardware included
- Black finish, Extron part number 70-1155-42
Where It Is Used

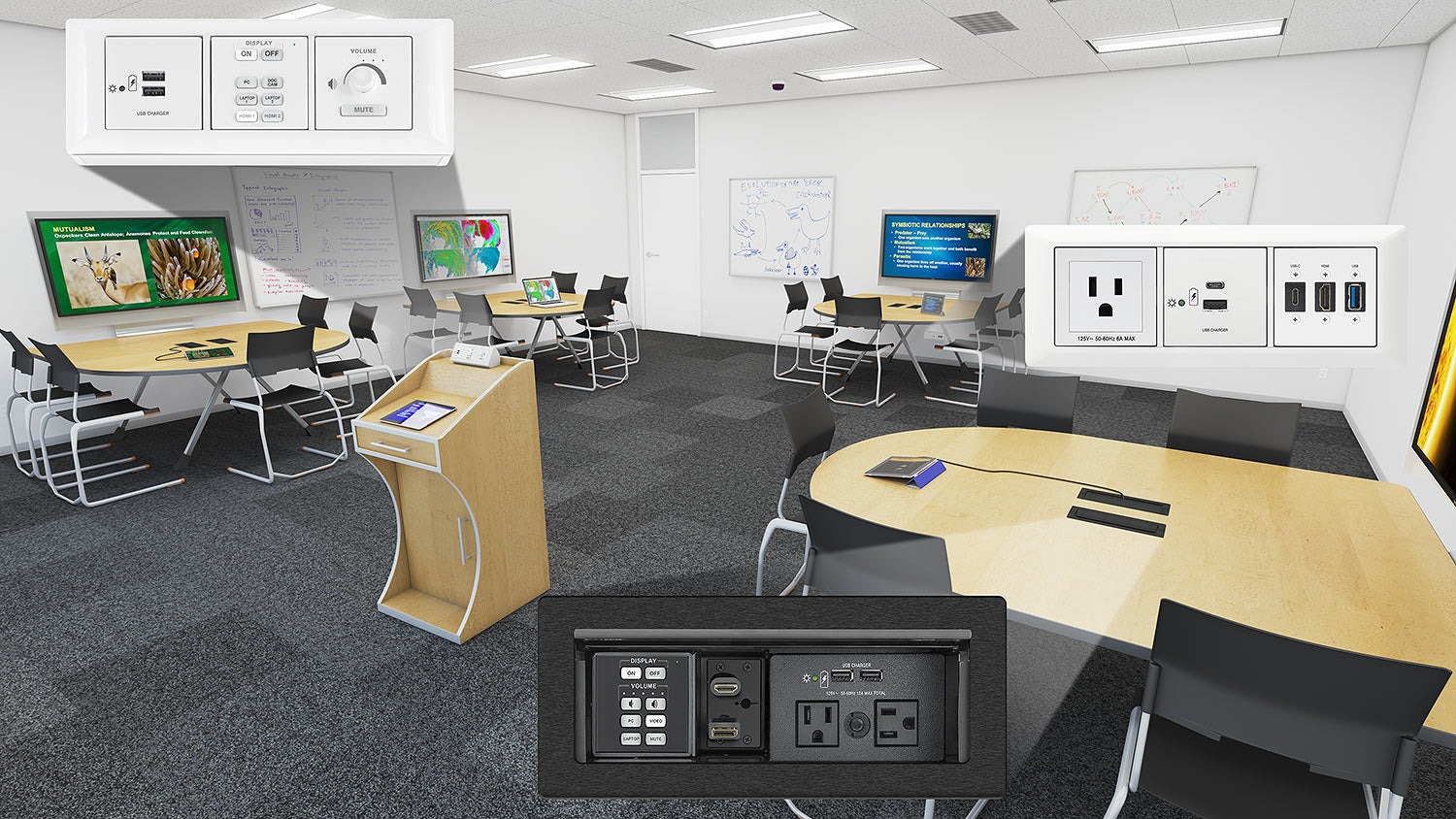

European auditoriums, divisible ballrooms, simulation labs and operations positions where a single wall frame has to hold control, transmission, audio, power and pass-through modules together.
Specifications at a Glance
- Configuration: four openings, four gangs
- Materials: metal bracket, high impact plastic frame
- Product weight: 0.4 lbs (0.2 kg)
- Regulatory: CE; RoHS and WEEE
- Warranty: 3 years parts and labor
Also referenced as Extron Flex55104, Flex55-104, part number 70115542.
Frequently asked questions about the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, Black
Does Ampronix sell the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, Black?
Yes. Ampronix is an authorized Extron distributor and sells the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, Black (70-1155-42). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, Black?
Yes. Ampronix provides sales, replacement and exchange for the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, Black. Call Ampronix for a quote.
What are the key features of the Extron Flex55 104 Four-Gang Flex55 Mounting Kit, Black?
Key points: Four openings, each holding one full-size or two half-size modules; Frame measuring 3.17 in H x 11.56 in W x 0.40 in D (80.5 x 293.5 x 10.1 mm); Metal mounting bracket with high impact plastic trim frame; Fits Flex55 enclosures and select EU junction boxes. Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
