Extron Flex55 103 (part number 70-1155-33) — three-opening white mounting kit from the Flex55 100 Series, for Flex55 enclosures and EU junction boxes.

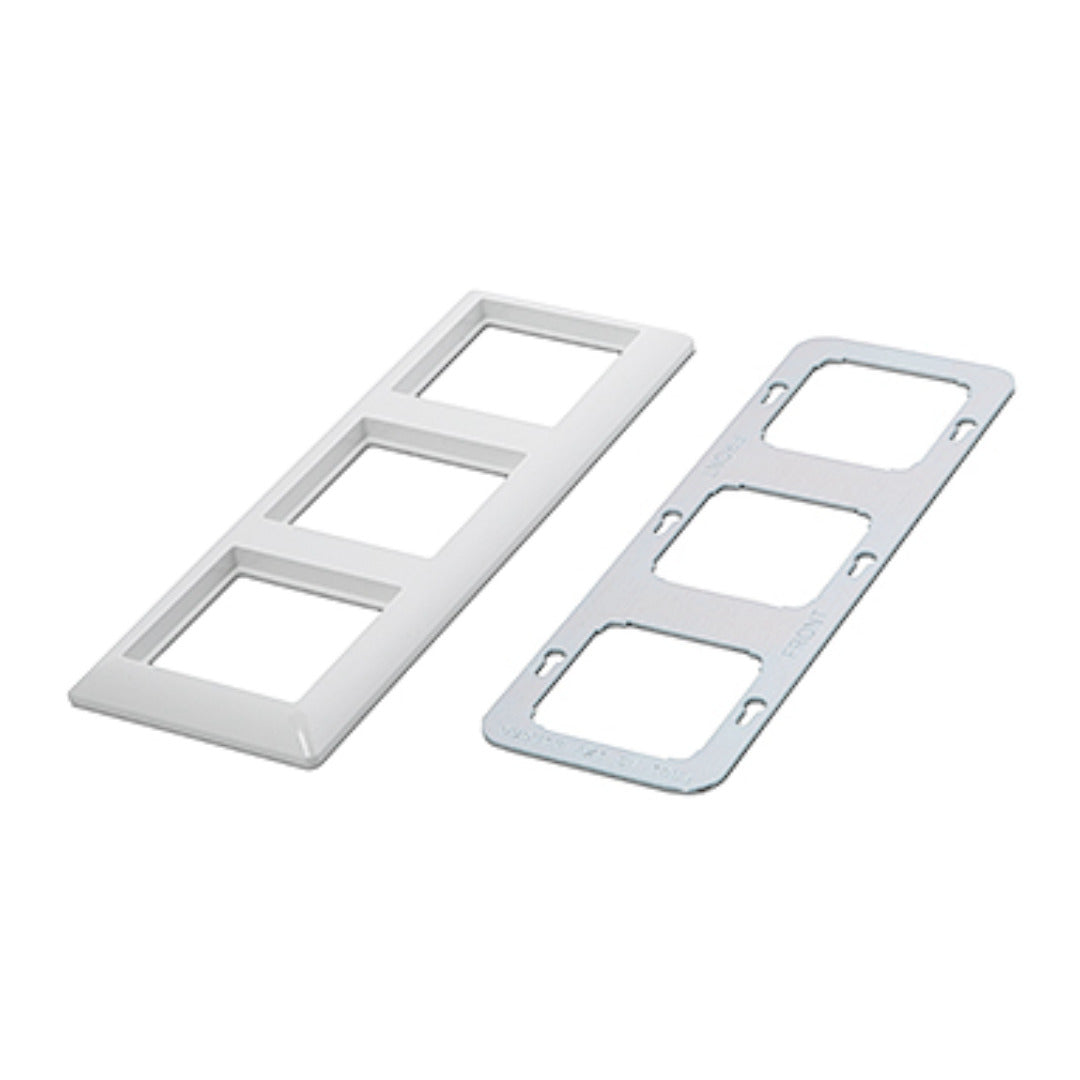

Where a European wall position has to carry a full complement of modules, the Flex55 103 is the frame that holds them. Its three openings each take one full-size Flex55 or EU module, or two half-size modules, which gives up to six half-size functions in a single 222.5 mm wide plate. The kit consists of a metal bracket that fixes to the enclosure or junction box and a plastic trim frame that finishes the face; all mounting hardware is in the box.

Key Capabilities

• Three openings, each holding one full-size or two half-size modules
• Frame measuring 3.17 in H x 8.76 in W x 0.40 in D (80.5 x 222.5 x 10.1 mm)
• Metal mounting bracket with high impact plastic trim frame
• Compatible with Flex55 enclosures and select EU junction boxes
• 0.3 lbs (0.2 kg) with mounting hardware supplied
• White finish, Extron part number 70-1155-33

Where It Is Used

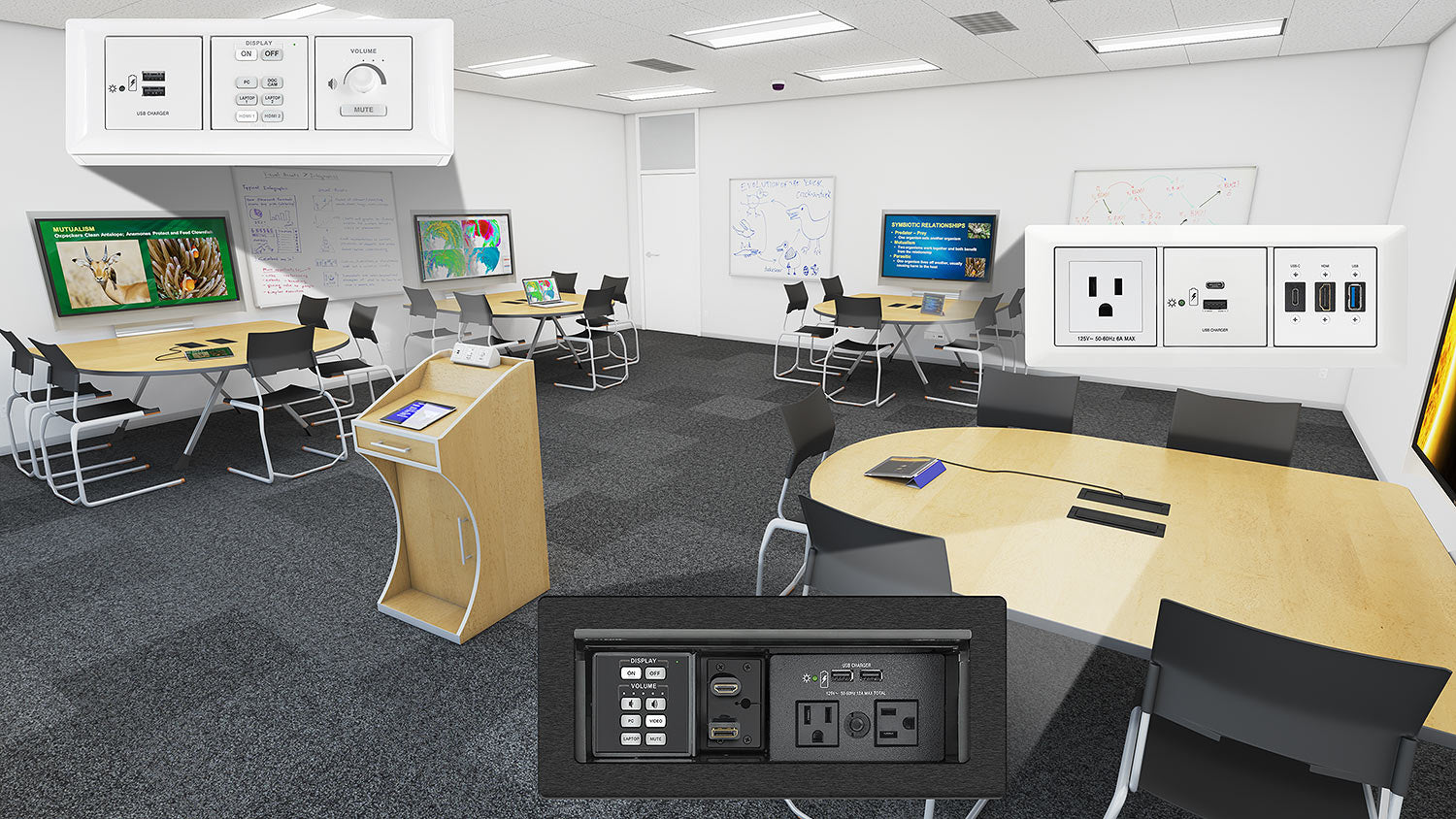

Light-finished European teaching walls, hospital rooms, hotel function spaces and boardrooms where a white frame reads as part of the wall. Commonly specified with EU button panels, DTP T EU 4K transmitters and Flex55 power modules.

Specifications at a Glance

• Configuration: three openings, three gangs
• Materials: metal bracket, high impact plastic frame
• Frame depth: 0.40 in (10.1 mm)
• Regulatory: CE; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron Flex55103, Flex55-103, part number 70115533.
