Extron Flex55 103 (part number 70-1155-32) — the three-opening black mounting kit in Extron's Flex55 100 Series.

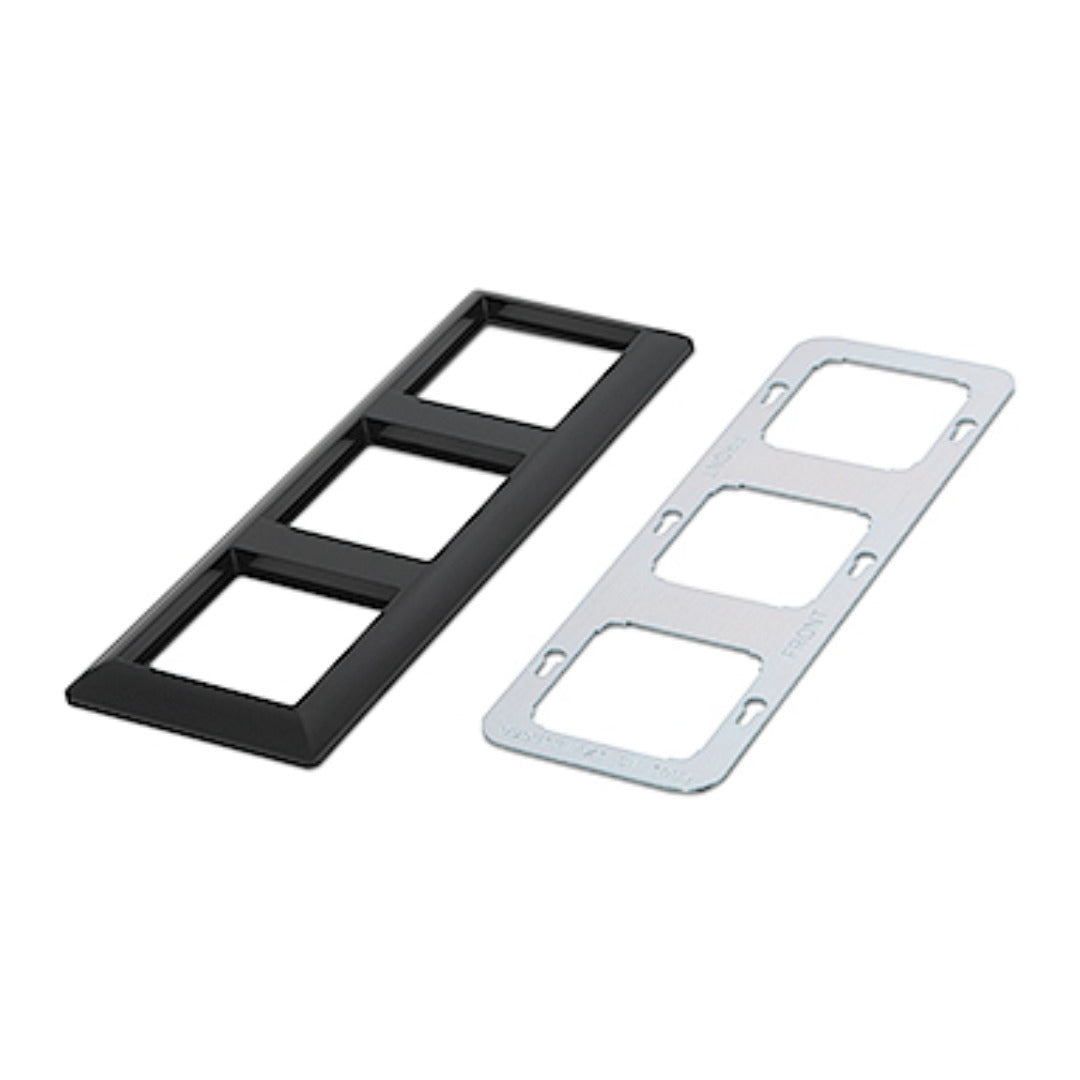

Three openings changes what a wall position can do. Each one accepts a full-size Flex55 or EU module, or two half-size modules, so a single Flex55 103 frame can present up to six half-size connector functions, or mix a transmitter, a power module and a pair of pass-through plates. The kit arrives as a metal mounting bracket and a high impact plastic trim frame, and it fastens to a Flex55 enclosure or a select EU junction box with the hardware supplied.

Key Capabilities

• Three openings, each holding one full-size or two half-size modules
• Frame measuring 3.17 in H x 8.76 in W x 0.40 in D (80.5 x 222.5 x 10.1 mm)
• Metal mounting bracket with high impact plastic trim frame
• Fits Flex55 enclosures and select EU junction boxes
• 0.3 lbs (0.2 kg) with mounting hardware included
• Black finish, Extron part number 70-1155-32

Where It Is Used

European lecture theatres, divisible meeting rooms and control positions where control, transmission, power and pass-through all have to land in one frame. Regularly used with DTP T EU transmitters, NBP EU panels and Flex55 power modules.

Specifications at a Glance

• Configuration: three openings, three gangs
• Materials: metal bracket, high impact plastic frame
• Product weight: 0.3 lbs (0.2 kg)
• Regulatory: CE; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron Flex55103, Flex55-103, part number 70115532.
