Extron Flex55 102 (part number 70-1155-23) — two-opening white mounting kit from the Flex55 100 Series, for Flex55 enclosures and EU junction boxes.

The Flex55 102 is the size most European AV walls end up specifying. Its two openings each accept a full-size Flex55 or EU module, or a pair of half-size modules, which gives the designer real freedom: a transmitter and a power module, or four separate connector plates, all behind one frame. The kit consists of a metal bracket that fixes to the enclosure or junction box and a high impact plastic trim frame that finishes the face. Mounting hardware is included.

Key Capabilities

• Two openings, each holding one full-size or two half-size modules
• Frame measuring 3.17 in H x 5.96 in W x 0.40 in D (80.5 x 151.5 x 10.1 mm)

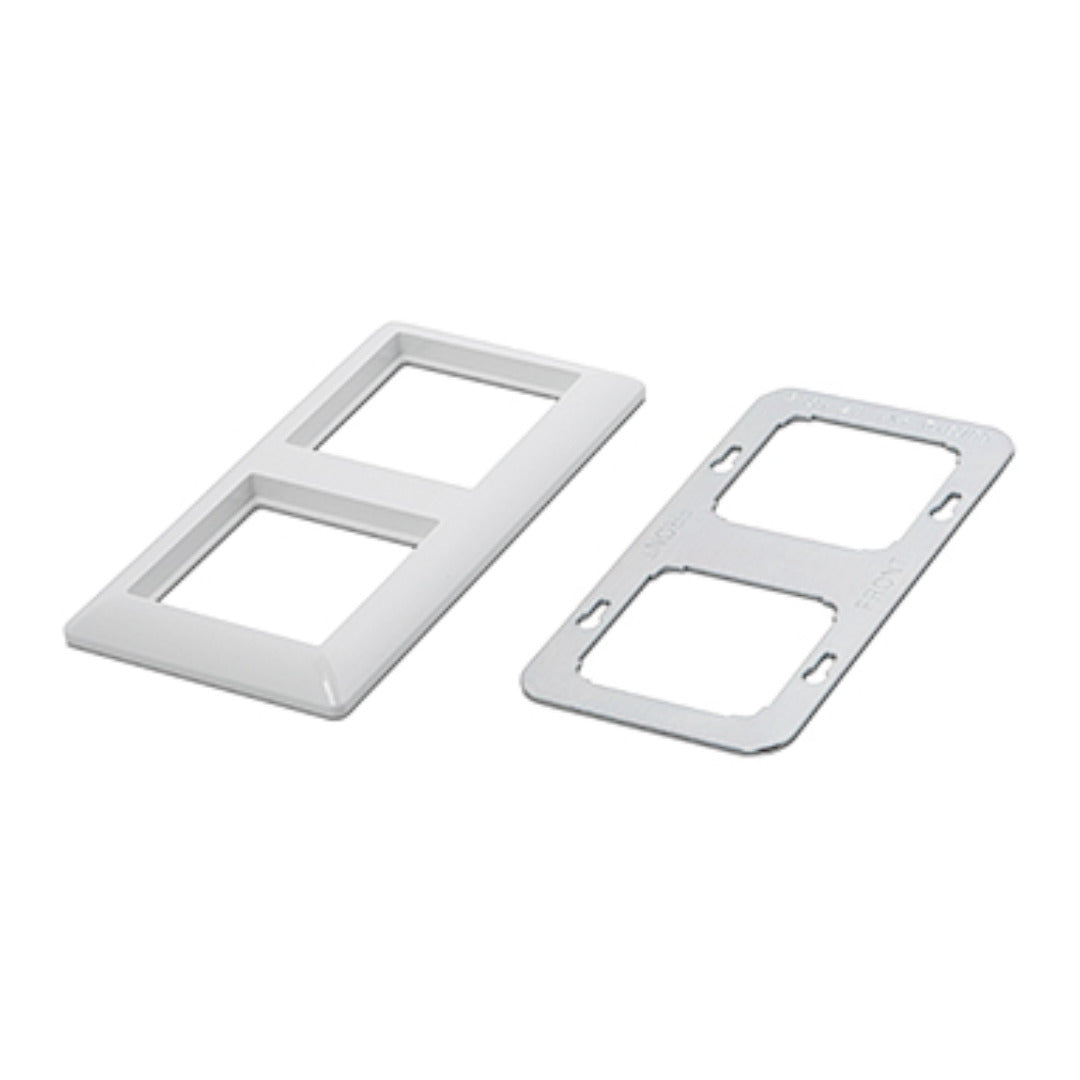

• Metal mounting bracket with high impact plastic trim frame
• Compatible with Flex55 enclosures and select EU junction boxes
• 0.2 lbs (0.1 kg) with all mounting hardware supplied
• White finish, Extron part number 70-1155-23

Where It Is Used

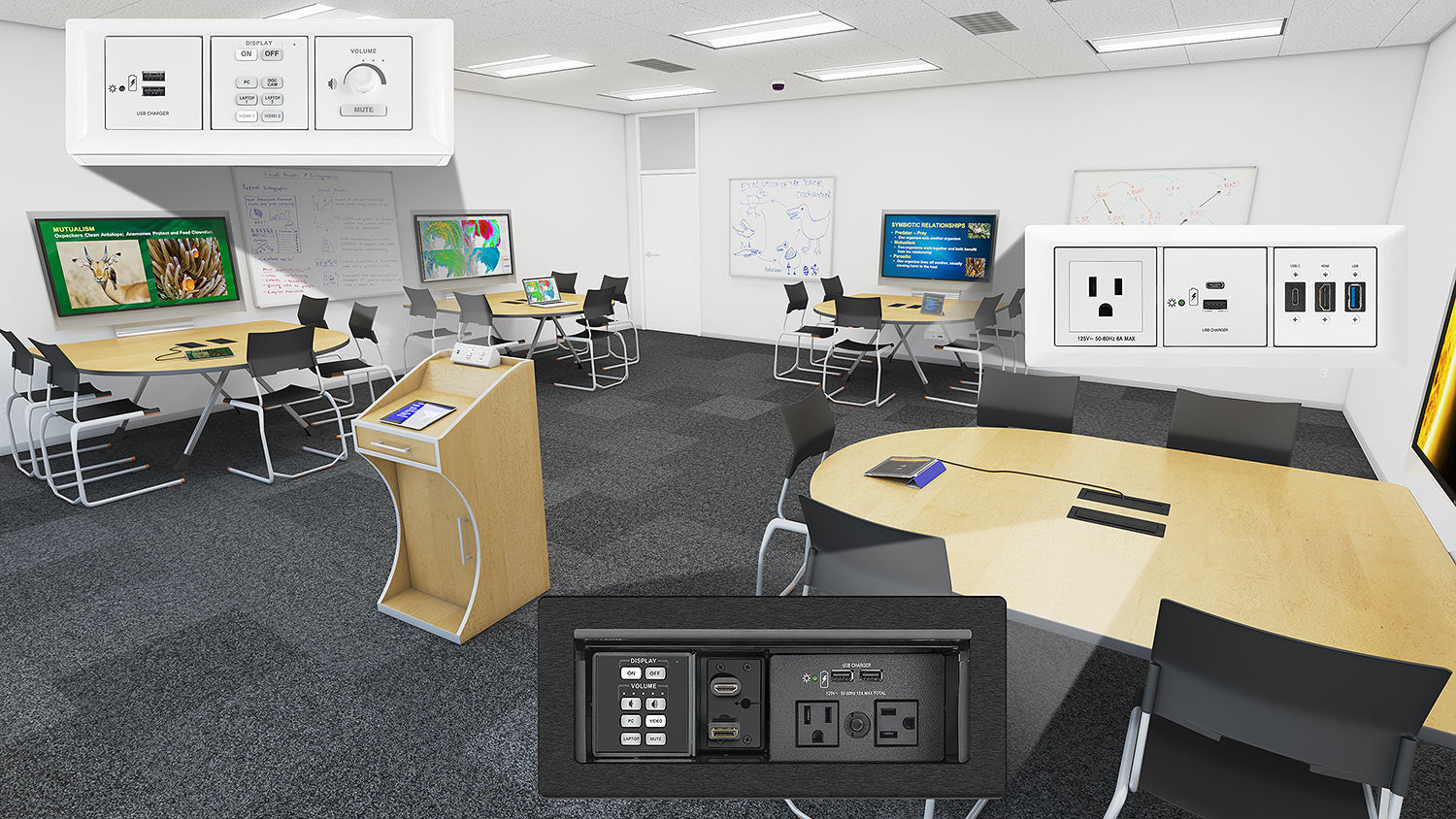

Light-finished European meeting rooms, teaching walls, hotel function spaces and healthcare areas where a white frame disappears into the surrounding plate. Commonly used with NBP EU button panels and DTP T EU 4K transmitters.

Specifications at a Glance

• Configuration: two openings, two gangs
• Materials: metal bracket, high impact plastic frame
• Frame depth: 0.40 in (10.1 mm)
• Regulatory: CE; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron Flex55102, Flex55-102, part number 70115523.
