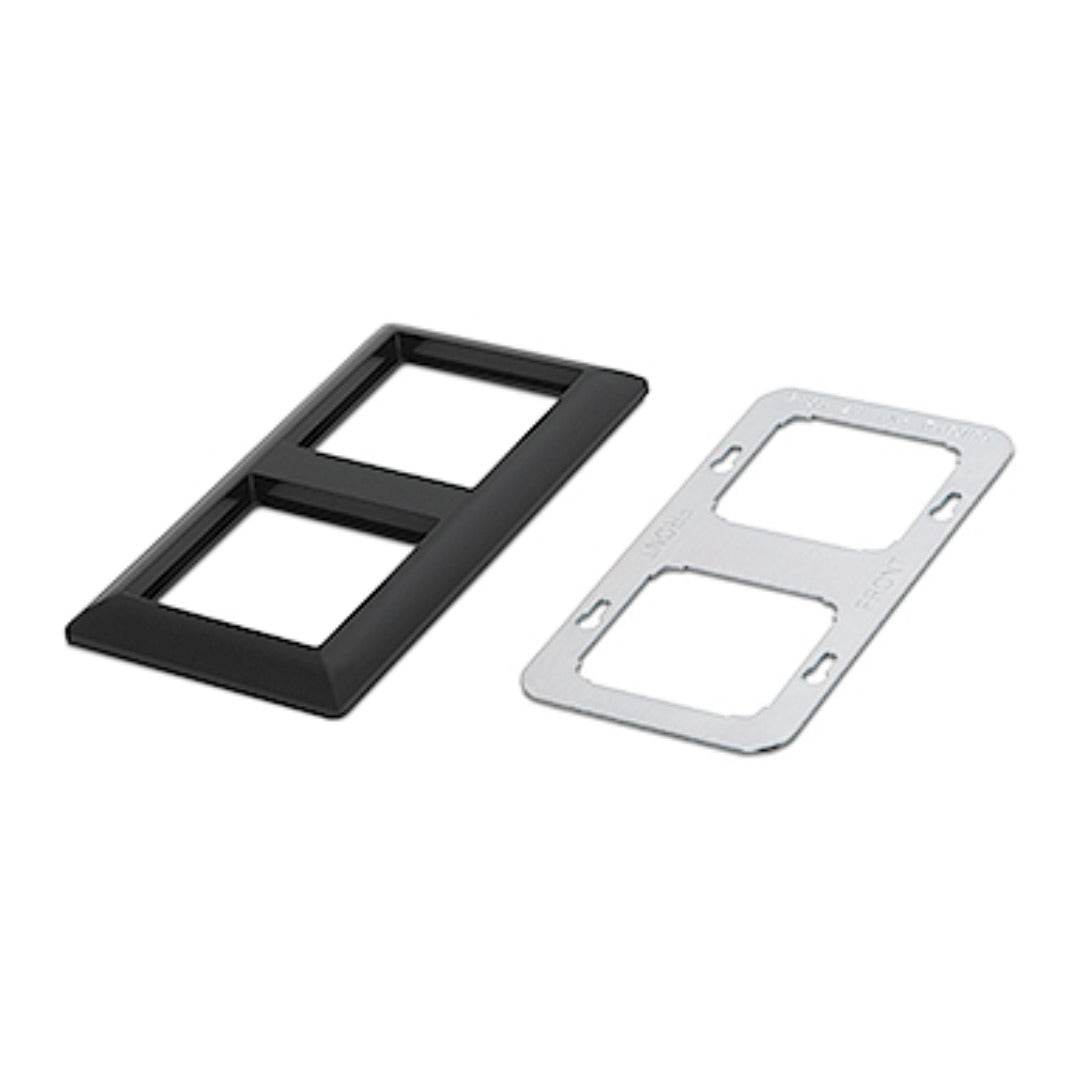

Extron Flex55 102 (part number 70-1155-22) — the two-opening black mounting kit in Extron's Flex55 100 Series.

Two openings is the workhorse size for Flex55 walls. Each opening in the Flex55 102 takes one full-size Flex55 or EU module, or two half-size modules, so a single frame can present up to four half-size connector functions across a two-gang position. The kit is supplied as a metal mounting bracket plus a high impact plastic trim frame, fastening to a Flex55 enclosure or a select EU junction box, with all mounting hardware included.

Key Capabilities

• Two openings, each taking one full-size or two half-size modules
• Frame measuring 3.17 in H x 5.96 in W x 0.40 in D (80.5 x 151.5 x 10.1 mm)
• Metal mounting bracket with high impact plastic trim frame
• Fits Flex55 enclosures and select EU junction boxes
• 0.2 lbs (0.1 kg) with mounting hardware supplied
• Black finish, Extron part number 70-1155-22

Where It Is Used

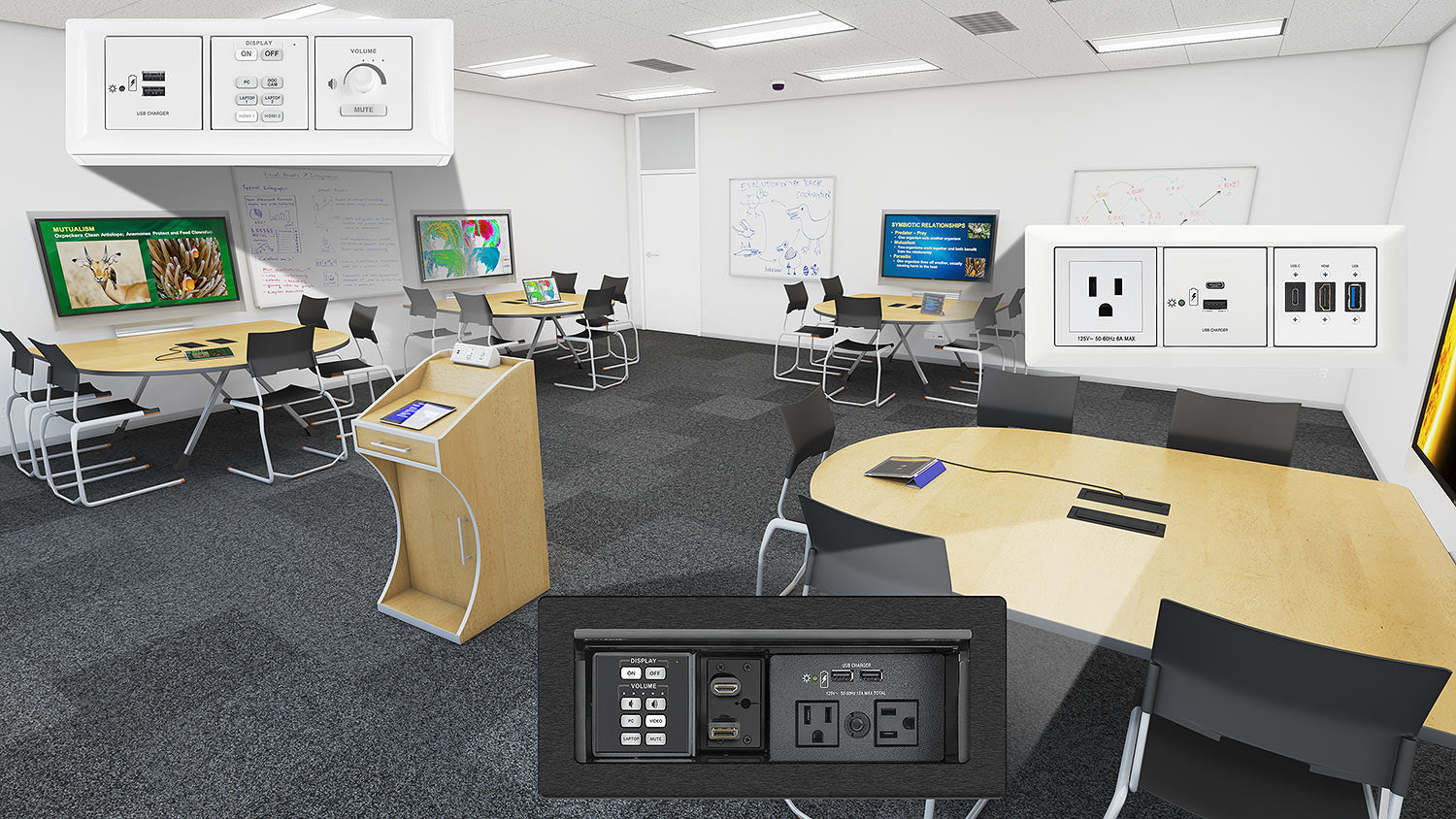

European boardrooms, lecture rooms and clinical spaces where a wall position needs a DTP T EU transmitter alongside pass-through plates, or a control panel next to power and USB modules.

Specifications at a Glance

• Configuration: two openings, two gangs
• Materials: metal bracket, high impact plastic frame
• Product weight: 0.2 lbs (0.1 kg)
• Regulatory: CE; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron Flex55102, Flex55-102, part number 70115522.
