Extron Flex55 101 (part number 70-1155-13) — single-opening white mounting kit from the Flex55 100 Series, for Flex55 enclosures and EU junction boxes.

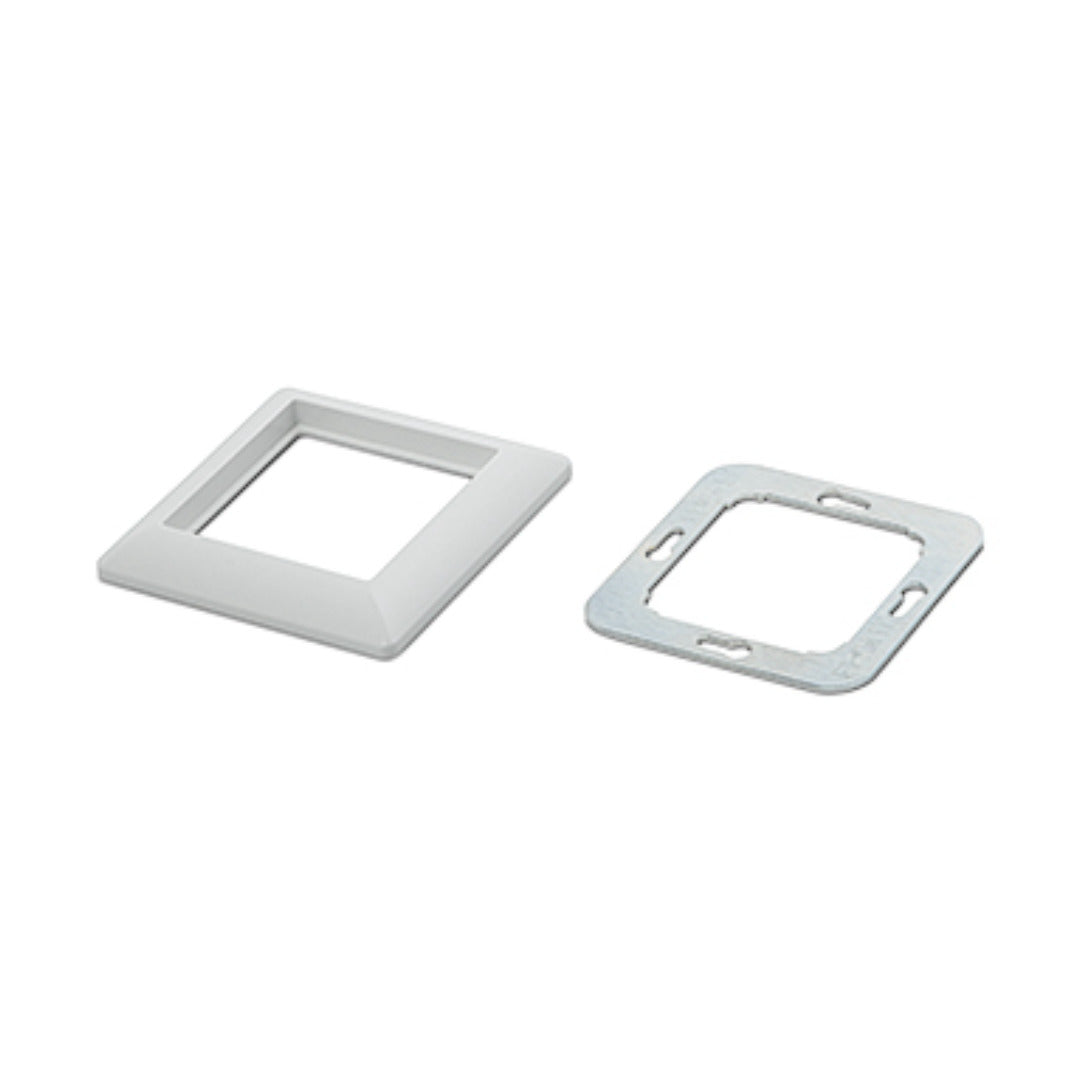

This is the smallest kit in the Flex55 100 range and the one used wherever a wall position only needs one gang. It comprises a metal bracket that fastens to the enclosure or junction box, and a plastic trim frame that snaps over it. The opening takes either a single full-size Flex55 or EU module, or a pair of half-size modules, which is what lets a one-gang plate carry, say, an HDMI barrel and a USB pass-through together. Mounting hardware is in the box.

Key Capabilities

• One opening for one full-size or two half-size Flex55 or EU modules
• Frame measuring 3.17 in H x 3.17 in W x 0.40 in D (80.5 x 80.5 x 10.1 mm)
• Metal mounting bracket paired with a high impact plastic frame
• Compatible with Flex55 enclosures and select EU junction boxes
• 0.1 lbs (0.1 kg) with all mounting hardware included
• White finish, Extron part number 70-1155-13

Where It Is Used

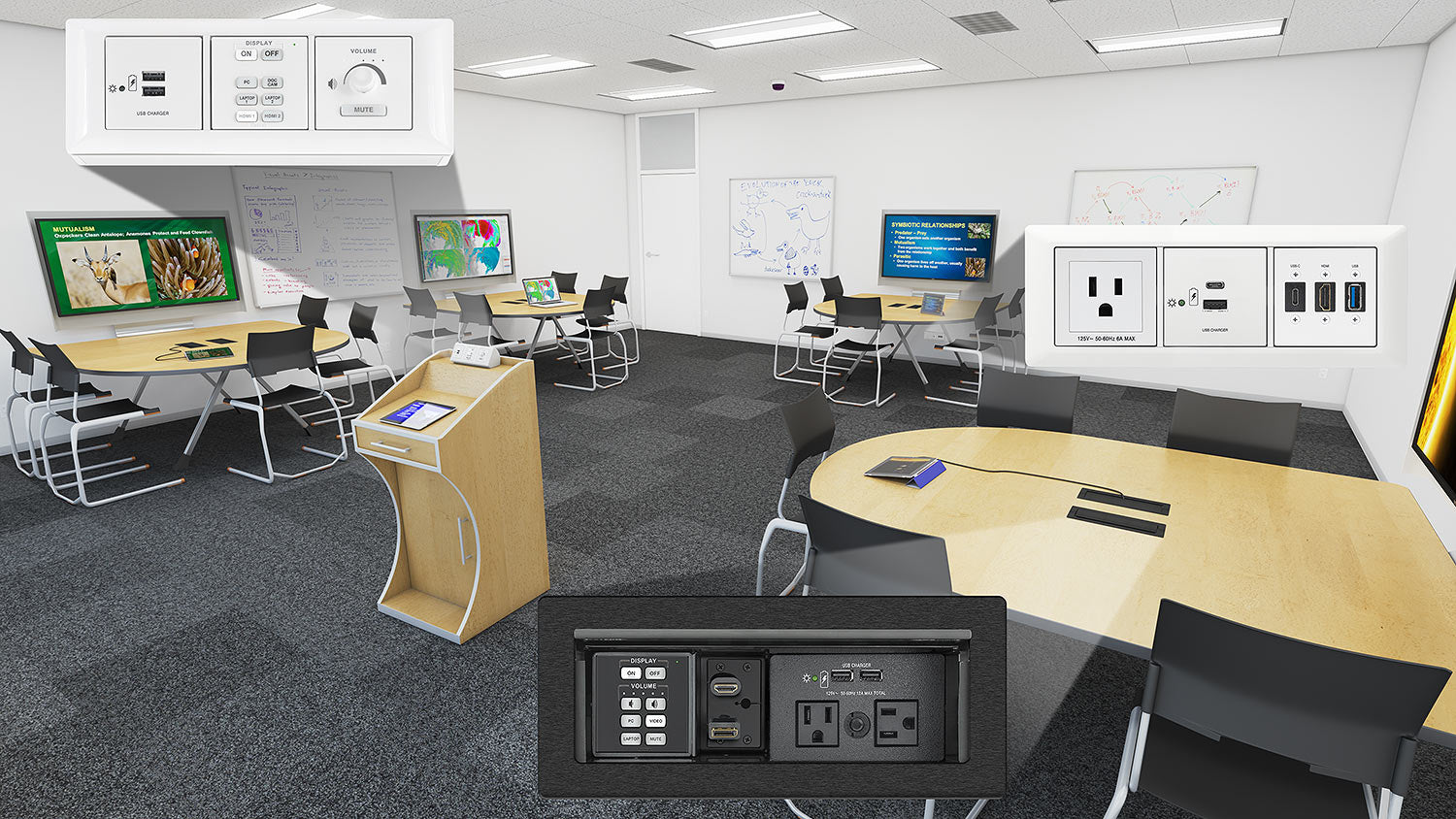

Light-finished European classrooms, huddle rooms, hotel meeting spaces and healthcare areas where a white frame matches the wallplate and surrounding finish. Frequently paired with Flex55 pass-through plates and EU button panels.

Specifications at a Glance

• Configuration: one opening, one gang
• Materials: metal bracket, high impact plastic frame
• Frame depth: 0.40 in (10.1 mm)
• Regulatory: CE; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron Flex55101, Flex55-101, part number 70115513.
