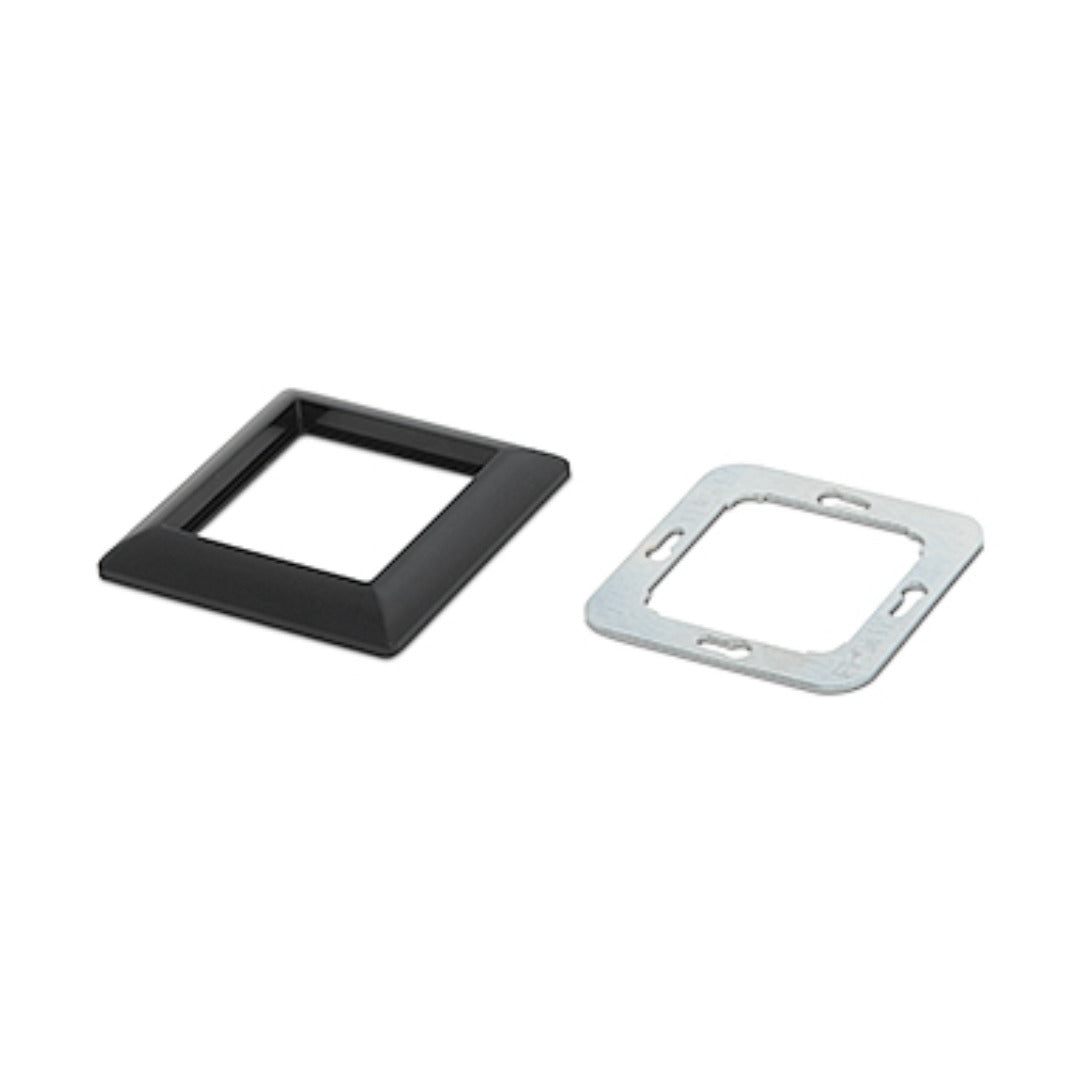

Extron Flex55 101 (part number 70-1155-12) — the single-opening black mounting kit in Extron's Flex55 100 Series, for Flex55 enclosures and EU junction boxes.

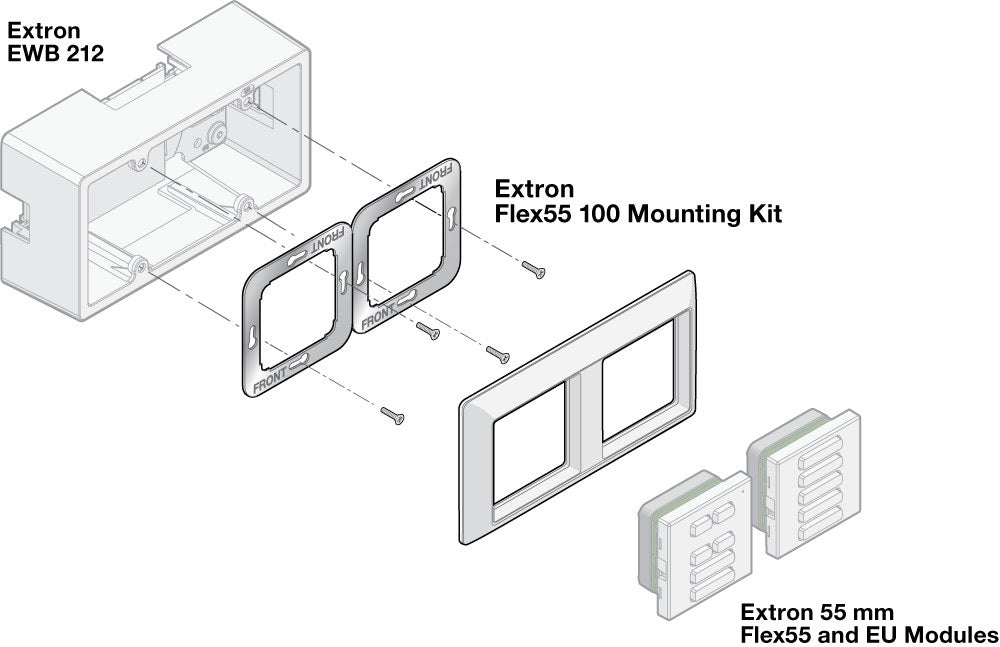

A Flex55 mounting kit is the interface between the wall and the modules. Each kit ships as a metal mounting bracket plus a high impact plastic trim frame, and the bracket screws to a Flex55 enclosure or a select EU junction box. The single opening on the Flex55 101 accepts either one full-size Flex55 or EU module, or two half-size modules, so a one-gang position can still carry two connector functions. All required mounting hardware is included.

Key Capabilities

• One opening holding one full-size or two half-size Flex55 or EU modules
• Frame measuring 3.17 in H x 3.17 in W x 0.40 in D (80.5 x 80.5 x 10.1 mm)
• Metal mounting bracket with a high impact plastic trim frame
• Fits Flex55 enclosures and select EU junction boxes
• Weighs 0.1 lbs (0.1 kg); mounting hardware supplied
• Black finish, Extron part number 70-1155-12

Where It Is Used

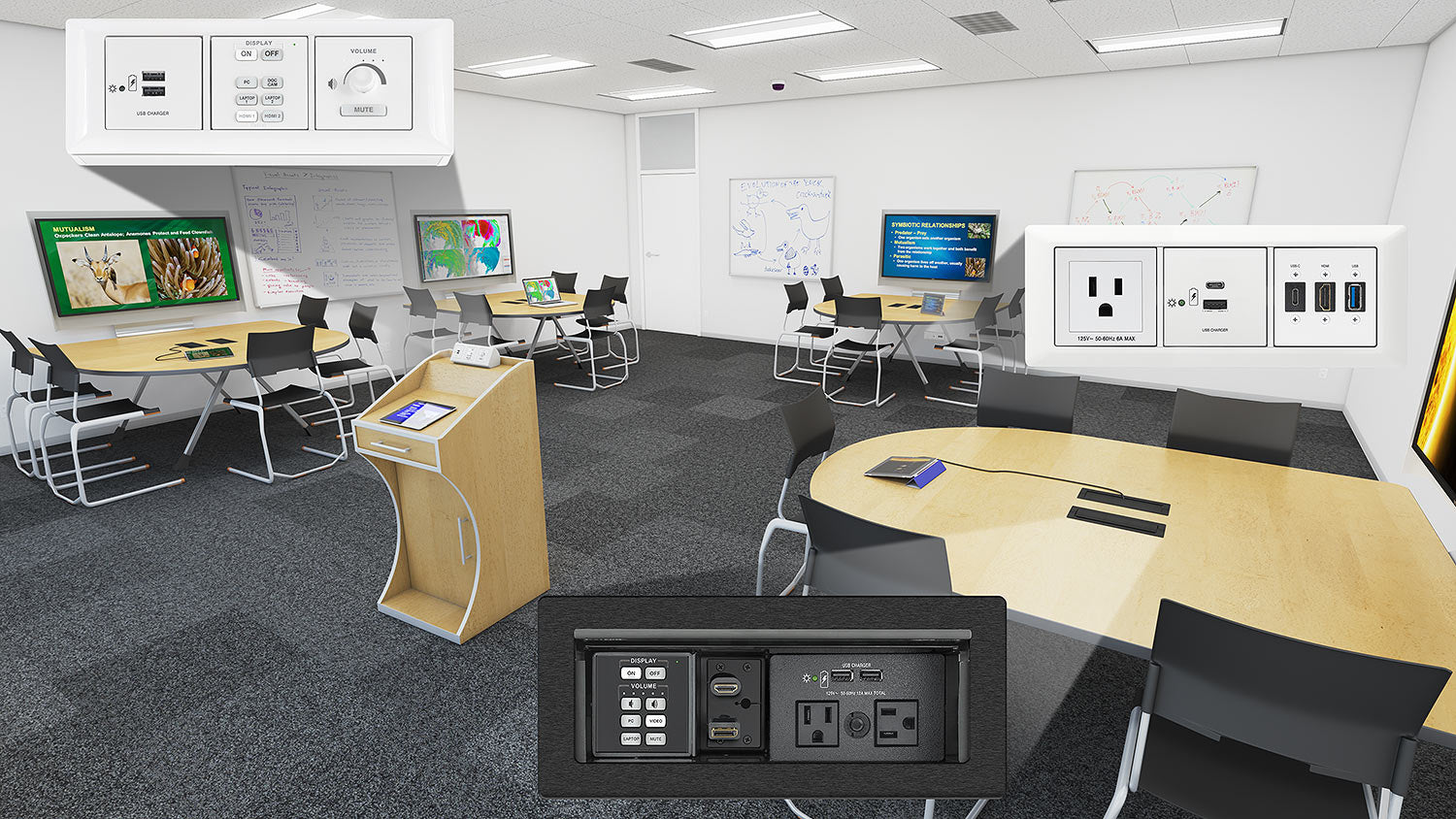

European and international meeting rooms, teaching spaces and clinical areas building out a single-gang wall position with Flex55 pass-through plates, DTP T EU transmitters or NBP EU button panels.

Specifications at a Glance

• Configuration: one opening, one gang
• Materials: metal bracket, high impact plastic frame
• Product weight: 0.1 lbs (0.1 kg)
• Regulatory: CE; RoHS and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron Flex55101, Flex55-101, part number 70115512.
