Extron FF 220T 600 x 600 mm Ceiling Speaker Pair 42-141-23

Details

Manufacturer: Extron; Model: FF 220T; Part number: 42-141-23 (also written 4214123)

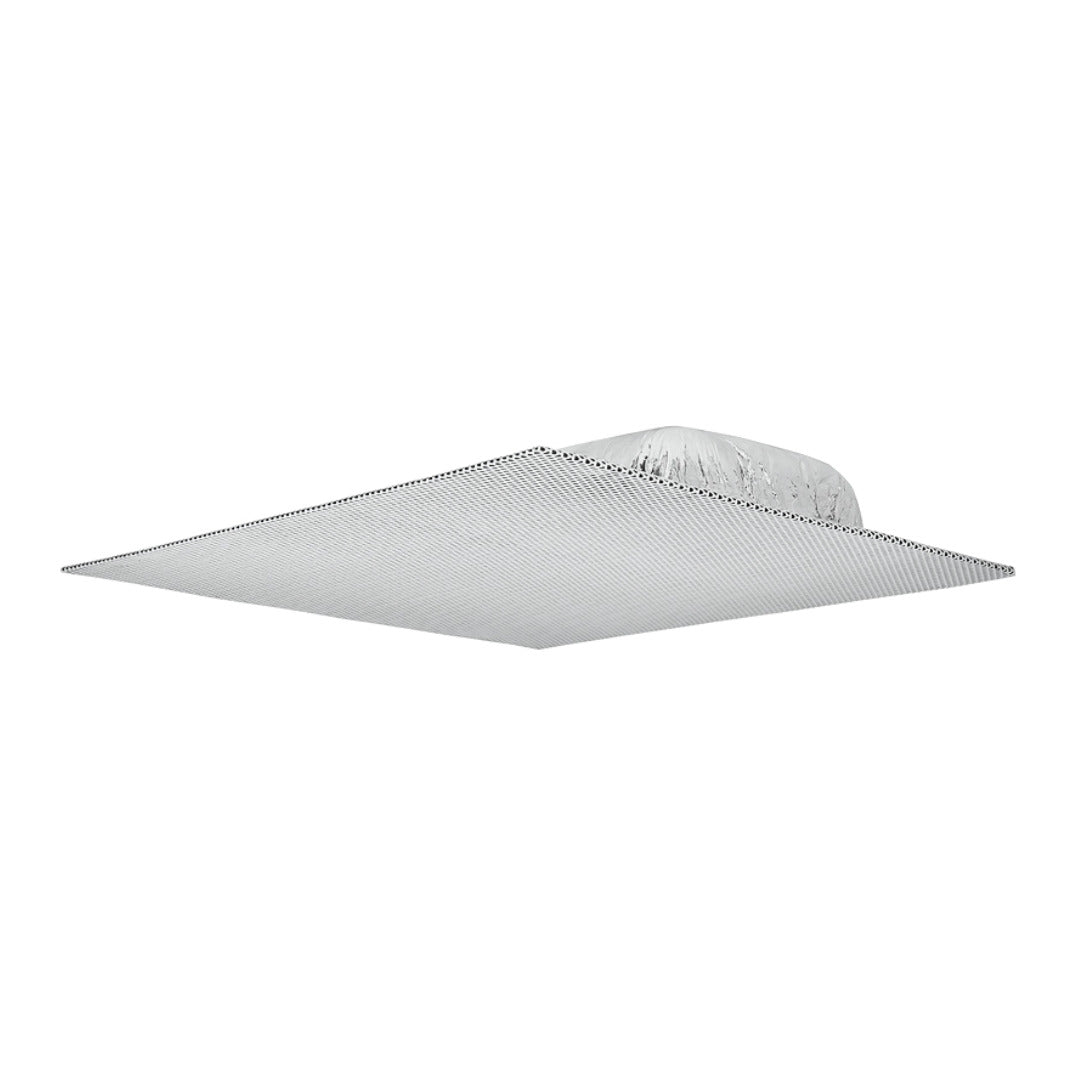

The Extron FF 220T (42-141-23) is a new pair of 600 mm x 600 mm metric drop-in ceiling speakers available through Ampronix with 70V/100V transformers built in. Dimensioned at 23.4 in (59.4 cm) square to seat correctly in 600 mm x 600 mm and 600 mm x 1200 mm metric grids. Extron's patented Flat Field loading for even coverage, 170° conical pattern, and 3.25 in depth for tight plenum clearances. Plenum rated.

Key capabilities

Sized for 600 mm x 600 mm and 600 mm x 1200 mm metric suspended grids
Flat Field technology for even mid and high frequency coverage across the listening plane
170° conical coverage from a 3 in paper-cone full-range driver
16 W, 8 W, 4 W, 2 W, and 1 W taps on 70V or 100V; null for 8 ohm direct
3.25 in deep plenum-rated composite enclosure

Where it is used

European, Middle Eastern, and Asia-Pacific meeting rooms, lecture theaters, and boardrooms on metric ceiling grids where even coverage and plenum rating are required.

Specifications at a glance

Enclosure: 3.25 in H x 23.4 in W x 23.4 in L (59.4 cm square)
Power: 16 W rms pink noise, 32 W rms program per pair
Warranty: 5-year parts and labor

Frequently asked questions about the Extron FF 220T 600 x 600 mm Ceiling Speaker Pair

Is the Extron FF 220T 42-141-23 available new or refurbished?

Ampronix stocks the FF 220T (42-141-23) as a new unit through its authorized Extron distribution agreement.

Is the FF 220T 42-141-23 compatible with both 600x600 and 600x1200 ceiling tiles?

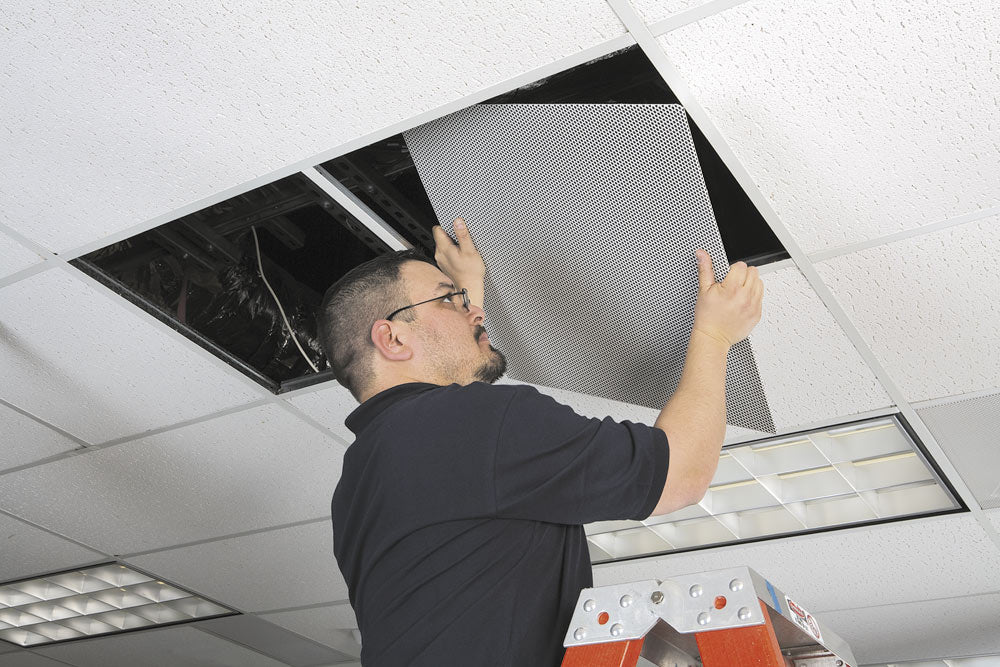

Yes. The 59.4 cm square enclosure drops into 600 mm x 600 mm tiles and also installs into 600 mm x 1200 mm tiles with the supplied cross bars.

Does Ampronix offer replacement and exchange for the Extron FF 220T metric version?

Yes. Ampronix provides sales, replacement and exchange for the FF 220T and the broader Extron speaker line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron FF 220T? Ampronix provides sales, replacement and exchange for this product and the broader Extron audio line.

Also referenced as Extron FF220T, FF-220T, part number 4214123.

Specifications

Part Number: 42-141-23

Manufacturer: Extron

Model: FF 220T (metric 600 mm x 600 mm version)

Condition: New

Speaker Type: 1-way, full-range, in-ceiling speaker

Driver: (1) 3" (76.2 mm) paper cone

Frequency Range: 68 Hz to 18 kHz, -10 dB, half space

Power Capacity: 16 W (rms) continuous pink noise (per IEC 60268-5); 32 W (rms) continuous program

Nominal Sensitivity: 86 dB SPL, 1 watt, 1 m, half space

Nominal Coverage Angle: 170° conical coverage

Nominal Impedance: 8 ohms per speaker

Input Connector: (1) 10 mm Euro-style captive screw terminal block, 7 pole

Tap Settings, 70 V Input: 16 W, 8 W, 4 W, 2 W, 1 W, null (bypass 8 ohm direct connection)

Tap Settings, 100 V Input: Null, 16 W, 8 W, 4 W, 2 W, 1 W (bypass 8 ohm direct connection)

Package: 2 speakers (1 pair) with 2' (61 cm) cross bars

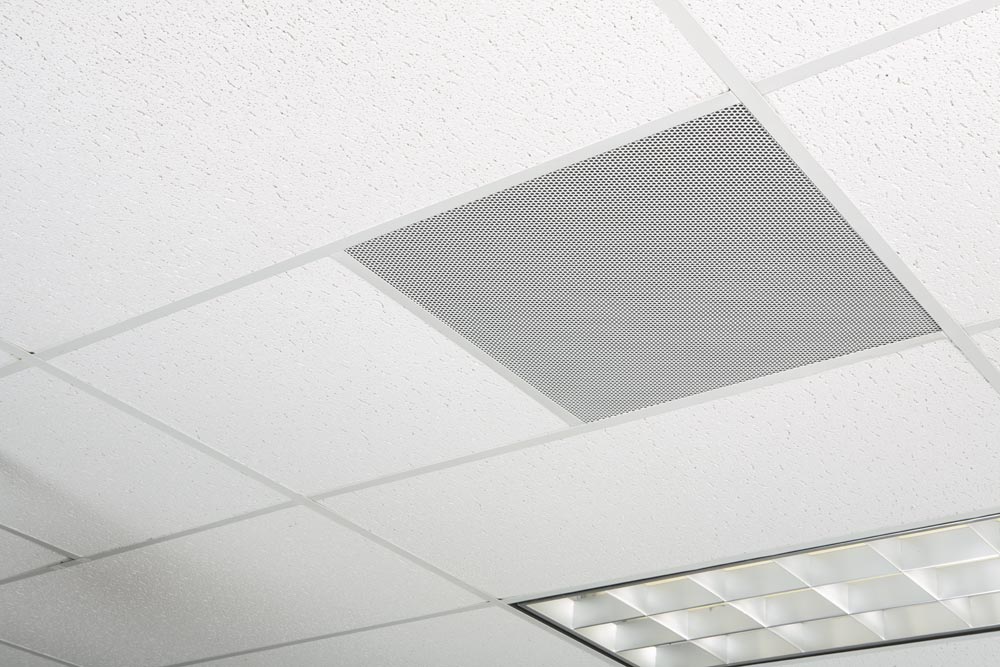

Mounting: Drops into 600 mm x 600 mm or 600 mm x 1200 mm suspended tile ceilings

Enclosure Type: Composite, square, with metal grille

Enclosure Outer Dimensions: 3.25" H x 23.4" W x 23.4" L (8.3 cm H x 59.4 cm W x 59.4 cm L)

Product Weight: Single: 7.8 lbs (3.5 kg)

Shipping Weight: Pair: 21 lbs (10 kg) with mounting kit

Vibration: ISTA 1A in carton (International Safe Transit Association)

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Regulatory Compliance: CE, NFPA90A, NFPA70; UL Listed for use in plenum airspaces, meets UL 2043 for heat and smoke release and UL 1480 for commercial and professional audio systems; complies with the appropriate requirements of RoHS and WEEE

Warranty: 5 years parts and labor

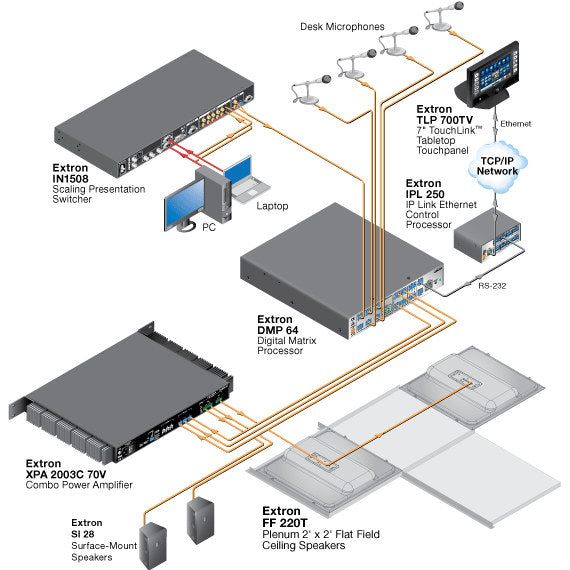

Diagram

Resources

Brochure | FF 220T 42-141-23 | FF 120T, FF 220T (ff120tff220t_reva2.pdf)

Brochure | FF 220T 42-141-23 | FF 120T, FF 220T (ff120t220t_revAcnbro.pdf)

Brochure | FF 220T 42-141-23 | FF 120T, FF 220T (FF-120T_FF-220T_BR_A4_GE_RevA2.pdf)

Brochure | FF 220T 42-141-23 | FF 120T, FF 220T (FF-120T_FF-220T_BR_A4_SP_RevA2.pdf)

Brochure | FF 220T 42-141-23 | FF 120T, FF 220T (FF-120T_FF-220T_BR_A4_FR_RevA2.pdf)

Manual | FF 220T 42-141-23 | FF 220T Setup Guide

Manual | FF 220T 42-141-23 | FF 220T User Guide

Specifications | FF 220T 42-141-23 | FF 120T and FF 220T

Specifications | FF 220T 42-141-23 | FF 220T

Panel Drawing | FF 220T 42-141-23 | FF 220T
