Extron FF 220T US 2' x 2' Ceiling Speaker Pair
- • Pair of 2 ft x 2 ft drop-in speakers for standard US suspended ceiling grids
- • Flat Field technology holds sound level steady across the listening area
- • 170 degree conical dispersion covers wide, low-ceiling rooms with fewer units
- • Selectable 16, 8, 4, 2 and 1 W taps on 70 V or 100 V distributed lines
- • Transformer null setting allows direct 8 ohm connection when preferred
- • UL 2043 plenum rated composite enclosure only 3.25 in deep
- • 68 Hz to 18 kHz range with 86 dB SPL sensitivity at 1 W and 1 m
- • Each speaker weighs 7.8 lbs and ships with 2 ft cross bars
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

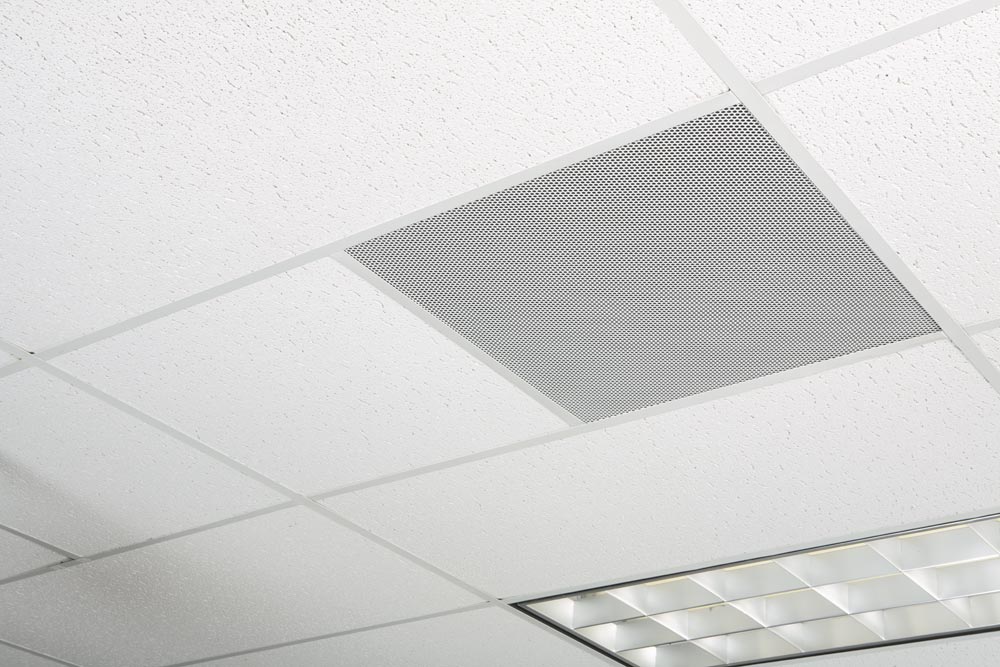

Extron FF 220T (part number 42-141-03) — a pair of 2' x 2' drop-in ceiling speakers for US suspended grids, with 70 V/100 V transformers built in.
This is the square, US-grid member of Extron's Flat Field ceiling line. Its patented driver loading works against the beaming that makes a conventional ceiling speaker loud directly below and thin a few seats away, so levels stay comparable across the room. Paired with a 170° conical pattern, that behaviour lets a designer cover a low-ceiling space using fewer boxes and fewer amplifier channels. The enclosure is just 3.25" deep, which matters when duct work and structure crowd the plenum.
Key Capabilities
- Patented Flat Field design flattens on-axis buildup so coverage stays even seat to seat.
- 170° conical dispersion from one 3" (76.2 mm) full-range paper-cone driver.
- 70 V and 100 V taps at 16 W, 8 W, 4 W, 2 W and 1 W, with a null setting for direct 8 ohm connection.
- UL 2043 plenum listing plus UL 1480 listing for commercial and professional audio systems.
- 86 dB SPL sensitivity (1 W, 1 m, half space) across a 68 Hz to 18 kHz range.
- Supplied as two speakers with 2' (61 cm) cross bars; each unit weighs 7.8 lbs (3.5 kg).
Where It Is Used

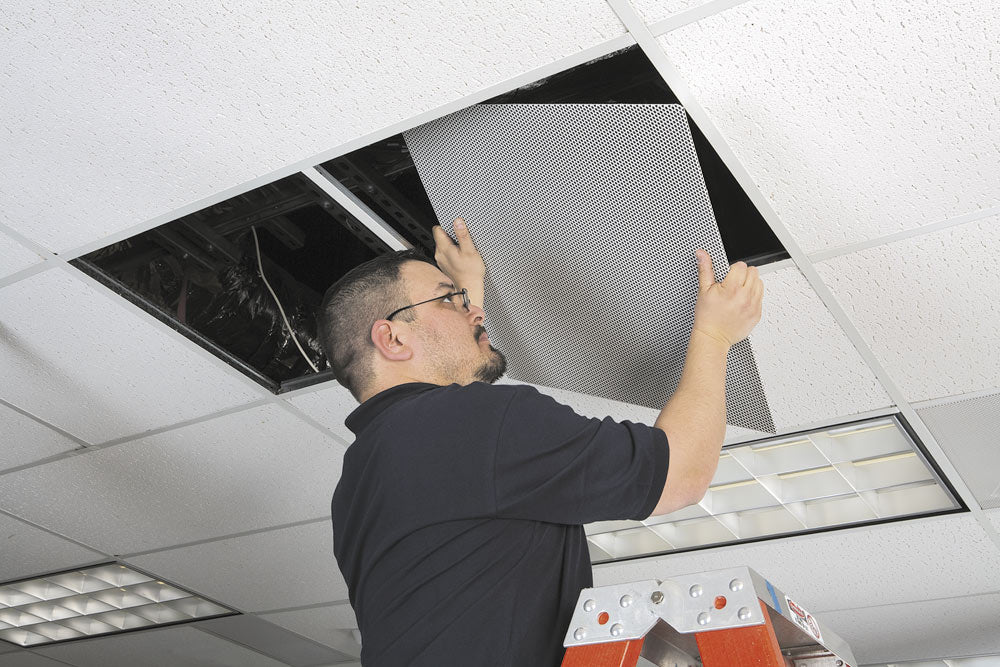

Conference rooms, classrooms, boardrooms, training suites and open office areas built on standard 2' x 2' or 2' x 4' US ceiling grids. The plenum rating suits healthcare and corporate buildings where the ceiling void carries return air.
Specifications at a Glance

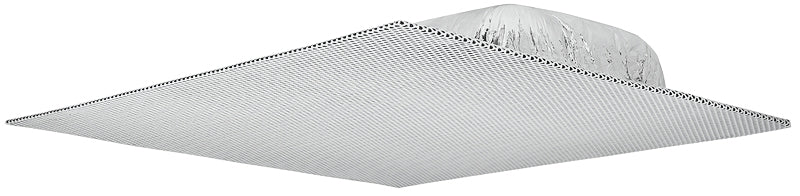

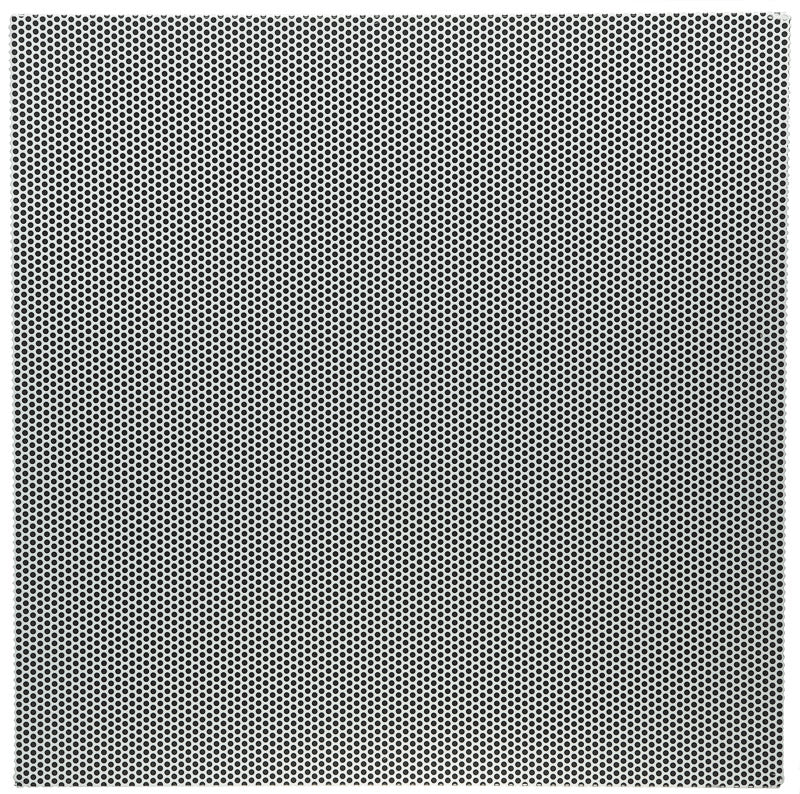

- Enclosure: 3.25" H x 23.75" W x 23.75" L, composite square with metal grille
- Power capacity: 16 W rms continuous pink noise; 32 W rms continuous program
- Nominal impedance: 8 ohms per speaker
- Input connector: one 10 mm Euro-style captive screw terminal block, 7 pole
- Warranty: 5 years parts and labor
Also referenced as Extron FF220T, FF-220T, part number 4214103.
