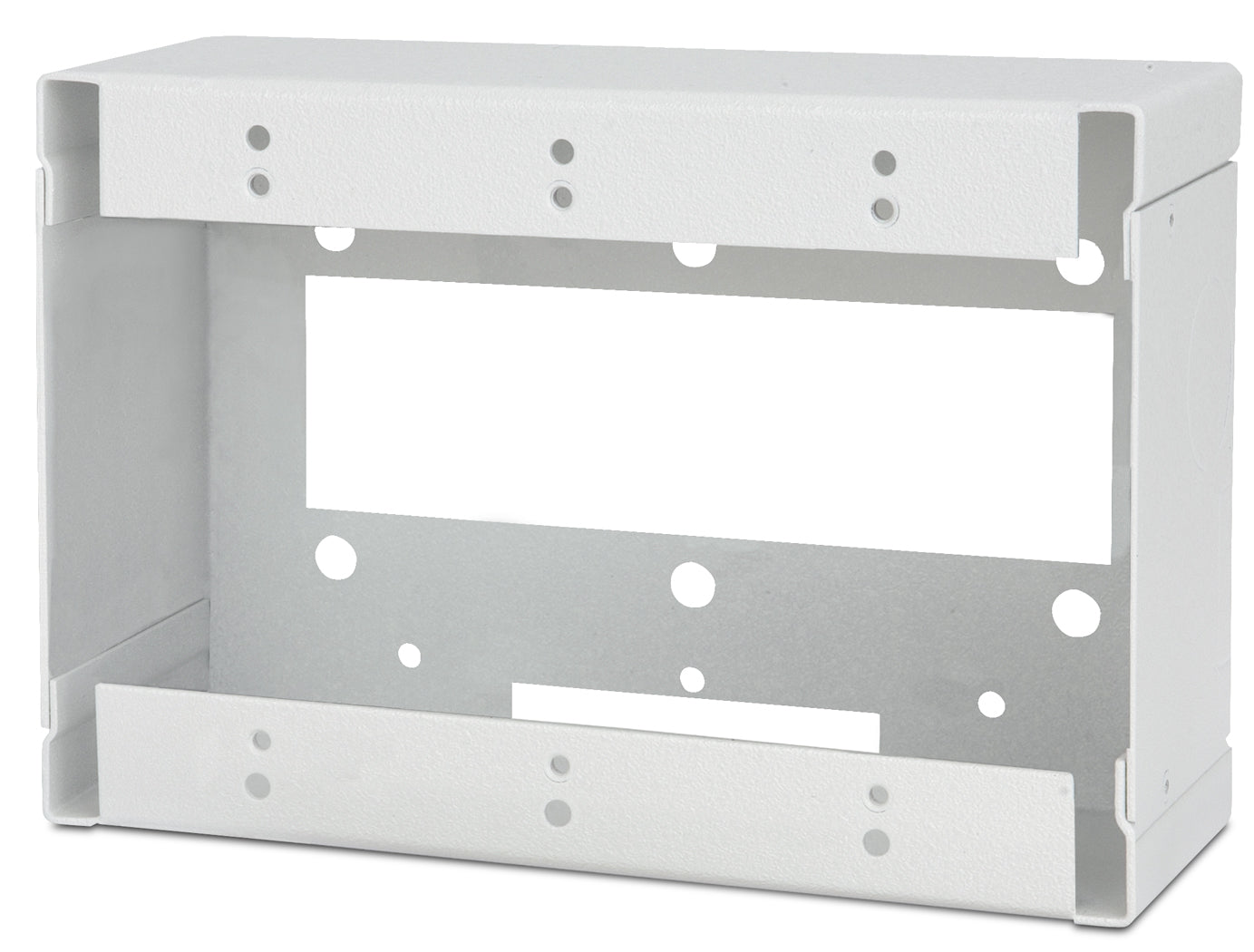

Extron EWB 103 Three-Gang External Wall Box
- • Extron EWB 103 three-gang wall box, white
- • Steel body 4.50 x 6.4 x 2.50 in
- • Six mounting holes; 1.1 lbs (0.5 kg)
- • Sales, replacement and exchange
- • Part# 60-1163-03 / 60116303
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron EWB 103 (part number 60-1163-03) - the white three-gang member of the EWB Series, built to carry Extron wallplates on the surface of an interior wall.
Not every room can be opened up for a recessed back box. The EWB 103 removes that requirement: it fastens to the wall face and offers a three-gang aperture with 2.50 inches of depth behind it, which is what a populated faceplate actually needs once connector bodies and slack cable are accounted for. Cable enters through knockouts sized for surface raceway, or straight from the cavity behind. The rear panel carries a PEM #6-32 grounding insert and a grounding screw is supplied.
Key Capabilities
- Three-gang aperture matched to Extron wallplates and AAP mounting frames
- Steel body at 4.50" H x 6.4" W x 2.50" D (11.4 x 16.2 x 6.4 cm)
- Four knockouts - two at 0.9" x 0.75" and two at 0.9" x 2.0"
- Six wall mounting holes rated for fasteners up to 1/4 inch
- Grounding screw included with the enclosure
- White finish, Extron part number 60-1163-03
Where It Is Used
Higher-education classrooms, hospital and clinic corridors, boardrooms and control rooms with painted or light-finished walls where a white enclosure disappears into the architecture. Also used widely on masonry and glass-partition builds.
Specifications at a Glance
- Configuration: three-gang, wall mount
- Material: steel
- Product weight: 1.1 lbs (0.5 kg)
- Regulatory: c-UL, UL; RoHS and WEEE
- Warranty: 3 years parts and labor
Also referenced as Extron EWB103, EWB-103, part number 60116303.
Frequently asked questions about the Extron EWB 103 Three-Gang External Wall Box, White
Does Ampronix sell the Extron EWB 103 Three-Gang External Wall Box, White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron EWB 103 Three-Gang External Wall Box, White (60-1163-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron EWB 103 Three-Gang External Wall Box, White?
Yes. Ampronix provides sales, replacement and exchange for the Extron EWB 103 Three-Gang External Wall Box, White. Call Ampronix for a quote.
What are the key features of the Extron EWB 103 Three-Gang External Wall Box, White?
Key points: Three-gang aperture matched to Extron wallplates and AAP mounting frames; Steel body at 4.50" H x 6.4" W x 2.50" D (11.4 x 16.2 x 6.4 cm); Four knockouts - two at 0.9" x 0.75" and two at 0.9" x 2.0"; Six wall mounting holes rated for fasteners up to 1/4 inch. Call Ampronix to confirm details for your application.
