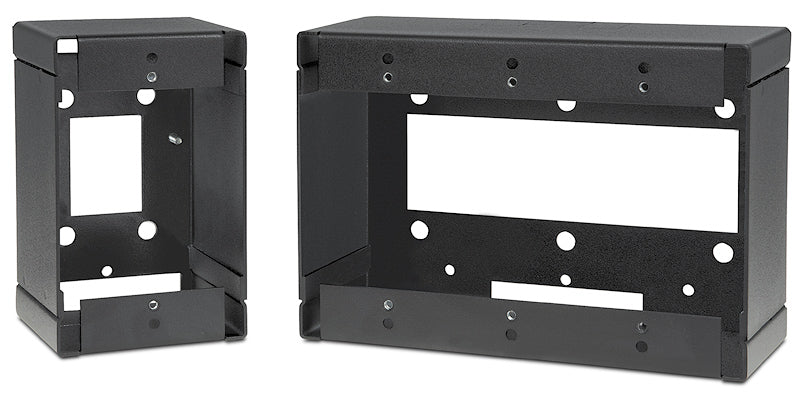

Extron EWB 102 (part number 60-453-02) — black two-gang external wall box on Extron's earlier EWB order code.

Extron has since reissued the black two-gang box under a newer number, but the original code persists across drawings, BOMs and maintenance schedules that were written years ago. Quoting the code the documentation actually names removes an avoidable point of failure at ordering time. The hardware is unchanged in principle: a steel two-gang enclosure that fixes to the wall face, providing 2.50 in of depth behind the faceplate, with surface raceway knockouts and a rear opening for cavity cable runs.

Key Capabilities

• Black two-gang external wall box on the original Extron code
• Mounts on the wall face — no in-wall box, no cutting
• 2.50 in of depth behind the faceplate for wiring
• Two small and two large surface raceway knockouts
• Steel enclosure, 0.9 lbs, six wall mounting holes
• Retired part number retained for documented installations

Where It Is Used

Replacement and expansion work across long-lived AV estates — university lecture rooms, hospital departments, government buildings and corporate campuses whose as-built records still specify this order code.

Specifications at a Glance

• Enclosure: 4.50 in H x 4.56 in W x 2.50 in D (11.4 x 11.6 x 6.4 cm)
• Product weight: 0.9 lbs (0.4 kg)
• Knockouts: 2 small, 2 large
• Wall mounting holes: 6
• Compliance: c-UL, UL, RoHS, WEEE

Also referenced as Extron EWB102, EWB-102, part number 6045302.
