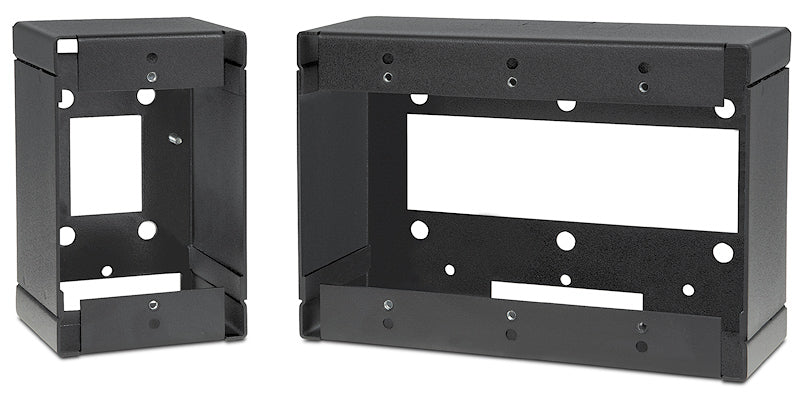

Extron EWB 102 (part number 60-453-01) — two-gang external wall box in gray, a legacy Extron EWB order code.

Gray has been dropped from Extron's current EWB colour range, which makes this the code to reference when an installed estate was built with gray boxes. Matching matters more than it sounds: a single mismatched box in a run of wall outlets is the kind of detail a client notices immediately. The enclosure is the standard two-gang EWB — steel, wall-surface mounted, 2.50 in deep for the faceplate wiring, with raceway knockouts on the sides and an open rear for cavity cabling.

Key Capabilities

• Gray finish, matching legacy Extron EWB installations
• Carries a two-gang faceplate on the wall surface
• 2.50 in of internal depth for wiring
• Two small and two large surface raceway knockouts
• Steel body 4.50 in H x 4.56 in W with six mounting holes
• Retired Extron order code, retained for estate continuity

Where It Is Used

Maintenance and phased upgrades across campuses, hospitals and corporate sites where earlier gray Extron wall boxes are already installed and additional outlets must match the original specification.

Specifications at a Glance

• Enclosure: 4.50 in H x 4.56 in W x 2.50 in D (11.4 x 11.6 x 6.4 cm)
• Product weight: 0.9 lbs (0.4 kg)
• Material: steel
• Wall mounting holes: 6
• Compliance: c-UL, UL, RoHS, WEEE

Also referenced as Extron EWB102, EWB-102, part number 6045301.
