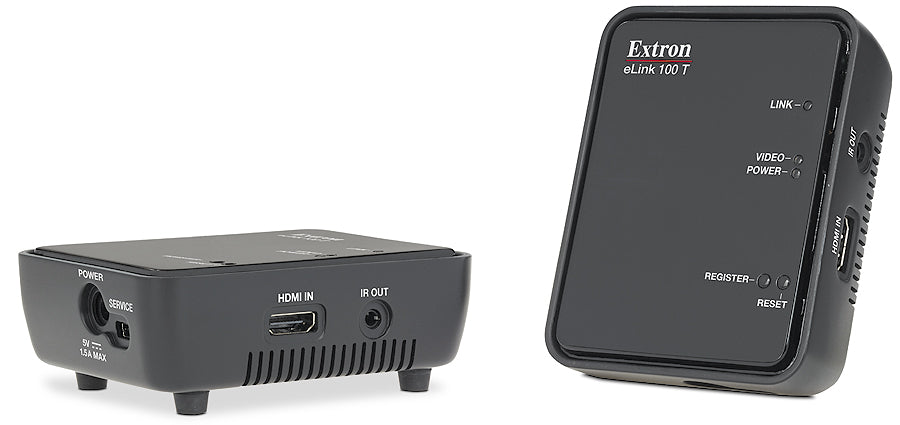

Extron eLink 100 T US (part number 60-1490-02) — wireless HDMI transmitter for the eLink 100 extender set, US/Canada RF band.

The eLink 100 T pairs with up to four eLink 100 R receivers to carry HDMI video and multi-channel audio wirelessly up to 100 ft through walls and furniture in the 5 GHz band. This transmitter accepts a single-link HDMI source, encrypts the feed with AES-128, and actively scans the RF spectrum to keep the link clear of interference from other wireless systems.

Key Capabilities

Wireless HDMI transmission up to 1080p/60, VESA up to 1920x1080 @ 60 Hz
AES-128 encrypted 5 GHz link with under 1 ms system latency
Operates on the US/Canada non-DFS/DFS frequency plan
One transmitter distributes to up to four eLink 100 R receivers
Automatic and dynamic frequency selection avoids interference
Compact 1.4 x 3.2 x 4.0 in enclosure, wall mountable

Where It Is Used

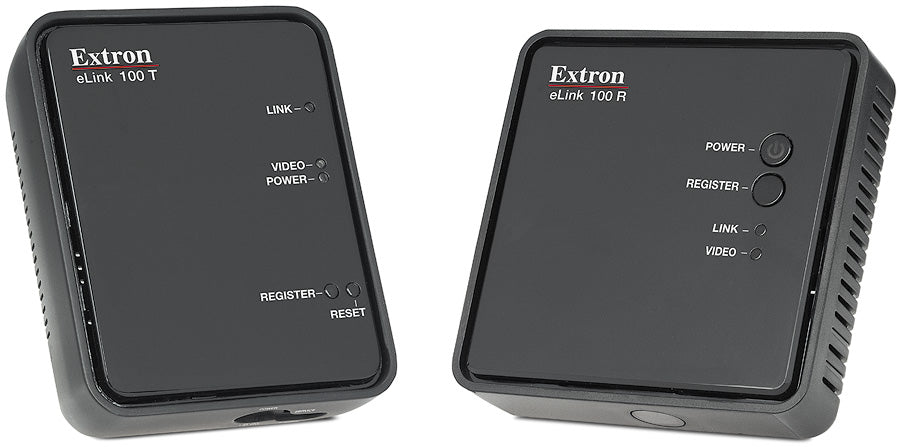

Deployed alongside its eLink 100 R counterpart in boardrooms, classrooms, and portable-lectern setups where running HDMI cable is impractical — historic buildings, divisible rooms, and rental/staging work all benefit from the wireless run.

Specifications at a Glance

Signal: 1 single-link HDMI/DVI-D input, HDCP 2.0 compliant
Transmission: up to 100 ft (30 m), 5 GHz MIMO link
Power: 7.5 W device / 8.8 W with external power supply
Enclosure: 1.4 x 3.2 x 4.0 in, 0.3 lb
Warranty: 3 years parts and labor

Also referenced as Extron eLink100TUS, eLink-100-T-US, part number 60149002.

Specifications

Part Number: 60-1490-02

Manufacturer: Extron

Model: eLink 100 T US

Condition: New

Video Input: 1 single link HDMI (or DVI-D with adapter), 1 female HDMI type A connector

Maximum Data Rate: 6.75 Gbps (2.25 Gbps per color)

Maximum Pixel Clock: 148.5 MHz

Resolution Range: Up to 1080p @ 60 Hz; 8, 10, or 12-bit color depth, VESA up to 1920x1080 @ 60 Hz

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0, HDMI, HDCP 2.0

Audio Formats Supported: PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2-channel, DTS Digital Surround 5.1, DTS 96/24

Operating Frequency, Non-DFS (US/Canada): 5.19 - 5.23 GHz, 5.755 - 5.795 GHz

Operating Frequency, DFS (US/Canada): 5.27 - 5.59 GHz, 5.67 GHz

HDCP Compliant: Yes

Bandwidth: 40 MHz

Transmission Distance: Up to 100 ft (30 m)

System Latency: Less than 1 ms

Security Encryption: AES-128

Power Supply: External; input 100-240 VAC 50-60 Hz, output 5 VDC 2.6 A 13 watts

Operating Temperature: +32 to +104 F (0 to +40 C), 10% to 90% noncondensing

Storage Temperature: -4 to +176 F (-20 to +80 C), 10% to 90% noncondensing

Cooling: Convection

Mounting: Wall mount

Enclosure Type: Plastic

Vibration: ISTA 1A in carton

Safety Certification: UL, c-UL, CE

EMI/EMC Certification: CE, C-tick, FCC Class B, ICES, VCCI, KC

Environmental: RoHS and WEEE compliant

Warranty: 3 years parts and labor

Power Consumption (Device): 7.5 watts, 5 VDC

Power Consumption (Device + Power Supply): 8.8 watts, 100-240 VAC, 50-60 Hz

Thermal Dissipation (Device): 24.4 BTU/hr

Thermal Dissipation (Device + Power Supply): 28.9 BTU/hr

Enclosure Dimensions: 1.4 in H x 3.2 in W x 4.0 in D (3.6 x 8.0 x 10.2 cm)

Product Weight: 0.3 lb (0.1 kg)

Diagram

Resources

Brochure | eLink 100 T US 60-1490-02 | eLink 100 (elink_100_rev_B2.pdf)

Brochure | eLink 100 T US 60-1490-02 | eLink 100 (eLink-100_BR_A4_IT_RevB2.pdf)

Brochure | eLink 100 T US 60-1490-02 | eLink 100 (eLink-100_BR_A4_SP_RevB2.pdf)

Brochure | eLink 100 T US 60-1490-02 | eLink 100 (eLink-100_BR_A4_FR_RevB2.pdf)

Brochure | eLink 100 T US 60-1490-02 | eLink 100 (eLink-100_BR_A4_GE_RevB2.pdf)

Manual | eLink 100 T US 60-1490-02 | eLink 100 Setup Guide

Manual | eLink 100 T US 60-1490-02 | eLink 100 User Guide

Specifications | eLink 100 T US 60-1490-02 | eLink 100

Panel Drawing | eLink 100 T US 60-1490-02 | eLink 100

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron eLink 100 T US Wireless HDMI Transmitter 60-1490-02

Name: Extron eLink 100 T US Wireless HDMI Transmitter 60-1490-02
Brand: Extron
SKU: EXTRON-ELINK100TUS-60149002
Availability: InStock

Manufacturer: Extron

Type: Wireless

Extron eLink 100 T US Wireless HDMI Transmitter

• Wireless HDMI transmitter for eLink 100, US/Canada RF band
• Sends up to 1080p/60 wireless HDMI over 100 ft range
• AES-128 encrypted 5 GHz link, under 1 ms latency
• One transmitter feeds up to 4 eLink 100 R receivers
• Automatic/dynamic frequency selection avoids interference
• Compact 1.4 x 3.2 x 4.0 in wall-mountable enclosure
• 8.8W with external power supply, 3-year Extron warranty
