Details

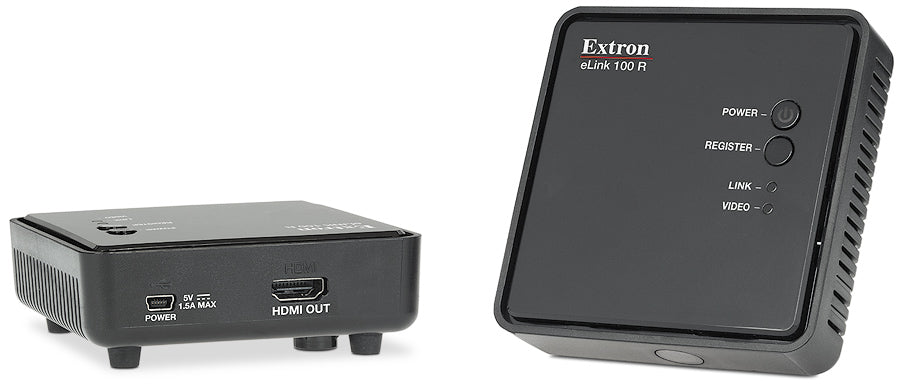

Extron eLink 100 R AUS (part number 60-1490-23) — wireless HDMI receiver for the eLink 100 extender set, Australia RF band.

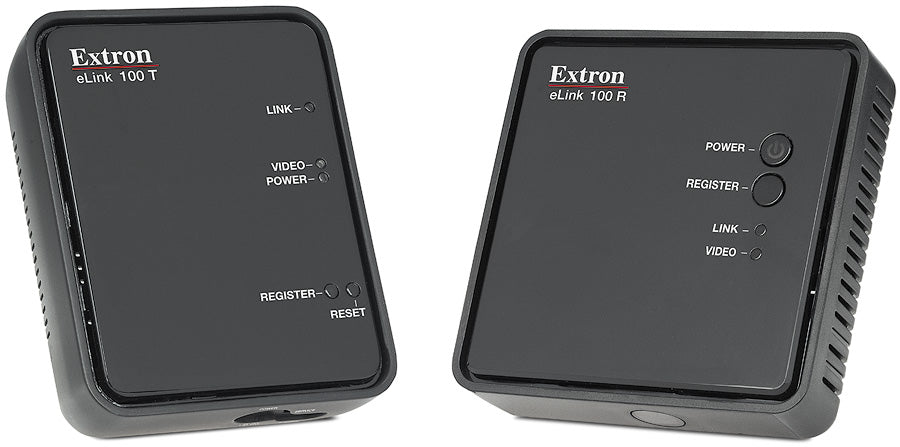

The eLink 100 R pairs with an eLink 100 T transmitter to carry HDMI video and multi-channel audio wirelessly up to 100 ft through walls and furniture in the 5 GHz band. This receiver decodes the incoming signal back to a single-link HDMI output, passes IR commands back to the source-side transmitter, and keeps AES-128 encryption on the link so the extension stays secure end to end.

Key Capabilities

Wireless HDMI reception up to 1080p/60, VESA up to 1920x1080 @ 60 Hz
AES-128 encrypted 5 GHz link with under 1 ms system latency
Operates on the Australia non-DFS/DFS frequency plan
Included IR remote plus IR pass-through back to the transmitter
One transmitter can drive up to four eLink 100 R receivers
Compact 1.3 x 3.7 x 3.7 in enclosure, wall mountable

Where It Is Used

Deployed alongside its eLink 100 T counterpart in boardrooms, classrooms, and portable-lectern setups where running HDMI cable is impractical — historic buildings, divisible rooms, and rental/staging work all benefit from the wireless run.

Specifications at a Glance

Signal: 1 single-link HDMI/DVI-D output, HDCP 2.0 compliant
Transmission: up to 100 ft (30 m), 5 GHz MIMO link
Power: 7.5 W device / 9.0 W with external power supply
Enclosure: 1.3 x 3.7 x 3.7 in, 0.3 lb
Warranty: 3 years parts and labor

Also referenced as Extron eLink100RAUS, eLink-100-R-AUS, part number 60149023.

Specifications

Part Number: 60-1490-23

Manufacturer: Extron

Model: eLink 100 R AUS

Condition: New

Video Output: 1 single link HDMI (or DVI-D with adapter), 1 female HDMI type A connector

Maximum Data Rate: 6.75 Gbps (2.25 Gbps per color)

Maximum Pixel Clock: 148.5 MHz

Resolution Range: Up to 1080p @ 60 Hz; 8, 10, or 12-bit color depth, VESA up to 1920x1080 @ 60 Hz

Video Formats: RGB and YCbCr digital video

Video Standards: DVI 1.0, HDMI, HDCP 2.0

Audio Formats Supported: PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2-channel, DTS Digital Surround 5.1, DTS 96/24

IR Control Port: Included IR remote control

IR Pass-Through Control Port (Rx to Tx): Unidirectional, 38 KHz

Operating Frequency, Non-DFS (Australia): 5.19 - 5.23 GHz

Operating Frequency, DFS (Australia): 5.27 - 5.55 GHz, 5.67 GHz

HDCP Compliant: Yes

Bandwidth: 40 MHz

Transmission Distance: Up to 100 ft (30 m)

System Latency: Less than 1 ms

Security Encryption: AES-128

Power Supply: External; input 100-240 VAC 50-60 Hz, output 5 VDC 2.6 A 13 watts

Operating Temperature: +32 to +104 F (0 to +40 C), 10% to 90% noncondensing

Storage Temperature: -4 to +176 F (-20 to +80 C), 10% to 90% noncondensing

Cooling: Convection

Mounting: Wall mount

Enclosure Type: Plastic

Vibration: ISTA 1A in carton

Safety Certification: UL, c-UL, CE

EMI/EMC Certification: CE, C-tick, FCC Class B, ICES, VCCI, KC

Environmental: RoHS and WEEE compliant

Warranty: 3 years parts and labor

Power Consumption (Device): 7.5 watts, 5 VDC

Power Consumption (Device + Power Supply): 9.0 watts, 100-240 VAC, 50-60 Hz

Thermal Dissipation (Device): 24.4 BTU/hr

Thermal Dissipation (Device + Power Supply): 29.6 BTU/hr

Enclosure Dimensions: 1.3 in H x 3.7 in W x 3.7 in D (3.4 x 9.5 x 9.5 cm)

Product Weight: 0.3 lb (0.1 kg)

Diagram

Resources

Brochure | eLink 100 R AUS 60-1490-23 | eLink 100 (elink_100_rev_B2.pdf)

Brochure | eLink 100 R AUS 60-1490-23 | eLink 100 (eLink-100_BR_A4_IT_RevB2.pdf)

Brochure | eLink 100 R AUS 60-1490-23 | eLink 100 (eLink-100_BR_A4_SP_RevB2.pdf)

Brochure | eLink 100 R AUS 60-1490-23 | eLink 100 (eLink-100_BR_A4_FR_RevB2.pdf)

Brochure | eLink 100 R AUS 60-1490-23 | eLink 100 (eLink-100_BR_A4_GE_RevB2.pdf)

Manual | eLink 100 R AUS 60-1490-23 | eLink 100 Setup Guide

Manual | eLink 100 R AUS 60-1490-23 | eLink 100 User Guide

Specifications | eLink 100 R AUS 60-1490-23 | eLink 100

Panel Drawing | eLink 100 R AUS 60-1490-23 | eLink 100
