Extron EDID 101H 4K 60-1543-01 Emulator
Extron EDID 101H 4K 60-1543-01 Emulator
- • Extron EDID 101H 4K EDID emulator
- • Data rates to 10.2 Gbps, resolutions up to 4K
- • Pre-stored EDID profiles plus capture mode
- • Sales, replacement and exchange
- • Part# 60-1543-01 / 60154301
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron; Model: EDID 101H 4K; Part number: 60-1543-01 (also written 60154301)

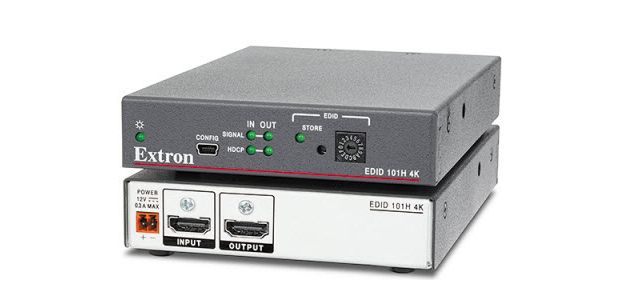

The Extron EDID 101H 4K (60-1543-01) is a new HDMI EDID emulator with EDID Minder available through Ampronix. It sits between an HDMI source and display, storing EDID data and presenting the stored profile to the source so the source maintains a valid output even when no display is connected or when the display is powered off. Supports pre-stored EDID profiles selectable by resolution and refresh rate, or can capture and store EDID from a real display.
Key capabilities
- EDID Minder maintains continuous EDID communication from source to display
- Pre-stored EDID profiles selectable by resolution and refresh rate
- Capture mode stores real display EDID for accurate emulation
- HDCP compliant, supports data rates up to 10.2 Gbps, resolutions up to 4K
- Quarter-rack 1U compact enclosure with external universal power supply
Where it is used
Installations where a source must maintain active video output regardless of display state, such as digital signage players, control room sources, and any HDMI device that loses output when a display is off or disconnected.
Specifications at a glance
- I/O: 1 HDMI in, 1 HDMI out
- Max data rate: 10.2 Gbps; up to 4K
- Enclosure: 1U quarter-rack
- Warranty: 3-year product, 7-year Everlast power supply
Frequently asked questions about the Extron EDID 101H 4K
Is the Extron EDID 101H 4K 60-1543-01 available new or refurbished?
Ampronix stocks the EDID 101H 4K (60-1543-01) as a new unit through its authorized Extron distribution agreement.
Can the EDID 101H 4K store a custom EDID from a connected display?
Yes. The 60-1543-01 includes a capture mode that reads and stores the actual EDID from a connected display, then presents that stored profile to the source regardless of display power state.
Does Ampronix offer replacement and exchange for the Extron EDID 101H 4K?
Yes. Ampronix provides sales, replacement and exchange for the EDID 101H 4K and the broader Extron signal management line.
Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron EDID 101H 4K? Ampronix provides sales, replacement and exchange for this product and the broader Extron line.
Also referenced as Extron EDID101H4K, EDID-101H-4K, part number 60154301.
