Extron EDID 101D EDID Minder Emulator for DVI and VGA
- • Holds display EDID so the source always boots to a valid resolution
- • Digital path to 10 Gbps (3.3 Gbps per color) at a 330 MHz pixel clock
- • Resolutions up to 2560x1600 at 60 Hz on dual or single link DVI-D
- • Analog path offers 350 MHz (-3 dB) bandwidth at unity gain, 75 ohms
- • Horizontal scan 15 kHz to 145 kHz; vertical 30 Hz to 170 Hz
- • Powers from DVI pin 14, VGA pin 9 or a 12 VDC supply at 0.05 A
- • Metal one-eighth rack enclosure at just 0.4 lbs (0.2 kg)
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

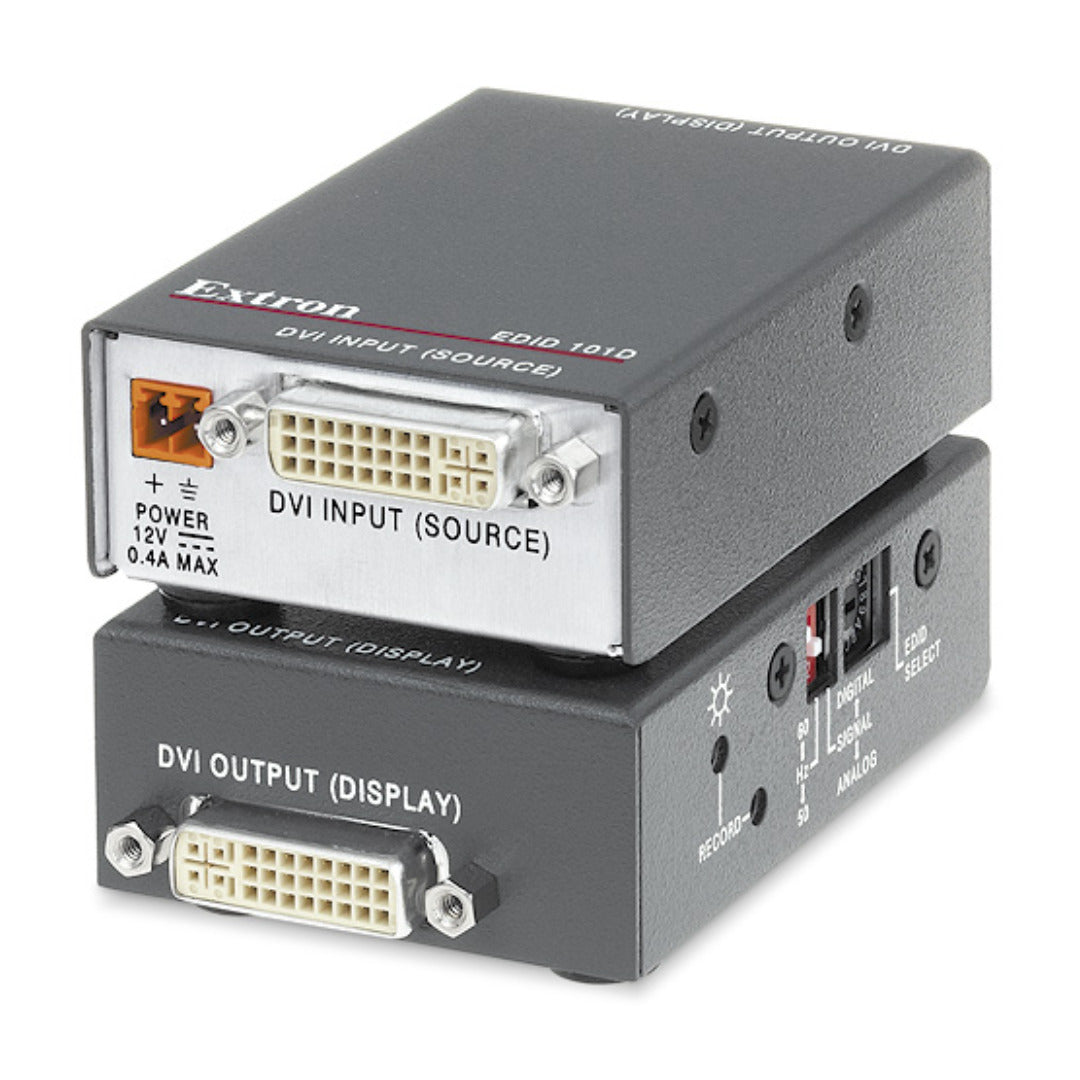

Extron EDID 101D (part number 60-990-01) — a one-eighth rack EDID emulator that keeps a DVI or analog VGA source booting to the right resolution.
Most no-picture callouts are handshake problems, not cable problems. When a display is switched off, unplugged or routed through a matrix, the source loses the EDID it relied on at boot and falls back to a default the projector cannot show. The EDID 101D sits inline and holds that EDID permanently, so the source always sees a stable display description. It handles dual or single link DVI-D on a female DVI-I connector and, with a DVI-A to 15-pin HD adapter, passes analog RGBHV, RGBS, RGsB and RsGsBs as well. Power can come from the DVI source on pin 14, a VGA source on pin 9, or an external supply.
Key Capabilities
- Digital path handles up to 10 Gbps (3.3 Gbps per color) at 330 MHz pixel clock.
- Resolution range to 2560x1600 at 60 Hz on dual or single link DVI-D.
- Analog path offers 350 MHz (-3 dB) bandwidth at unity gain, 75 ohm impedance.
- Horizontal scan 15 kHz to 145 kHz; vertical 30 Hz to 170 Hz.
- Complies with DVI 1.0 and EDID 1.3.
- Draws power from the source signal or an external 12 VDC supply at 0.05 A.
- Metal one-eighth rack enclosure, 0.4 lbs, rack mountable on an optional 1U shelf.
Where It Is Used
Deployed anywhere a source must survive a display going dark: digital signage players, courtroom and boardroom PCs feeding switched displays, classroom projectors on timers, and medical or control-room workstations where a failed boot resolution costs real time.
Specifications at a Glance
- Video input: 1 dual or single link DVI-D on 1 female DVI-I; analog on 1 female 15-pin HD
- Analog levels: 0.7 Vp-p nominal for RGB, 0.3 V to 1.5 Vp-p range, no offset
- Enclosure: metal, 1.0 in H x 2.2 in W x 3.0 in D, one-eighth rack wide
- Product weight: 0.4 lbs (0.2 kg); shipping weight 2 lbs (1 kg)
- Regulatory: CE, c-UL, UL safety; CE, C-tick, FCC Class A, ICES, VCCI Class A
Also referenced as Extron EDID101D, EDID-101D, part number 6099001.
Specifications
Specifications

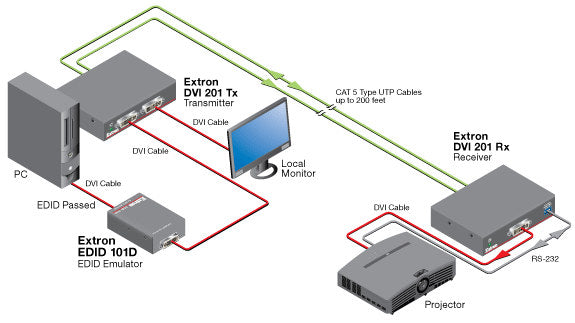

Diagram
