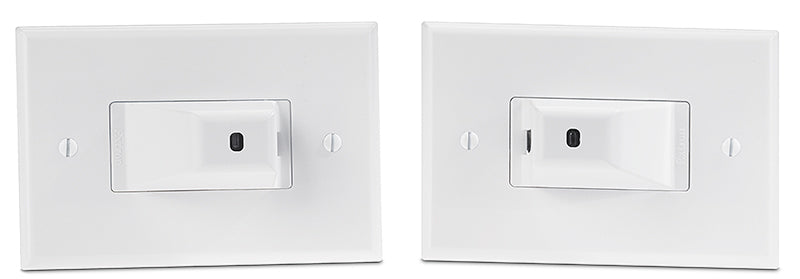

Extron ECM S10 (part number 60-1705-03) — a two-piece infrared partition sensor that tells an eBUS control system whether a movable wall is open or closed.

Divisible rooms only behave correctly if the control system knows which configuration it is in. The ECM S10 supplies that fact: a transmitter with an 870 nm infrared LED faces a receiver up to 10 ft away, and the beam breaking or reconnecting flags the partition state. The receiver reports through a 4-pole eBUS connection to an Extron control processor and also offers a 2-pole digital output. Power is neat — the receiver takes 12 VDC from the eBUS link and feeds the transmitter 14 VDC at 100 mA through its own 2-pole connector, so no separate supply is needed at the far side.

Key Capabilities

Detecting distance of 10 ft (3.0 m) between transmitter and receiver.
Infrared LED light source at 870 nm wavelength.
Operating angle of 3 to 15 degrees for transmitter and receiver.
Receiver digital output: low logic 0 to 2.0 VDC, high logic 2.8 to 5.0 VDC, 0.8 VDC hysteresis.
Receiver supplies 14 VDC at 100 mA to power the transmitter.
Combined power consumption of just 1.0 watt for both units.
Configured with Global Configurator Plus and Professional, or Global Scripter.

Where It Is Used

Standard equipment in divisible conference rooms, classrooms, ballrooms, lecture halls and auditoriums where an air wall changes the room count and the AV system must re-route audio and video automatically rather than waiting for someone to press a button.

Specifications at a Glance

Mounting: standard 1-gang US, EU or MK junction box; oversized 1-gang Decorator faceplate included
Faceplate: 5.25 in H x 3.50 in W (134 mm H x 89 mm W)
Transmitter: 4.20 in H x 1.75 in W x 1.66 in D, 0.15 lb (0.07 kg)
Receiver: 4.20 in H x 1.75 in W x 2.46 in D, 0.20 lb (0.09 kg)
Thermal dissipation: 2.6 BTU combined; convection cooled, no vents

Also referenced as Extron ECMS10, ECM-S10, part number 60170503.

Specifications

Part Number: 60-1705-03

Manufacturer: Extron

Model: ECM S10

Condition: New

Product Type: Partition sensor consisting of a transmitter and a receiver

Detecting Distance: 10 feet (3.0 m)

Operating Angle: Transmitter and receiver 3-15 degrees

Light Source, Transmitter: Infrared LED, 870 nm wavelength

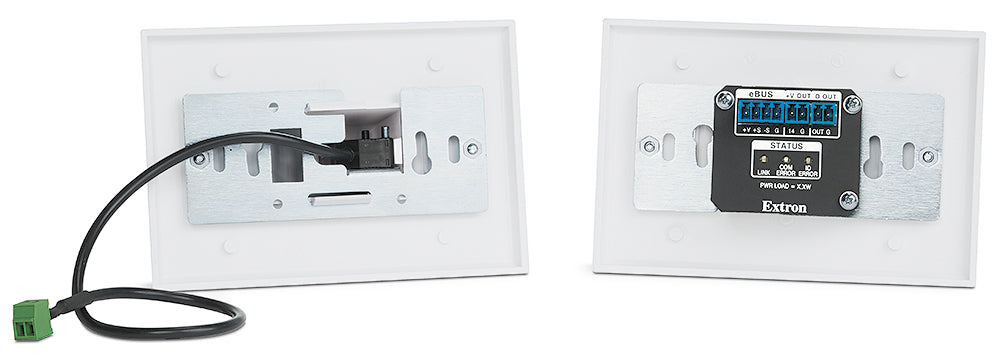

eBUS Control: 1 x 3.5 mm captive screw connector, 4 pole

eBUS Pin Configuration: +V = +12 VDC; +S = + signal; -S = - signal; G = ground

Receiver Digital Output: 1 x 3.5 mm captive screw connector, 2 pole; low logic 0 VDC to 2.0 VDC, high logic 2.8 VDC to 5.0 VDC, hysteresis 0.8 VDC, fixed pullup

Receiver Power Output: 14 VDC at 100 mA on 1 x 3.5 mm captive screw connector, 2 pole, which powers the transmitter

Power, Receiver: 12 VDC, supplied by an Extron IPCP Pro series control processor or optional power supply

Power, Transmitter: 14 VDC supplied by the ECM S10 receiver

Power Consumption: 1.0 watts, transmitter and receiver combined

Thermal Dissipation: 2.6 BTU, transmitter and receiver combined

Recommended Cable Type: Extron STP20-2/1000 or STP20-2P/1000 cable

Maximum System Cable Length: 1000 feet (305 meters) sum total for the eBUS system regardless of topology; power injection may be required depending on cabling topology and primary power supply wattage

Configuration Software: Global Configurator Plus and Professional

Programming Software: Global Scripter

Control Apps: Extron Control

Utilities: Toolbelt

Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 35% to 90% noncondensing; operating +32 to +122 degrees F (0 to +50 degrees C), 35% to 85% noncondensing

Cooling: Convection, no vents

Mounting: Not rack mountable; mounts in a standard 1-gang US, EU or MK junction box with the included oversized 1-gang Decorator style faceplate

Enclosure Type: Plastic faceplate, metal mounting plate

Faceplate Dimensions: Transmitter and receiver, oversized 1-gang Decorator style, 5.25 in H x 3.50 in W (134 mm H x 89 mm W)

Transmitter Dimensions: 4.20 in H x 1.75 in W x 1.66 in D (108 mm H x 45 mm W x 42 mm D)

Receiver Dimensions: 4.20 in H x 1.75 in W x 2.46 in D (108 mm H x 45 mm W x 63 mm D)

Product Weight: Transmitter 0.15 lb (0.07 kg); receiver 0.20 lb (0.09 kg)

Regulatory Compliance: CE, c-UL, C-Tick, FCC Class A, ICES, RoHS, UL, VCCI Class A, WEEE

Product Warranty: 3 years parts and labor

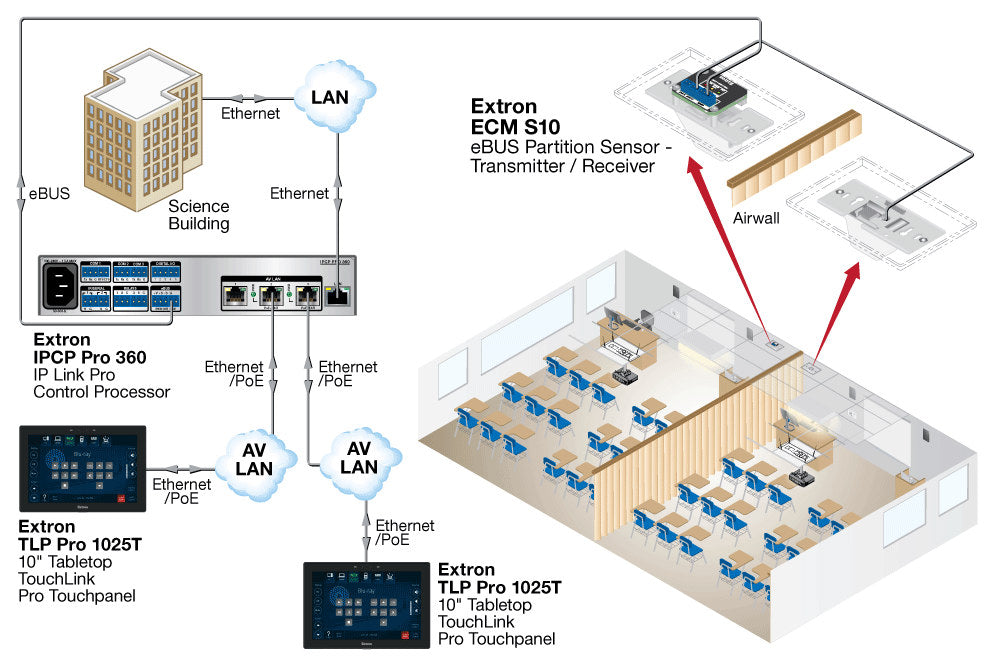

Diagram
