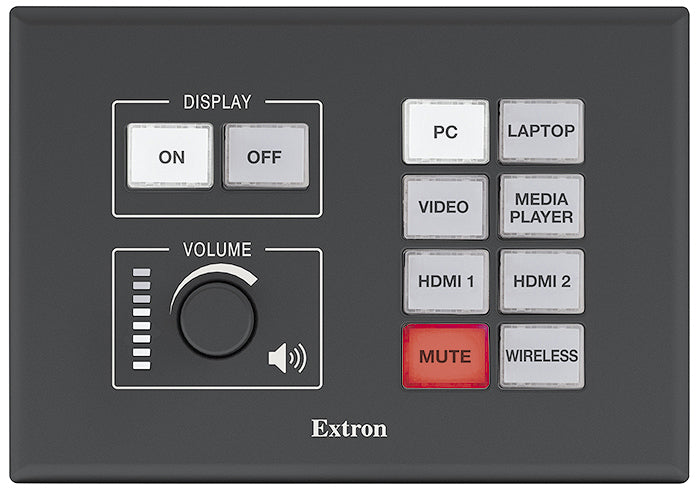

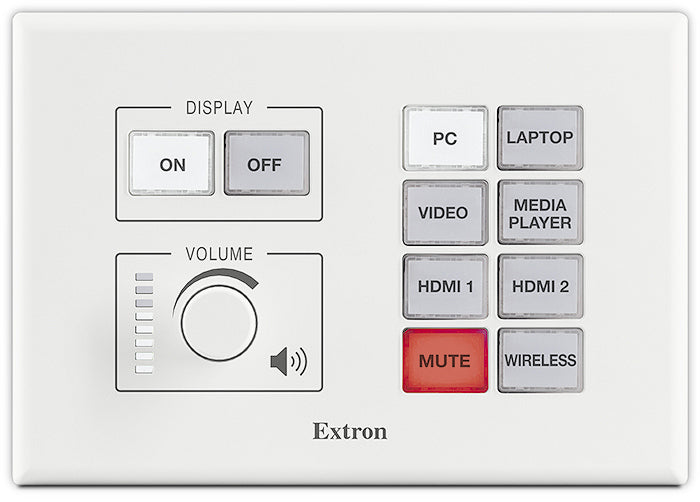

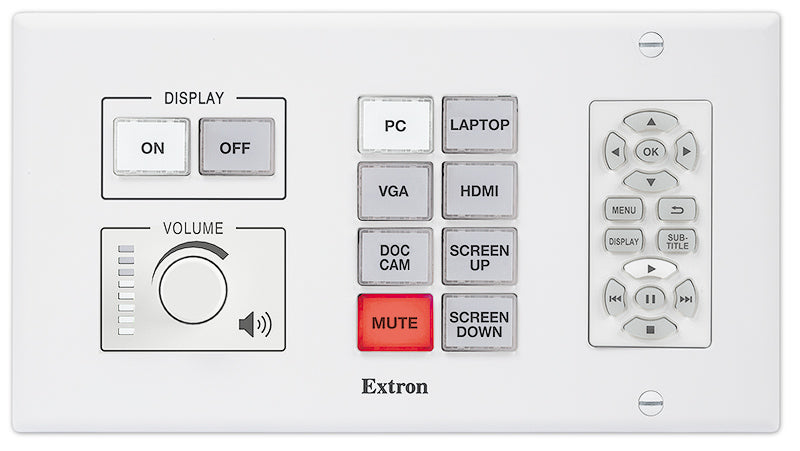

Extron EBP 200 (part number 60-1389-01) — a three-gang eBUS button panel offering ten backlit buttons and a rotary volume control for IPCP Pro based systems.

Where the two-gang panel runs out of buttons, this one keeps going: ten dual-colour LED backlit buttons, eight of them dedicated to input selection and two to power, each illuminating white or red so the function is obvious in a dim room. The caps come off for custom labelling. A rotary encoder covers audio level. Wiring stays trivial — a single eBUS run carries 12 VDC and control data, and the second port lets another panel join the chain without a new cable pull back to the rack.

Key Capabilities

Ten dual-colour LED backlit buttons: eight for input selection, two for power.
Rotary encoder knob for AV system audio level.
Removable button caps allow custom labelling per room.

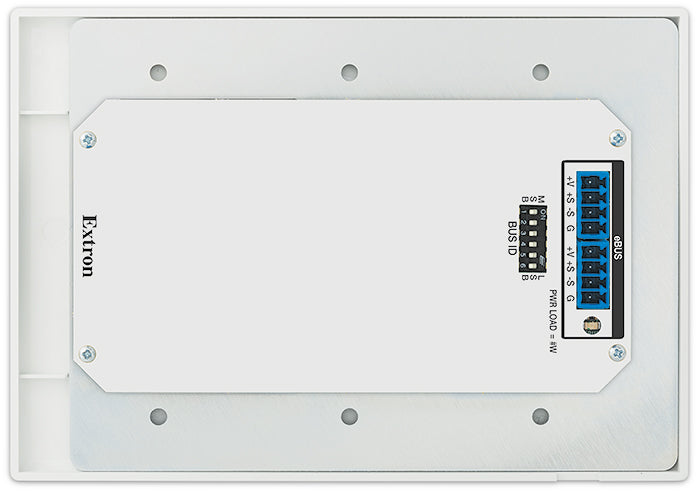

Two 4-pole 3.5 mm captive screw eBUS ports for chaining panels.
Single cable delivers 12 VDC power and control data.
eBUS system cable budget of 1000 ft (305 m) total, any topology.
Configured with Global Configurator Plus and Professional, or Global Scripter.

Where It Is Used

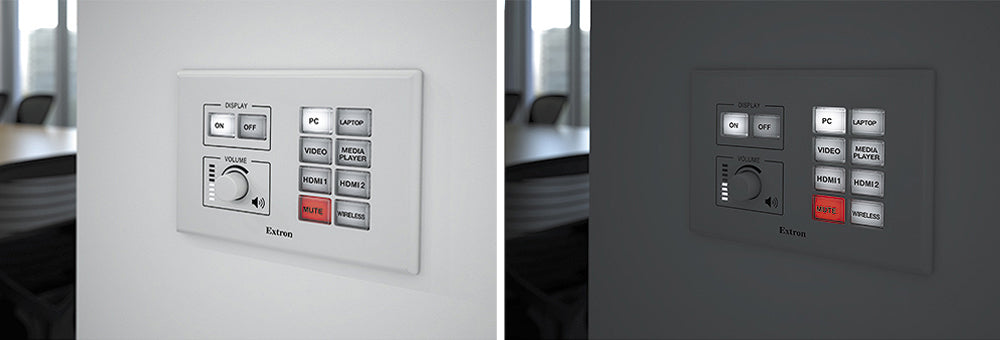

Fits a standard US 3-gang junction box or mud ring in conference rooms, boardrooms, divisible classrooms and training suites where the source list is long enough that one button per input is faster than paging through a touchscreen.

Specifications at a Glance

Power consumption: 0.5 W; thermal dissipation 1.1 BTU/hr
Faceplate: 4.5 in H x 6.4 in W x 0.3 in D
Device: 2.7 in H x 5.2 in W x 0.8 in D (1.25 in D with captive screw connectors)
Product weight: 0.7 lb (0.3 kg)
Allow at least 1.9 in depth in the wall or furniture

Also referenced as Extron EBP200, EBP-200, part number 60138901.

Specifications

Part Number: 60-1389-01

Manufacturer: Extron

Model: EBP 200

Condition: New

Buttons: Ten dual color LED backlit buttons, eight dedicated to input selection and two to power; buttons illuminate white or red by function and have removable caps for custom labeling

Rotary Control: Rotary encoder knob configurable to control AV system audio level

eBUS Control Ports: 2 x 3.5 mm captive screw connectors, 4 pole

eBUS Pin Configuration: +V = +12 VDC; +S = + signal; -S = - signal; G = ground

Recommended Cable Type: Extron STP20-2/1000 or STP20-2P/1000 cable

Maximum System Cable Length: 1000 feet (305 meters) sum total for the eBUS system regardless of topology; power injection may be required depending on cabling topology and primary power supply wattage

Configuration Software: Global Configurator Plus and Professional

Programming Software: Global Scripter

Control Apps: Extron Control

Utilities: Toolbelt

Power: 12 VDC, supplied by an Extron IPCP Pro series control processor or optional power supply

Power Consumption: 0.5 W

Thermal Dissipation: 1.1 BTU/hr

Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing

Cooling: Convection, no vents

Mounting: Not rack mountable; mounts in a standard US 3-gang electrical junction box or mud ring

Enclosure Type: Plastic faceplate and high-impact plastic rear enclosure

Faceplate Dimensions: 4.5 in H x 6.4 in W x 0.3 in D (11.4 cm H x 16.3 cm W x 0.8 cm D)

Device Dimensions: 2.7 in H x 5.2 in W x 0.8 in D (6.9 cm H x 13.2 cm W x 2.1 cm D), or 1.25 in D (3.2 cm) including captive screw connectors; depth excludes faceplate and buttons, and at least 1.9 in (4.7 cm) depth is required in the wall or furniture

Product Weight: 0.7 lb (0.3 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UL, VCCI Class A, WEEE

Accessibility: Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29 U.S.C. 794d)

Product Warranty: 3 years parts and labor

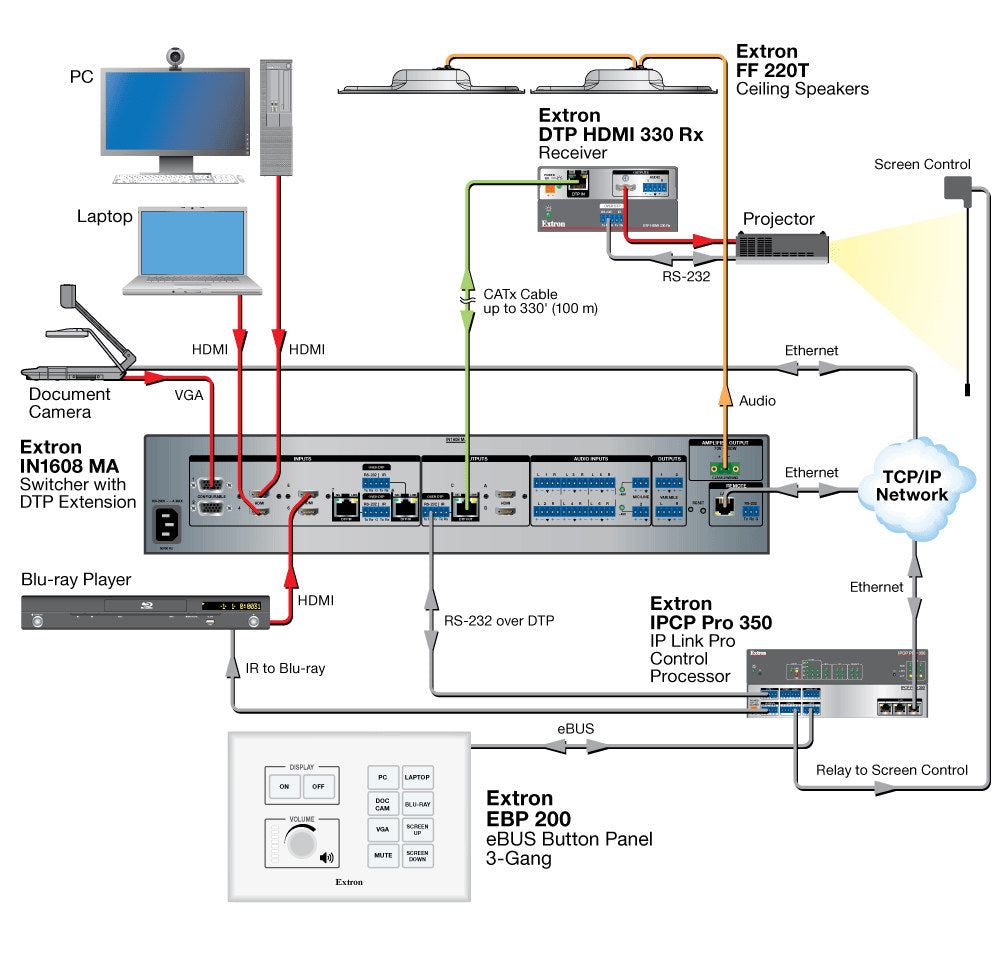

Diagram

Resources

Brochure | EBP 200 60-1389-01 | EBP 200 (epb_200_bro_A.pdf)

Brochure | EBP 200 60-1389-01 | EBP 200 (EBP-200_BR_A4_SP_RevA.pdf)

Manual | EBP 200 60-1389-01 | EBP 50, 100, and 200 Setup Guide

Manual | EBP 200 60-1389-01 | eBUS Technology Reference Guide

Specifications | EBP 200 60-1389-01 | EBP 200

Panel Drawing | EBP 200 60-1389-01 | EBP 200
