Extron EBP 100 2-Gang 6-Button eBUS Control Panel 60-1388-01

Details

Extron EBP 100 (part number 60-1388-01) — a two-gang eBUS button panel that gives a room simple, physical AV control when paired with an IPCP Pro series control processor.

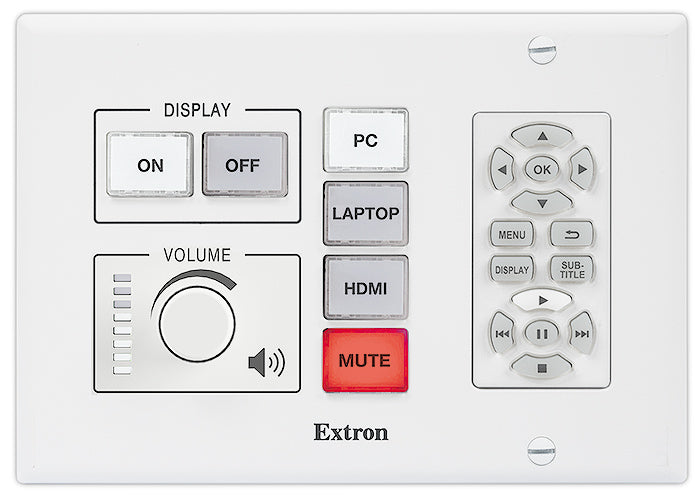

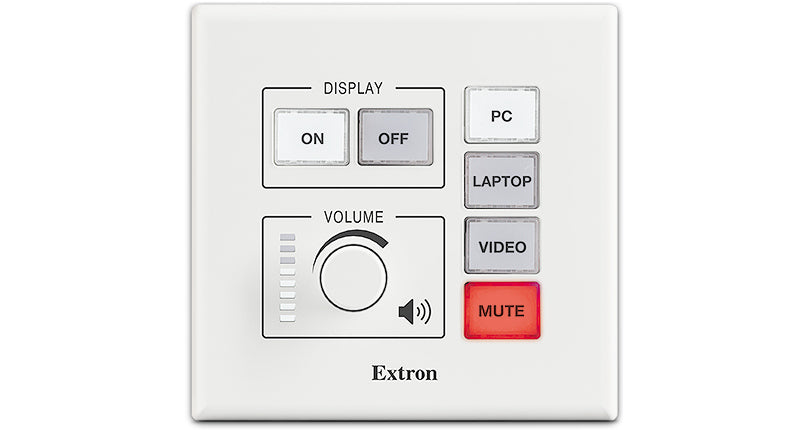

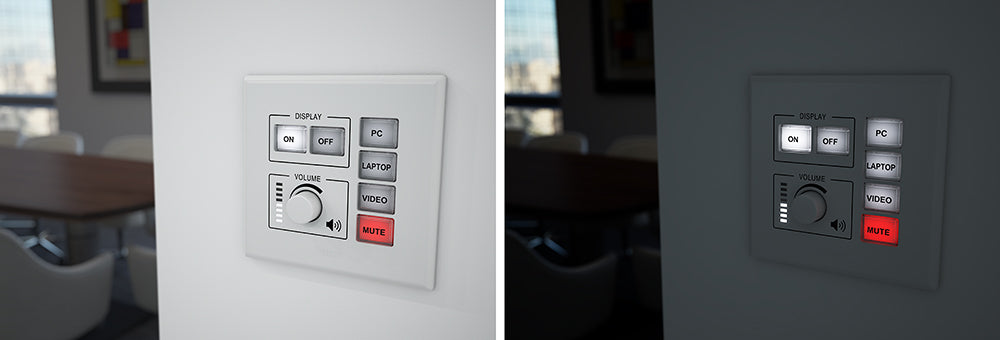

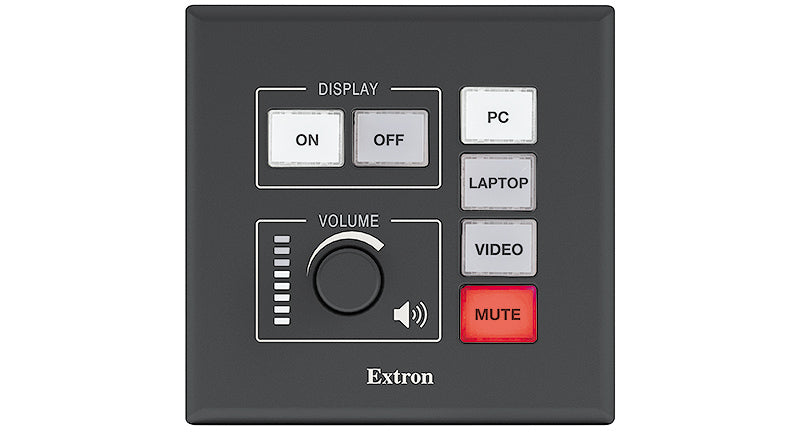

Touchpanels are wonderful until someone just wants the projector on. The EBP 100 answers that with six dual-colour LED backlit buttons — four assigned to input selection, two to power — illuminating white or red so the function reads at a glance in a darkened room. A rotary encoder in the lower left handles audio level. Button caps lift off for custom labelling, and the whole panel needs only one cable: eBUS carries 12 VDC power and control data together, with a second port to daisy-chain further panels.

Key Capabilities

Six dual-colour LED backlit buttons: four for input selection, two for power.
Rotary encoder knob configurable for AV system audio level.
Removable button caps for custom labelling.
Two 4-pole 3.5 mm captive screw eBUS ports for daisy-chaining panels.
One cable carries both 12 VDC power and control data.
eBUS system total cable length up to 1000 ft (305 m) regardless of topology.
Draws only 0.5 W and dissipates 1.1 BTU/hr.

Where It Is Used

Mounts in a standard US 2-gang electrical junction box or mud ring at the door of a classroom, in a boardroom credenza, or beside a huddle room display — anywhere users need a handful of reliable buttons instead of a menu system.

Specifications at a Glance

Power: 12 VDC from an Extron IPCP Pro control processor or optional supply
Faceplate: 4.5 in H x 4.6 in W x 0.3 in D
Device: 2.7 in H x 3.5 in W x 0.8 in D (1.25 in D with captive screw connectors)
Product weight: 0.5 lb (0.2 kg)
Recommended cable: Extron STP20-2/1000 or STP20-2P/1000

Also referenced as Extron EBP100, EBP-100, part number 60138801.

Specifications

Part Number: 60-1388-01

Manufacturer: Extron

Model: EBP 100

Condition: New

Buttons: Six dual color LED backlit buttons, four dedicated to input selection and two to power; buttons illuminate white or red by function and have removable caps for custom labeling

Rotary Control: Rotary encoder knob at the bottom left, configurable to control AV system audio level

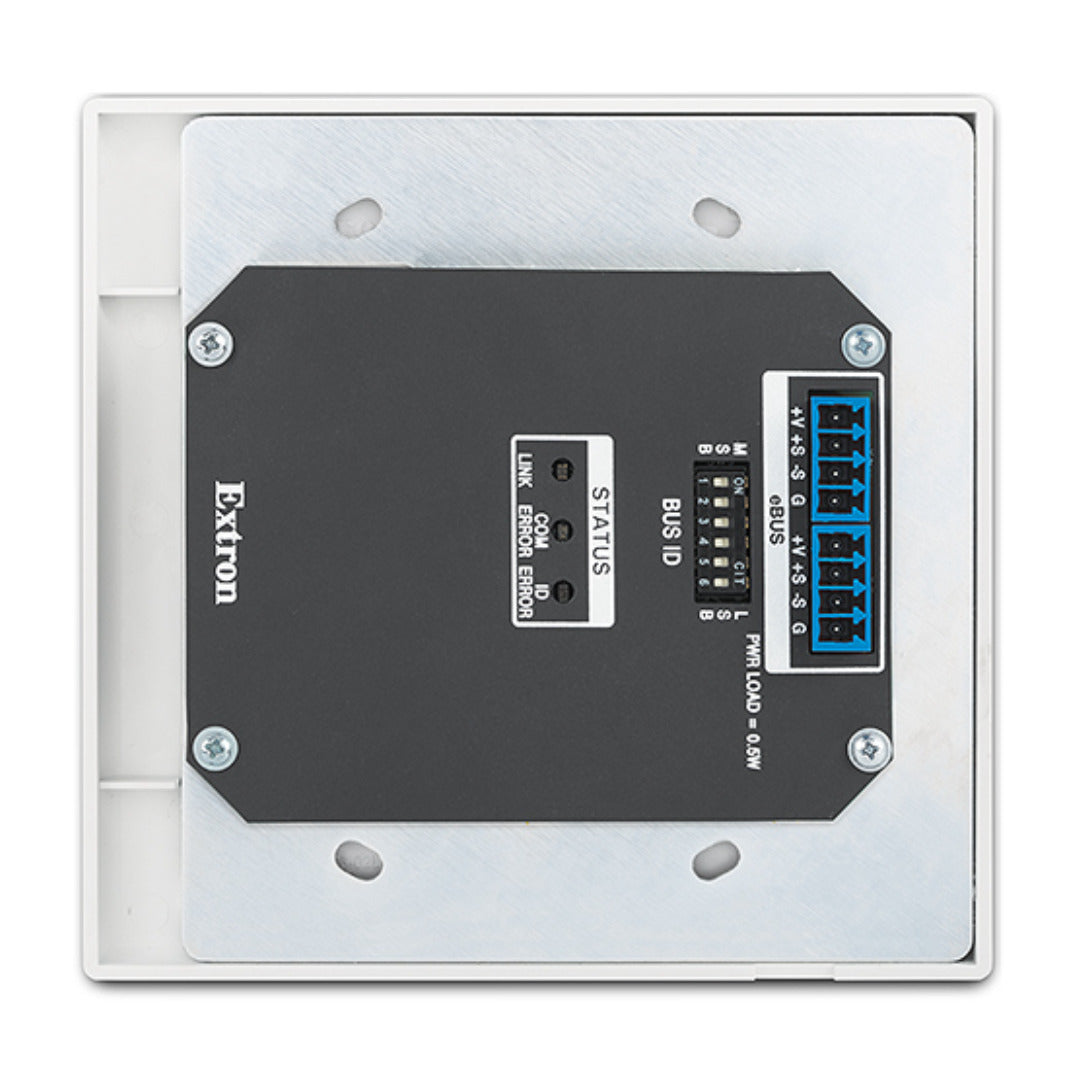

eBUS Control Ports: 2 x 3.5 mm captive screw connectors, 4 pole

eBUS Pin Configuration: +V = +12 VDC; +S = + signal; -S = - signal; G = ground

Recommended Cable Type: Extron STP20-2/1000 or STP20-2P/1000 cable

Maximum System Cable Length: 1000 feet (305 meters) sum total for the eBUS system regardless of topology; power injection may be required depending on cabling topology and primary power supply wattage

Configuration Software: Global Configurator Plus and Professional

Programming Software: Global Scripter

Control Apps: Extron Control

Utilities: Toolbelt

Power: 12 VDC, supplied by an Extron IPCP Pro series control processor or optional power supply

Power Consumption: 0.5 W

Thermal Dissipation: 1.1 BTU/hr

Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% noncondensing; operating +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% noncondensing

Cooling: Convection, no vents

Mounting: Not rack mountable; mounts in a standard US 2-gang electrical junction box or mud ring

Enclosure Type: Plastic faceplate and high-impact plastic rear enclosure

Faceplate Dimensions: 4.5 in H x 4.6 in W x 0.3 in D (11.4 cm H x 11.7 cm W x 0.8 cm D)

Device Dimensions: 2.7 in H x 3.5 in W x 0.8 in D (6.9 cm H x 8.9 cm W x 2.1 cm D), or 1.25 in D (3.2 cm) including captive screw connectors; depth excludes faceplate and buttons, and at least 1.9 in (4.7 cm) depth is required in the wall or furniture

Product Weight: 0.5 lb (0.2 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance: Safety CE, c-UL, UL; EMI/EMC CE, C-Tick, FCC Class A, ICES, VCCI Class A; complies with the appropriate requirements of RoHS and WEEE

Accessibility: Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29 U.S.C. 794d)

Product Warranty: 3 years parts and labor

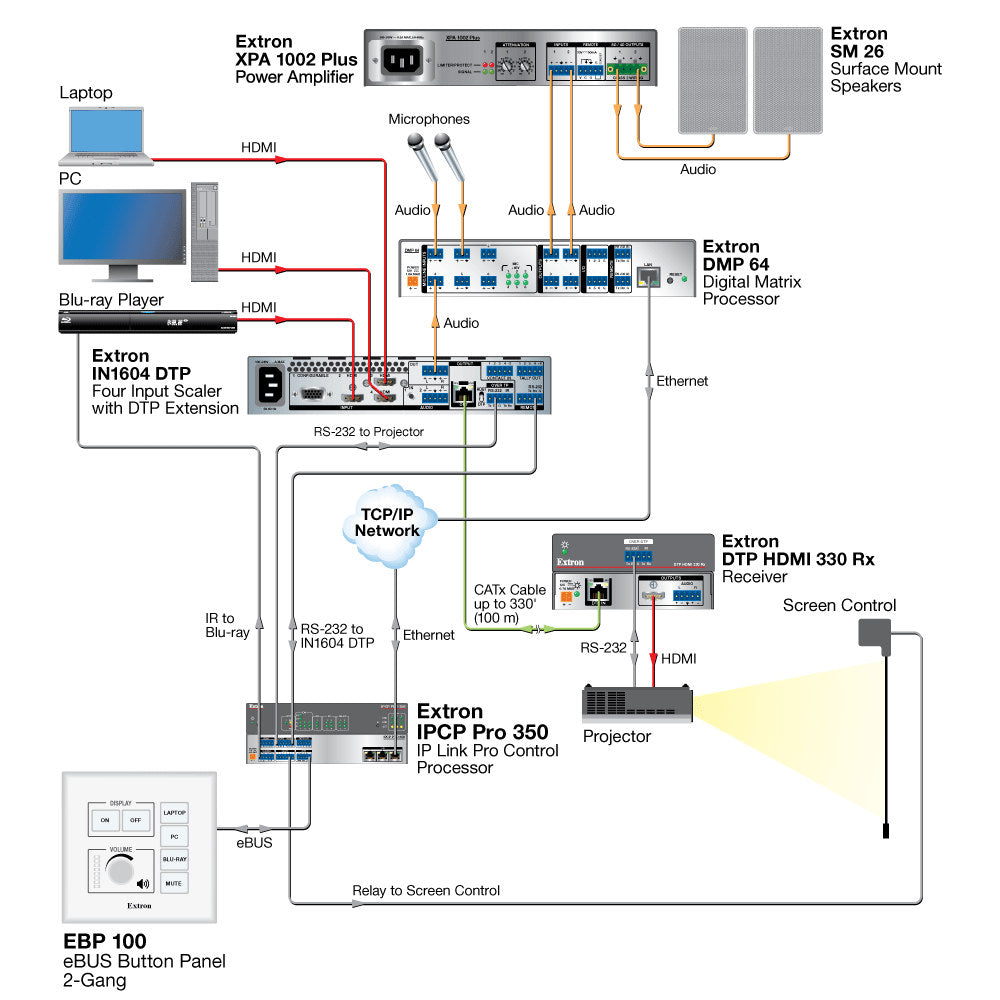

Diagram

Resources

Brochure | EBP 100 60-1388-01 | EBP 100 (ebp_100_A1.pdf)

Brochure | EBP 100 60-1388-01 | EBP 100 (EBP-100_BR_A4_SP_RevA1.pdf)

Manual | EBP 100 60-1388-01 | EBP 50, 100, and 200 Setup Guide

Manual | EBP 100 60-1388-01 | eBUS Technology Reference Guide

Specifications | EBP 100 60-1388-01 | EBP 100

Panel Drawing | EBP 100 60-1388-01 | EBP 100
